JVC VN-X235U - Megapixel Network Mini-dome Camera Quick Start Manual

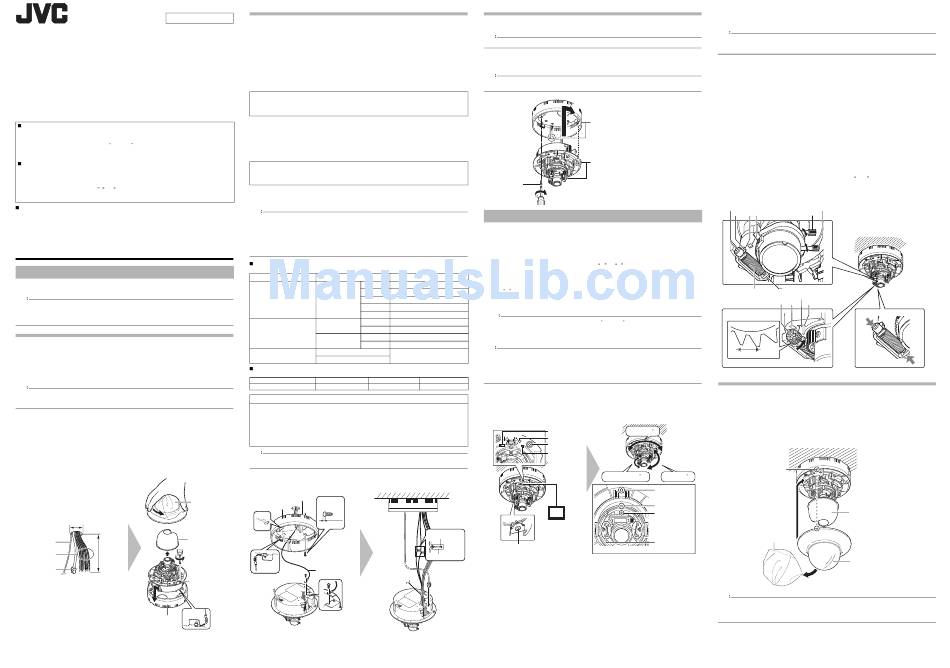

READ ME FIRST
FIXD IP DOME CAMERA
VN-V225U
FIXD MEGAPIXEL IP DOME CAMERA
VN-X235U
VN-X235U is a high definition surveillance camera that uses CCD sensors with 4 times higher resolution
than VN-V225U.
Thank you for purchasing this JVC product.
Before operating this unit, please read the instructions carefully to ensure the best possible performance.
This manual contains the basic instructions for using this unit.
Please refer to [INSTRUCTIONS (Setting)] (pdf) and [INSTRUCTIONS (Installation)] (pdf) in the CD-ROM
supplied with this product for description on the detailed usage of this unit.
For the latest information, please refer to the README file in the CD-ROM supplied with this product.
● The supplied CD-ROM includes [INSTRUCTIONS (Setting)] (pdf), [INSTRUCTIONS (Installation)]
(pdf), [API Guide] (pdf), [VSIP Guide] (pdf), [Search tool], and [White Spot Correction Tool].
How to read this READ ME FIRST
● JVC holds the copyright to this manual. Any part or all of this manual may not be reproduced without prior consent
from the company.
● Windows is a registered trademark of Microsoft Corporation in the U.S.
● Product names of other companies described in this manual are trademarks or registered trademarks of the
respective companies. Symbols such as , and are omitted in this manual.
● Design, specifications and other contents described in this manual are subject to change for improvements without
prior notice.
The latest version
Please visit V.NETWORKS web site to check the latest firmware at
http://www.jvc-victor.co.jp/english/products-e.html
(The latest firmware can be found on V.NETWORKS B download page)
Installation
Mounting the Camera
This manual describes procedures for "direct mounting to the ceiling or the wall". For details on how to
"embed the camera into the ceiling", "mount the camera with the cable pulled out from the side" and other
procedures, refer to [INSTRUCTIONS (Installation)] (pdf) in the supplied CD-ROM.
Note
● Be sure to put on protective glasses to protect your eyes from falling objects when mounting the camera
to the ceiling.
● To mount the camera using an electrical box, please consult the dealer shop from which the camera is
purchased or any nearby JVC Service Centers.
Preparation
T To mount the camera to a wall, perform the same procedures below but replace the word "ceiling" with
"wall".
1
Use the supplied template to open a hole in the ceiling (R35 mm), and pull out the
cables from the hole
Pull out the fall prevention wire, LAN cable, power cable, alarm cable, and audio cable that are attached to
the ceiling slab from the hole. (Fall prevention wire is not provided)
Note
● Take note of the length, strength, pull and material (insulation) of the fall prevention wire.
● The inner diameter of the ring section of the fall prevention wire to be mounted to the camera should be
between R3.1 mm and R5.5 mm, and the outer diameter not larger than R9 mm.
2
Turn the dome cover in the anti-clockwise direction to remove it
To prevent damage to the dome cover, a protection sheet is affixed.
3
Grasp the inner dome and remove it from the catches (x2)
4
Remove the outer casing
A
Loosen and remove the fastening screw from the camera body using a screwdriver
B
Turn the camera unit in the anti-clockwise direction to remove the outer casing
5
Remove the attached fall prevention wire
Remove the fall prevention wire that is attached to the camera unit.
2
Dome cover
protective sheet
1
R35 mm
Fall prevention wire
Inner dome
(Not supplied)
Cables (power cable,
alarm cable, audio Approx. 3
4
A
cable, etc.) 100 mm
LAN cable
Camera unit
fastening screw
4
B
5
outer casing
Cable Connection
For safety reasons, turn on the power only after all the connections are completed.
1
Align the shooting direction with the shooting direction mark (j), followed by
mounting the outer casing to the ceiling
2
Mount the supplied fall prevention wire on the camera unit to the fastening hook
3
Mount the fall prevention wire that connects the camera and the ceiling to the camera
unit
4
Connect the alarm cable
Connect the alarm cable to an external device, such as a sensor or buzzer.
LST0930-001A
Alarm cable to be used (shielded cable recommended)
● Length of 50 m or shorter
● UL1007, UL1015 or equivalent products
● AWG#22 to AWG#18 or equivalent products
5
Connect the audio cable (shielded cable recommended)
6
Connect the LAN cable
T To use the PoE power supply, connect to a PoE-compatible device and supply the power from the LAN
cable.
● Connecting to HUB
: Use a straight cable
● Connecting to a computer : Use a cross cable
LAN cable to use
● STP (shielded cable recommended)
● Length of 100 m or shorter
● Category 5 and above
7
Connect the power cable
Power can be supplied to this unit either by connecting to an AC 24 V power supply or using PoE.
6
(For details on the use of PoE A [ Connect the LAN cable])
Note
● The power cable includes cable of the same color as the alarm cable. Check properly before connecting.
● Make sure that power is supplied using only one of the above methods at any one time. Connecting
simultaneously using the power cable and to PoE via a LAN cable may cause the camera to break down
or malfunction.
● By default the IP addresses of all the cameras are set to 192.168.0.2. If the power of multiple cameras
within the same LAN environment are turned on at the same time, the IP addresses of the cameras
overlap, thus preventing proper access. As such, make sure to turn on the power of the cameras one by
one and set the IP addresses such that there is no overlapping.
Cable Types
Type Color
Alarm cable Black Red
(Shielded cable)
Brown
Orange
Yellow
Black
Audio cable Pink White
(Shielded cable)
Yellow
Black White
(Shielded cable)
Yellow
Power cable Red (Unshielded cable)
Black (Unshielded cable)
Power cable: Connection distance when using a 2-core VVF cable (reference values)
Conductor diameter (mm) R1.0 and above R1.6 and above
Maximum connection distance (m) 130 340
Caution
The rated power of this product is AC 24 V, 50 Hz/60 Hz. Make sure to use it with the correct voltage.
Be sure to use an AC 24 V supply that is insulated from the primary power source.
Supplying a power beyond the rated value may result in failures, smoke or fire. If the camera breaks down,
turn off the power and contact our service center immediately.
When a power beyond the rated value is supplied, the internal components may be damaged even if no
abnormality is found on the appearance and operation of the camera. Contact our Service Center
immediately to arrange for an inspection (charged separately).
Note
● For cables that are not used, be sure to wrap the ends individually with insulating tape.
● For safety reasons, turn on the power only after all the connections are completed.
Outer casing
Align with shooting
mounting
direction screw
Below 2 mm
1
2
Fall prevention wire
(Not supplied)
Attach to fastening
hook
3
Mounting the Camera Unit
1
Insert the hooks (x2) of the outer casing into the holes (x2) of the camera unit
Note
● Pay attention to prevent cables from being caught by the outer casing.
2
Turn the camera unit in the clockwise direction
3
Fasten the camera unit by tightening the fastening screw on it
Note
● The camera will not be secured just by turning it in the clockwise direction. Be sure to fasten it with the
camera unit fastening screw.
Camera unit
fastening screw
3
Adjusting Images
This section describes procedures for adjusting the video image while checking the actual image on the
monitor.
Before touching the body of the camera, make sure that you touch the metal surface of the [MONITOR]
terminal to discharge any static electricity from your body. The static electricity may cause the camera to
malfunction.
1
Connect the [MONITOR] terminal to the test monitor
2
Set the [MONITOR OUT] selection switch to N or P , then turn on the power or
press the [RESET] button shortly (less than 2 seconds)
Signal name
● The camera reboots. (approximately 1 minute)
Alarm input 1 ● During rebooting, the [STATUS] indicator lights up in orange.
● Set to N when connecting to an NTSC monitor, and set to P when connecting to a PAL monitor.
Alarm input 2
3
Adjust the shooting direction of the camera
Alarm output 1
Alarm output 2
Adjust the pan, tilt and rotation controls of the cameras to face the lens towards the subject.
GND
Memo
● Rotate the lens in the pan and rotation directions ±175 and ±100 respectively from the positions
Microphone input
aligned with the camera's shooting direction mark, pan center mark and rotation center mark. Be sure to
GND
hold the rotation control and adjust the rotation without holding the lens section.
● After adjusting the field angle, tighten the tilt fastening screw to secure the camera so that its field angle
Line output
does not go out of alignment.
GND
Note
AC 24 V Power Supply
● Moving the camera when it has exceeded the adjustment range may cause its performance to
deteriorate.
● As the tilt and rotation range of this unit is wide, part of this unit may be reflected in the shooting screen
depending on the field angle and direction.
● Do not hold the lens section when adjusting the camera direction. The lens section may be damaged if
you apply force to it.
R2.0 and above
540
4
Adjust the image size
Loosen the fastening screw of the zoom adjustment ring, move the ring to the left and right to adjust the
image size. After adjustment is complete, move the fastening screw toward the direction of the lens
(direction of the subject), and tighten accordingly.
2 , 6
[MONITOR OUT] selection switch
[RESET] button
[MONITOR] terminal
[STATUS] indicator
1
75 K terminated
4, 5, 7 Test monitor
Solder welding or
crimping
Tilt fastening screw
Wind the insulation tape
6
5
Roughly adjust the focus
A
Lift the focus adjust gear knob, and insert the catch into B in the diagram.
● The gear is disengaged.
Note
● To prevent the gear shaft from breaking when the gear is opened too far out from B, remove the gear
shaft from the bearing (C in diagram). In this case, re-insert the shaft back into the bearing and return it
to the original position before using.
B
Loosen the fastening screw of the zoom adjustment ring, move it to the left and right to adjust the focus.
6
Fine adjust the focus
A
Press the [RESET] button for at least 2 seconds but less than 5 seconds.
● The camera enters the focus adjust mode and the [STATUS] indicator blinks in green and orange
alternately.
● The image is sharpened with the opening of the aperture.
● The center of the image is enlarged. (VN-X235U only)
● After adjusting the focus, press the [RESET] button for at least 2 seconds but less than 5 seconds to
2
cancel the focus adjust mode.
B
Shoot the subject.
C
Fine adjust the focus.
Hooks (x2)
● Return the catch to A in the diagram, and then rotate the focus adjust gear knob to adjust the focus to
the optimum position.
D
Rotate the focus adjust gear knob about one base pitch in the direction of the arrow in the diagram.
● This is to correct the focus shift when mounting the dome cover.
1
E Remove the protective sheet, hold the dome cover over the lens and check the focus. After checking,
replace the protective sheet on the dome cover.
7
Holes (x2) Hold and press the focus adjust gear between your fingers in the direction of the
arrows in the diagram, and tighten the fastening screw of the focus adjustment ring
8
After setting the [MONITOR OUT] selection switch to OFF , press the [RESET] button
shortly (less than 2 seconds)
● The camera restarts, and the focus assist mode is released. (approximately 1 minute)
Knob
Catch B
5
Focus adjust gear
6
One base pitch
Mounting the Dome Cover
After setting is complete, mount the dome cover.
1
Mount the inner dome to the catches (x2)
2
Mount the dome cover
A
Remove and clean any dust or dirt on the dome cover.
3
B
Align the camera with the position alignment mark on the dome cover, and mount the dome cover.
Pan : ±175
3
Remove the protective sheet
Position alignment mark
Tilt : ±80
Rotation : ±100
Shooting direction
mark
Pan center mark
Rotation center
mark
Rotation control
(x2)
Note
● When the cover is removed again after mounting the dome cover, check the field angle and re-adjust the
focus and field angle if necessary.
● Check to ensure that the dome cover is firmly mounted. The cover may fall off if it is not properly
mounted.
K
Continued on reverse side
Focus adjustment ring
A Zoom adjustment ring
C
Catch
Knob B A
7
2
Inner dome
1
Protective sheet
Dome cover
3
