VN-V686WPBU
Direct Drive Motor for Extra Precision and Silence
• Super Accurate Positioning (±0.03° precision)
• Super Fast & Super Slow Pan/Tilt (400°/sec to 0.04°/sec
variable)
• Super Silent Operation (Ideal for hospitals, libraries, and
museums)
Day/Night Function with IR Cut Filter
Automatic switching between day and night modes for reliable round-the-
clock surveillance
Effective Backlight Compensation
Easy Wide-D Function provides clear images even in backlit situations
Progressive Output Capability
Can output clear, smooth images without jaggy even for moving objects

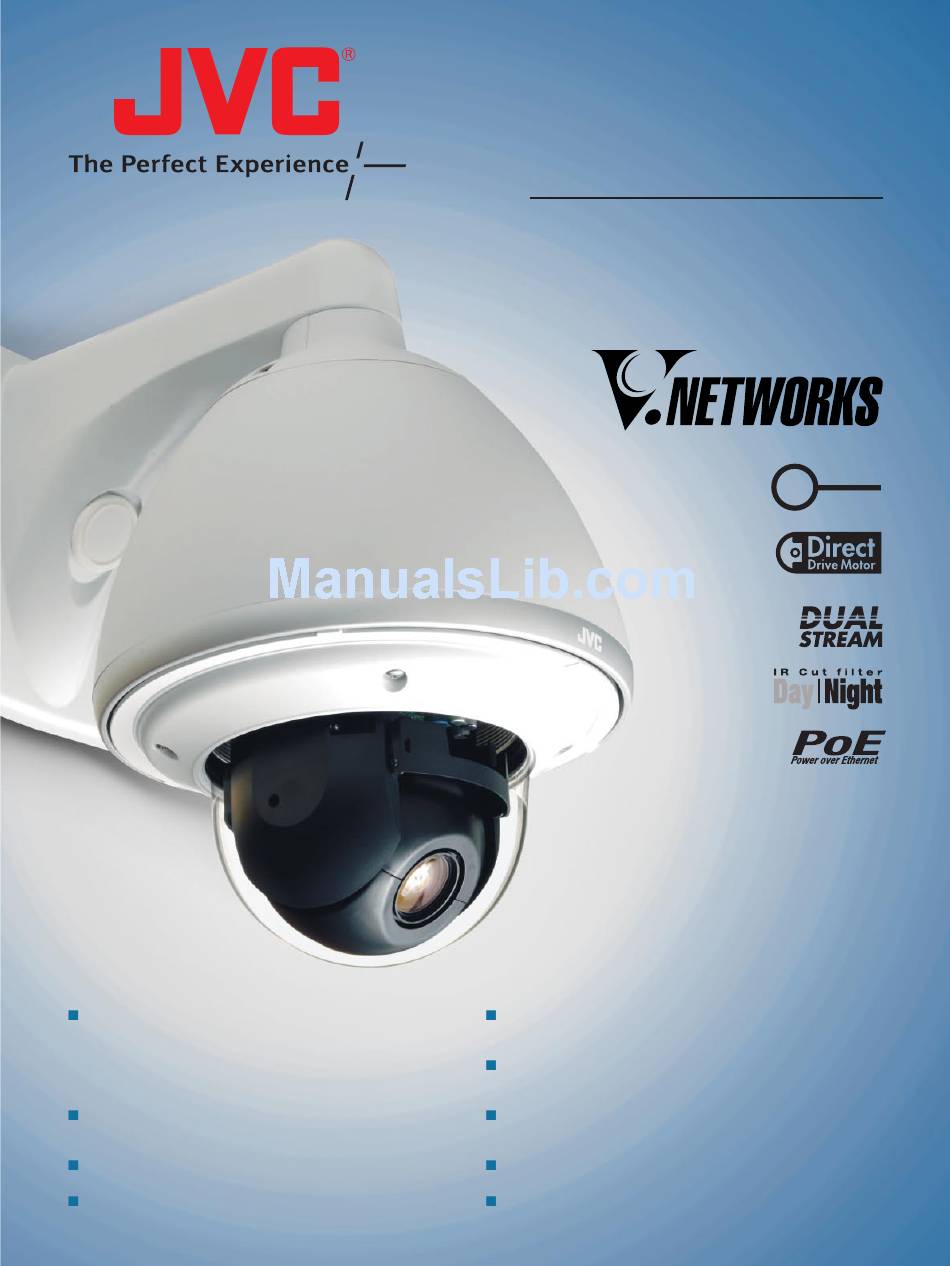

PTZ NETWORK DOME CAMERA
VN-V685U/V686BU
OUTDOOR PTZ NETWORK DOME CAMERA
VN-V686WPBU
Dual Stream Network Cameras with 36x/27x Optical Zoom
and Accurate Direct Drive Motor Mechanism
MPEG-4/Motion JPEG Full-Frame Dual Stream
Simultaneous distribution of MPEG-4 and Motion JPEG VGA images
at full frame rate (30fps for each stream)
Super LoLux
TM
Sensitivity
0.04 lx at B&W mode (25 % video level, F1.6, AGC SUPER)
0.5 lx at color mode (25 % video level, F1.6, AGC SUPER)
PoE for Saving Installation and Cable Costs
Built-in PoE (Power over Ethernet) allows the camera to be activated
through a LAN cable connection.
Quick and Easy Installation
One-touch lock mechanism for quick and easy installation and maintenance
Dust- and Waterproof Design (VN-V686WPBU)
P66-standard robust design suitable for outdoor monitoring system
+
36x
/
27x
Zoom
F u l l - F r a m e
Advertisement
Related Manuals for JVC VN-V685U
Summary of Contents for JVC VN-V685U
- Page 1 Easy Wide-D Function provides clear images even in backlit situations Progressive Output Capability Can output clear, smooth images without jaggy even for moving objects PTZ NETWORK DOME CAMERA VN-V685U/V686BU OUTDOOR PTZ NETWORK DOME CAMERA VN-V686WPBU Dual Stream Network Cameras with 36x/27x Optical Zoom...
- Page 2 All the Precision and Quality to Capture the Crucial Moment JVC’s new Network Camera offers a Direct Drive Motor and Full- Frame Dual Stream Capability for an Advanced Monitoring System with Maximum Reliability and Versatility. VN-V686WPBU External Dome Design Made to IP66 standards, the housing provides complete protection from the elements but still provides crisp, clear images of its surroundings.
- Page 3 See what’s good about Direct Drive Motor Mechanism! Super Fast (400°/sec) & Super Slow (0.04°/sec) Pan/Tilt Performance With a maximum 400°/sec. movement, you won’t miss a crucial scene. Even when pan/tilting manually, the mechanism is very responsive allowing stress-free joystick operation. Furthermore, extremely slow movement of 0.04°/sec.
- Page 4 36x optical zoom to provide incredible magnification with full optical quality. It is powerful enough to allow identification of a face or a license plate located far away. (27x zoom for the VN-V685U) To remove, press the Lock buttons located on both...
-
Page 5: Image Stabilizer
Without Privacy mask Proven Reliability with JVC Standard Assurance of reliability comes not only from JVC’s long years of experience and solid track record, but also by inspecting every single product at our QC facility based on our strict quality standards. -
Page 6: Specifications
5.5kg (12.2lbs) Copyright © 2008, Victor Company of Japan, Limited. All Rights Reserved. Design and specifications subject to change without notice. “JVC” is the trademark or registered trademark of Victor Company of Japan, Limited. Unit: mm Optional Accessories For VN-V685U/V686BU •...
