Desa Comfort Glow CCL3924NR Owner's Operation And Installation Manual
Premium aged split oak and yellow flame unvented (vent-free) natural gas log heaters
Hide thumbs
Also See for Comfort Glow CCL3924NR:
- Owner's operation and installation manual (36 pages) ,
- Owner's operation and installation manual (36 pages) ,
- Owner's operation and installation manual (8 pages)
Table of Contents
Advertisement
Quick Links
PREMIUM AGED SPLIT OAK AND
YELLOW FLAME UNVENTED (VENT-FREE)
NATURAL GAS LOG HEATERS
Also Design-Certified As Vented Decorative Appliances When
Not Used With Hand-Held Thermostat Remote
OWNER'S OPERATION AND INSTALLATION MANUAL
CGD3924NRA
CCL3924NR
CCL3930NR
24" and 30"
Remote Ready
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in
which it is installed. Provisions for adequate combustion and ventilation air must be
provided. Refer to Air for Combustion and Ventilation section on page 4 of this manual.
This appliance may be installed in an aftermarket,* manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

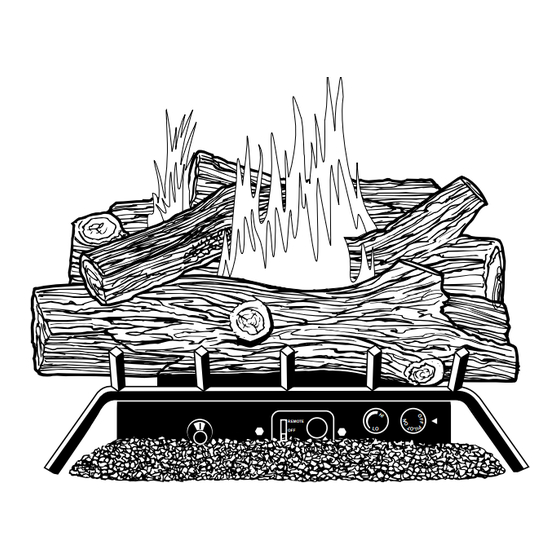

(Yellow Flame Model Shown)
Save this manual for future reference.
WARNING: Improper installation, ad-
justment, alteration, service, or mainte-
nance can cause injury or property dam-
age. Refer to this manual for correct
installation and operational procedures.
For assistance or additional informa-
tion consult a qualified installer, ser-
vice agency, or the gas supplier.
WARNING: This appliance is for instal-
lation only in a solid-fuel burning ma-
sonry or UL127 factory-built fireplace,
or in an approved ventless firebox. It is
design-certified for these installations
in accordance with ANS Z21.11.2.
Exception: Do not install this appli-
ance in a factory-built fireplace that
includes instructions stating it has not
been tested or should not be used with
unvented gas logs.
Advertisement
Table of Contents
Related Manuals for Desa Comfort Glow CCL3924NR
Summary of Contents for Desa Comfort Glow CCL3924NR
- Page 1 NATURAL GAS LOG HEATERS Also Design-Certified As Vented Decorative Appliances When Not Used With Hand-Held Thermostat Remote OWNER’S OPERATION AND INSTALLATION MANUAL CGD3924NRA CCL3924NR CCL3930NR 24" and 30" Remote Ready WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.
-
Page 2: Safety Information
UNVENTED NATURAL GAS LOG HEATER SAFETY INFORMATION WARNINGS IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, oper- ate, or service this heater. Im- proper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. -
Page 3: Local Codes
SAFETY INFORMATION Continued 14. Turn heater off and let cool before ser- vicing, installing, or repairing. Make sure the remote selector switch is in the OFF position. Only a qualified service person should install, service, or repair heater. 15. Make sure the remote selector switch is in the OFF position when you are away from home for long periods of time. -
Page 4: Remote Control Accessories
UNVENTED NATURAL GAS LOG HEATER REMOTE CONTROL ACCESSORIES There are two optional remote controls that can be purchased separately for this log heater: • hand-held ON/OFF remote • hand-held thermostat remote See Accessories, page 27. The hand-held thermostat may not be used where vented decorative listing is required. -
Page 5: Determining Fresh-Air Flow For Heater Location
AIR FOR COMBUSTION AND VENTILATION Continued DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms. - Page 6 UNVENTED NATURAL GAS LOG HEATER AIR FOR COMBUSTION AND VENTILATION Continued VENTILATION AIR Ventilation Air From Inside Building This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must pro- vide two permanent openings: one within 12"...
-
Page 7: Installation
INSTALLATION NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your pri- mary heating system. Do not in- stall this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. - Page 8 UNVENTED NATURAL GAS LOG HEATER INSTALLATION Continued NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, noncombustible material above fireplace opening is not needed.
-
Page 9: Mantel Clearances
INSTALLATION Continued MANTEL CLEARANCES In addition to meeting noncombustible mate- rial clearances, you must also meet required clearances between fireplace opening and mantel shelf. If you do not meet the clear- ances listed below, you will need a hood. Determining Minimum Mantel Clearances If you meet minimum clearance between mantel shelf and top of fireplace opening, a... -
Page 10: Installing Damper Clamp Accessory For Vented Operation
UNVENTED NATURAL GAS LOG HEATER INSTALLATION Continued INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION Note: When used as a vented heater, appli- ance must be installed only in a solid-fuel burning fireplace with a working flue and constructed of noncombustible material. If your heater is a manually-controlled model, you may use this heater as a vented product. -
Page 11: Connecting To Gas Supply
INSTALLATION Continued 7. Attach base assembly to fireplace floor using two masonry screws (in hardware package) (see Figure 12). 8. Connect to gas supply. See Connect- ing To Gas Supply. Flexible Gas Hose (if allowed by local codes) Fitting Figure 11 - Attaching Flexible Gas Hose to Heater Masonry Screw Mounting... -
Page 12: Checking Gas Connections
UNVENTED NATURAL GAS LOG HEATER INSTALLATION Continued CHECKING GAS CONNECTIONS WARNING: Test all gas pip- ing and connections for leaks after installing or servicing. Cor- rect all leaks at once. WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. -
Page 13: Installing Logs
INSTALLATION Continued INSTALLING WIRELESS REMOTE CONTROL ACCESSORY Two 9-volt alkaline batteries (not included) are required to operate this heater with the wireless hand-held remote control set. One battery must be installed in the receiver and one in the hand-held remote control unit. Note: Only use alkaline batteries. - Page 14 Notches Log (#4) Rectangular Knobs Figure 25 - Installing Crossover Log (#4) INSTALLING LOGS (CCL3924NR AND CCL3930NR) WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.
-
Page 15: Lighting Instructions
INSTALLATION Continued Pegs Log #2 Front Log (#1) Figure 31 - Installing Crossover Log (#6) (CCL3930NR Shown) Holes Crossover Log (#6) Middle Log (#2) Pegs Figure 32 - Installing Crossover Log (#7) to Model CCL3930NR Only OPERATING HEATER FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not fol-... -
Page 16: To Turn Off Gas To Appliance
UNVENTED NATURAL GAS LOG HEATER OPERATING HEATER Continued 6. Press in and turn control knob coun- terclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 33, page 15). Note: You may be running this heater for the first time after hook- ing up to gas supply. -
Page 17: Inspecting Burners
OPERATING HEATER Continued CGHRCTA Series Operation: 2b. Press the AUTO/ON/OFF button on the hand-held remote control (see Figure 36). The lights to the left of the button will show AUTO, ON, or OFF. • In the ON mode, the burners will ignite. -
Page 18: Cleaning And Maintenance
If so, contact your local natural gas supplier. TECHNICAL SERVICE You may have further questions about in- stallation, operation, or troubleshooting. If so, contact DESA International’s Techni- cal Service Department at 1-800-DESA LOG (1-800-337-2564). You can also visit DESA International’s technical service site www.desatech.com. -
Page 19: Troubleshooting
TROUBLESHOOTING Note: For additional help, visit DESA International’s technical service web site at www.desatech.com. Note: All troubleshooting items are listed in order of operation. OBSERVED PROBLEM When ignitor button is pressed, there is no spark at ODS/pilot When ignitor button is pressed, there is... - Page 20 UNVENTED NATURAL GAS LOG HEATER TROUBLESHOOTING Continued OBSERVED PROBLEM Burner does light after ODS/pilot is lit Delayed ignition burner Burner backfiring during combustion Slight smoke or odor during initial operation Moisture/condensation noticed on windows Heater produces a whistling noise when burner is lit White powder residue forming within burner box or on adjacent walls or furniture...
- Page 21 TROUBLESHOOTING Continued WARNING: If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
-
Page 22: Illustrated Parts Breakdown
UNVENTED NATURAL GAS LOG HEATER ILLUSTRATED PARTS BREAKDOWN CGD3924NRA For more information, visit www.desatech.com 107553... -
Page 23: Parts List
PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. CGD3924NRA 107553 PART NUMBER DESCRIPTION 103008-01 Back Log (#1) 103009-01 Middle Log (#2) 103010-01 Front Log (#3) 103011-01... - Page 24 UNVENTED NATURAL GAS LOG HEATER ILLUSTRATED PARTS BREAKDOWN CCL3924NR CCL3930NR For more information, visit www.desatech.com 107553...
- Page 25 PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. CCL3924NR CCL3930NR 107553 CCL3924NR CCL3930NR PART NUMBER PART NUMBER 105923-03 105923-02 105924-03 105924-02...
-
Page 26: Replacement Parts
PARTS NOT UNDER WARRANTY Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central or call DESA International’s Parts Department at 1-800-972-7879 for referral information. When calling DESA International, have ready •... -
Page 27: Specifications
Purchase these fireplace accessories from your local dealer. If they can not supply these accessories, either contact your near- est Parts Central (see page 26) or call DESA International’s Sales Department at 1-800- 972-7879 for referral information. You can also write to the address listed on the back page of this manual. -
Page 28: Warranty Information
COMFORT GLOW VENT-FREE NATURAL GAS LOG HEATERS DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions.
