Quick Start

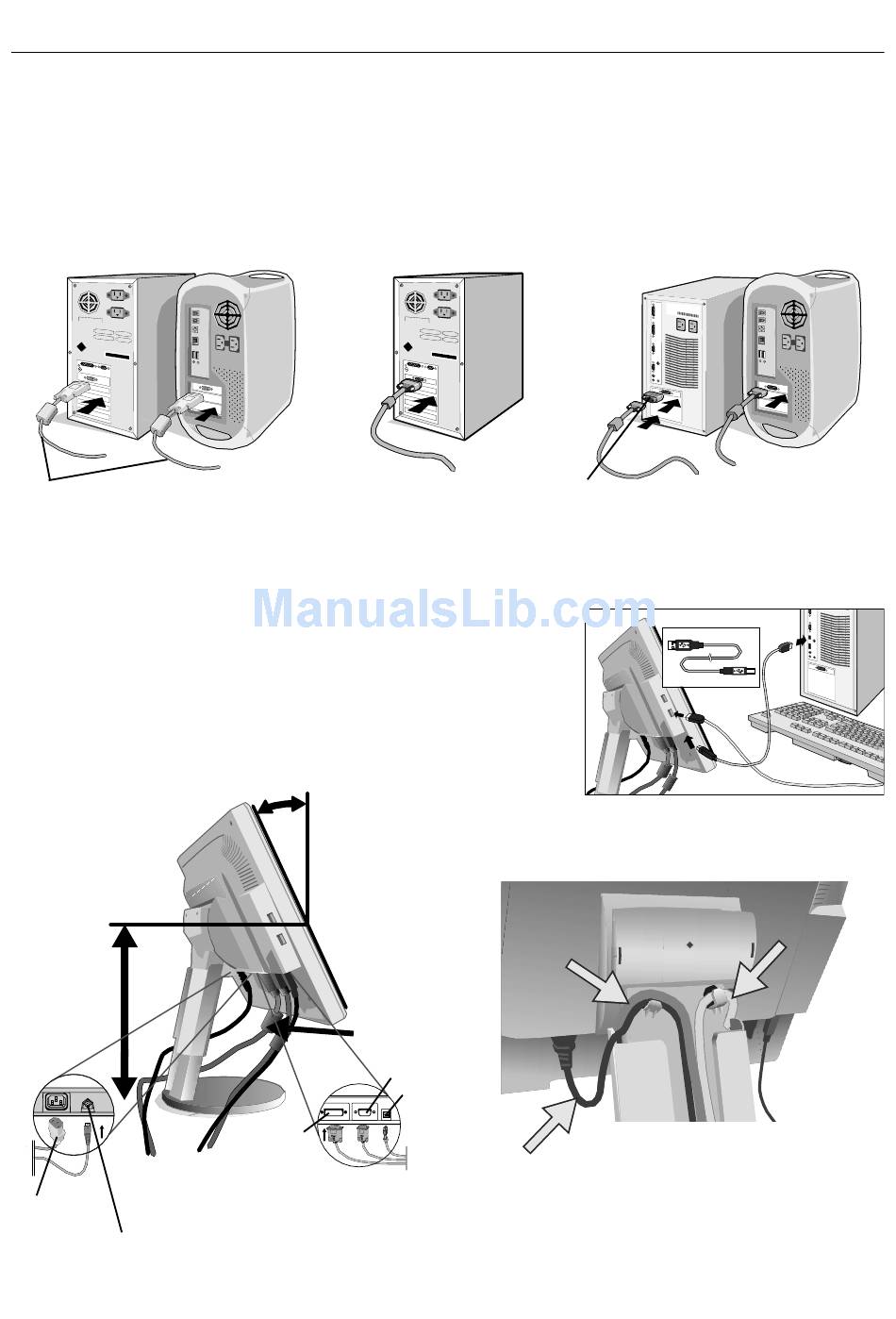

To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable (not included) to the connector of the display
card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to
the Macintosh cable adapter (Figure B.1). Tighten all screws.
DVI signal cable
Figure A.1
(not included)
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position (Figure C.1).
4. Connect all cables to the appropriate connectors (Figure C.1). Using the USB
cable, connect the B type connector to the USB upstream port on the bottom
side of the monitor and A type connector to the downstream port on the
computer (Figure B.2). If you can use the cord from the USB device, use one
of the downstream ports on the side of the monitor.
5. Place power cord into the specific hooks indicated in Figure C.2.
6. Place the D-Sub signal cable into the specific hooks indicated in Figure C.2.
7. Place the DVI cable into the specific hooks indicated in Figure C.2.
Highest
Stand
Position
Power cord
DC-OUT
NEC optional product attachment.
Do not use this connector unless specified.
30˚ Tilt
Input1 (DVI)
Figure C.1
Figure A.2
DVI Cable
DVI Cable
Input2 (D-Sub)
USB
Power Cord
English-4
Macintosh
Figure B.1
Cable Adapter
(not included)
A Type
Figure B.2
Figure C.2
B Type
D-Sub Cable
