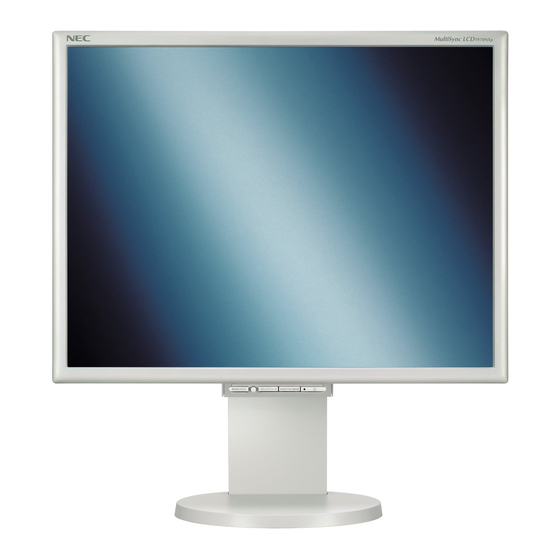

MultiSync LCD1970VX
MultiSync LCD1970NX
MultiSync LCD1970NXp
User's Manual

Summary of Contents

  • Page 1

    MultiSync LCD1970VX MultiSync LCD1970NX MultiSync LCD1970NXp User’s Manual...

  • Page 2: Table Of Contents

    Index Warning, Caution ... English-1 Declaration ... English-1 Canadian Department of Communications Compliance Statement ... English-2 Declaration of Conformity ... English-2 Contents ... English-3 Quick Start ... English-4 Controls ... English-8 Recommended use ...English-10 Specifications for LCD1970VX ... English-12 Specifications for LCD1970NX ... English-13 Specifications for LCD1970NXp ...English-14 Features ...English-15 Troubleshooting ...English-16...

  • Page 3: Warning, Caution, Declaration

    NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland, Sweden, Spain, Denmark, Germany, Norway and Finland.

  • Page 4: Canadian Department Of Communications Compliance Statement, Declaration Of Conformity

    Tel. No.: Type of Product: Equipment Classification: Model: Non shield type, 3-conductor 2.0 m U.S.A NEC Display Solutions of America, Inc. 500 Park Blvd, Suite 1100 Itasca, Illinois 60143 (630) 467-3000 Display Monitor Class B Peripheral MultiSync LCD1970VX (L194RK)/MultiSync LCD1970NX (L194RH)/...

  • Page 5: Contents

    Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD monitor with tilt/swivel/height adjust stand • Power Cord • Cable cover • Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male) •...

  • Page 6: Quick Start

    6. Place the D-Sub into the specific hooks indicated in Figure C.2. Highest Stand Position Figure C.1 DC-OUT (NX/NXp only) NEC optional product attachment. Do not use this connector unless specified. Figure A.2 30˚ Tilt Power Cord DVI Cable (not included)

  • Page 7

    7. Place the DVI cable into the specific hooks indicated in Figure C.3. 8. Make sure all cables are resting flat against the stand (Figure C.3). 9. Hold the all cables firmly and place the cable cover onto the stand (Figure D.1).

  • Page 8

    Raise and Lower Monitor Screen The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1). NOTE: Handle with care when raising or lowering the monitor screen. Tilt and Swivel Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

  • Page 9

    5. Lift up the stand to unlatch the upper hooks and remove the stand (Figure S.3). 6. Remove the 2 screws on the top of the monitor (Figure S.4). The monitor is now ready for mounting in an alternate manner. 7.

  • Page 10: Controls

    Controls OSM (On-Screen Manager) control buttons on the front of the monitor function as follows: To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up). To change signal input, press the SELECT button. To change DV MODE, press the RESET button. NOTE: OSM must be closed in order to change signal input.

  • Page 11

    Colour Control System Colour Control System: Six colour presets select the desired colour setting (sRGB and NATIVE colour presets are standard and cannot be changed). R,G,B: Increases or decreases Red, Green or Blue colour depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the bars.

  • Page 12: Recommended Use

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

  • Page 13

    CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

  • Page 14: Specifications For Lcd1970vx

    1024 x 768* at 60 Hz to 75 Hz 1152 x 870* at 75 Hz 1280 x 1024 at 60 Hz to 75 Hz...NEC DISPLAY SOLUTIONS cites AC 100-240V ~ 50/60Hz 36W (typ) 0.65-0.35A 412.5 mm (W) x 386.5-496.5 mm (H) x 220.0 mm (D) 16.2 inches (W) x 15.2-19.5 inches (H) x 8.7 inches (D)

  • Page 15: Specifications For Lcd1970nx

    1024 x 768* at 60 Hz to 75 Hz 1152 x 870* at 75 Hz 1280 x 1024 at 60 Hz to 75 Hz...NEC DISPLAY SOLUTIONS cites AC 100-240V ~ 50/60Hz 38W (typ) 1.2-0.6A 412.5 mm (W) x 386.5-496.5 mm (H) x 220.0 mm (D) 16.2 inches (W) x 15.2-19.5 inches (H) x 8.7 inches (D)

  • Page 16: Specifications For Lcd1970nxp

    1024 x 768* at 60 Hz to 75 Hz 1152 x 870* at 75 Hz 1280 x 1024 at 60 Hz to 75 Hz...NEC DISPLAY SOLUTIONS cites AC 100-240V ~ 50/60Hz 38W (typ) 1.2-0.6A 412.5 mm (W) x 386.5-496.5 mm (H) x 220.0 mm (D) 16.2 inches (W) x 15.2-19.5 inches (H) x 8.7 inches (D)

  • Page 17: Features

    Features Thin-frame design creates more desktop space for you to work and play, while the flat screen’s crisp, bright images and crystal- clear text deliver a comfortable viewing experience. No Touch Auto Adjust automatically adjusts your optimal image settings upon initial power-on. Colour Control System allows you to change between six colour settings on your display to match your personal preference.

  • Page 18: Troubleshooting

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

  • Page 19: Tco'03

    TCO’03 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...

  • Page 20: Manufacturer's Recycling And Energy Information

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
