Summary of Contents for FUTABA SKYSPORT 2FR
- Page 1 2/3 CHANNELS FOR AIRCRAFT 2FR/3FR 1M23N09002...
- Page 2 -No part of this manual may be reproduced in any form without prior permission. -The contents of this manual are subject to change without prior notice. -This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifications should be made.
-
Page 3: Table Of Contents
ABLE OF ONTENTS ................... 2 AFETY MEANING OF SPECIAL MARKINGS ................2 PRECAUTIONS DURING FLIGHT ..................2 NICD BATTERY CHARGING PRECAUTIONS ............... 4 STORAGE AND DISPOSAL PRECAUTIONS ..............4 OTHER PRECAUTIONS ..................... 5 ................... 6 EFORE SET CONTENTS ........................6 NAME AND HANDLING OF EACH PART .............. -
Page 4: For Safety
AFETY To ensure safe use, observe the following precautions. EANING OF PECIAL ARKINGS Pay special attention to the safety at the parts of this manual that are indicated by the following marks. Mark Meaning Procedures which may lead to a dangerous condition and cause death or serious injury to the user if not carried out properly. - Page 5 Always test the digital proportional R/C Extend the antenna to its set before use. full length. Any abnormality in the digital proportional R/C set, If the antenna is or model, may cause a crash. collapsed, the ef- Extend to fective range of full length *Before starting the engine, check that the the radiowaves...
-
Page 6: Nicd Battery Charging Precautions
I-CD ATTERY HARGING RECAUTIONS (If using a Ni-cd battery) Charge the digital proportional R/C nicd battery with the special charger, or digi- tal proportional R/C quick charger, sold Always charge the nicd separately. battery before each flight. Overcharging may cause burns, Use the fire, injury, blindness, etc. -
Page 7: Other Precautions
Do not get fuel, waste oil, battery, and other optional parts. etc. on plastic parts. Futaba is not responsible for damage, etc. caused by the use of parts other than Genuine Futaba The plastic may melt and fail to parts. Use the parts de- function. -
Page 8: Before Use

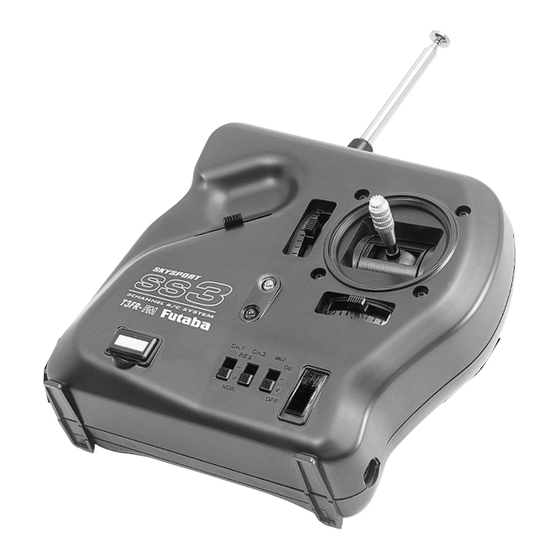

EFORE ONTENTS After opening the carton, first check if the following items are provided. The set contents depend on the type of set. (AM) (AM) (FM) T2FR-AM T3FR-AM T3FR-FM Transmitter (*1) R132JE Receiver R114H R114F S3003 (x2) S3003 (x2) S3003 (x2) S3106 (x2) Servo S3106 (x2) Receiver... - Page 9 Antenna Channel 2 stick Channel 1 stick Channel 3 lever Channel 2 trim lever (T3FR only) Channel 1 trim lever Battery level indicator Two LED display to indicate battery voltage level. If the Red LED flashes, replace batteries. Power switch In the upper position, the power is Servo reversing switches (CH.1, CH.2) turned on.
- Page 10 RECEIVER R132JE Output / Battery connector "CH.2": Channel 2 connector Antenna "CH.1": Channel 1 connector "BATT": Battery connector Crystal Crystal R114H Output / battery connector "B": Battery connector "1": Channel 1 connector "2": Channel 2 connector "3": Channel 3 connector Antenna "4": (Channel 4 connector) R114F...
-
Page 11: Transmitter Operation And Movement Of Each Servo
(high side), the motor turns. Adaptation for some speed controls so that the direction of operation is opposite (i.e. MC114, MC117): •Request the adaptation to the Futaba Service Center. MIXING OPERATION (when MIX function is turned on) This mixing is used with V-tail aircraft, delta wings, etc. -
Page 12: Installation And Adjustment
NSTALLATION AND DJUSTMENT This section describes the installation method and adjustment method after installa- tion when installing the receiver, servos, etc. to the plane. ONNECTIONS Connection example is shown below. - Page 13 CONNECTOR CONNECTION SERVO THROW Insert the receiver, servo, and Operate each servo horn over battery connectors fully and its full stroke and adjust so that firmly. the pushrod does not bind or is not too loose. If vibration, etc. causes a connector to work loose during flight, the plane may Unreasonable force applied to the servo crash.
-
Page 14: Adjustments
DJUSTMENTS The operating direction, neutral position, and steering angle of each servo are adjusted. The basic linkage and adjustments of the fuselage conform to the fuse- lage design drawings and kit instruction manual. Be sure that the center of gravity is at the prescribed position. ADJUSTMENT PROCEDURE Before making any ad- justments, set the chan-... -
Page 15: Using Other Functions
SING THER UNCTIONS ON-SLIP DJUSTABLE EVER The length of the stick lever head can be adjusted. Set the stick to the most comfortable length and lock the lever heads by turning Unlock lever heads A and B by turning them in the opposite direc- them in the arrow directions. -
Page 16: Reference
EFERENCE ATINGS *Specifications and ratings are subject to change without prior notice. T2FR/T3FR R114F TRANSMITTER RECEIVER (1 stick, 2/3 channels) (4 channels, FM micro receiver) •Transmitting frequency: 27, 35, 40, 41, •Receiving frequency: 27, 29, 35, 40, 41, 72 MHz 72 MHz •Modulation method: AM or FM •Intermediate frequency: 455kHz... -
Page 17: Troubleshooting
If your digital proportional R/C set does not operate, its range is short, it intermit- tently stops operating, or it operates erroneously, take the action shown in the table below. If this does not correct the trouble, please contact a Futaba dealer. Check point... -
Page 18: Glossary
Means up elevator. Direction in which the trailing edge of the elevator is pointing up. Proportional Because today's radio control sets control FUTABA CORPORATION Makuhari Techno Garden Bldg., B6F 1-3 Nakase, Mihama-ku, Chiba 261-8555, Japan Phone: (043) 296-5119 Facsimile: (043) 296-5124 ©FUTABA CORPORATION...
