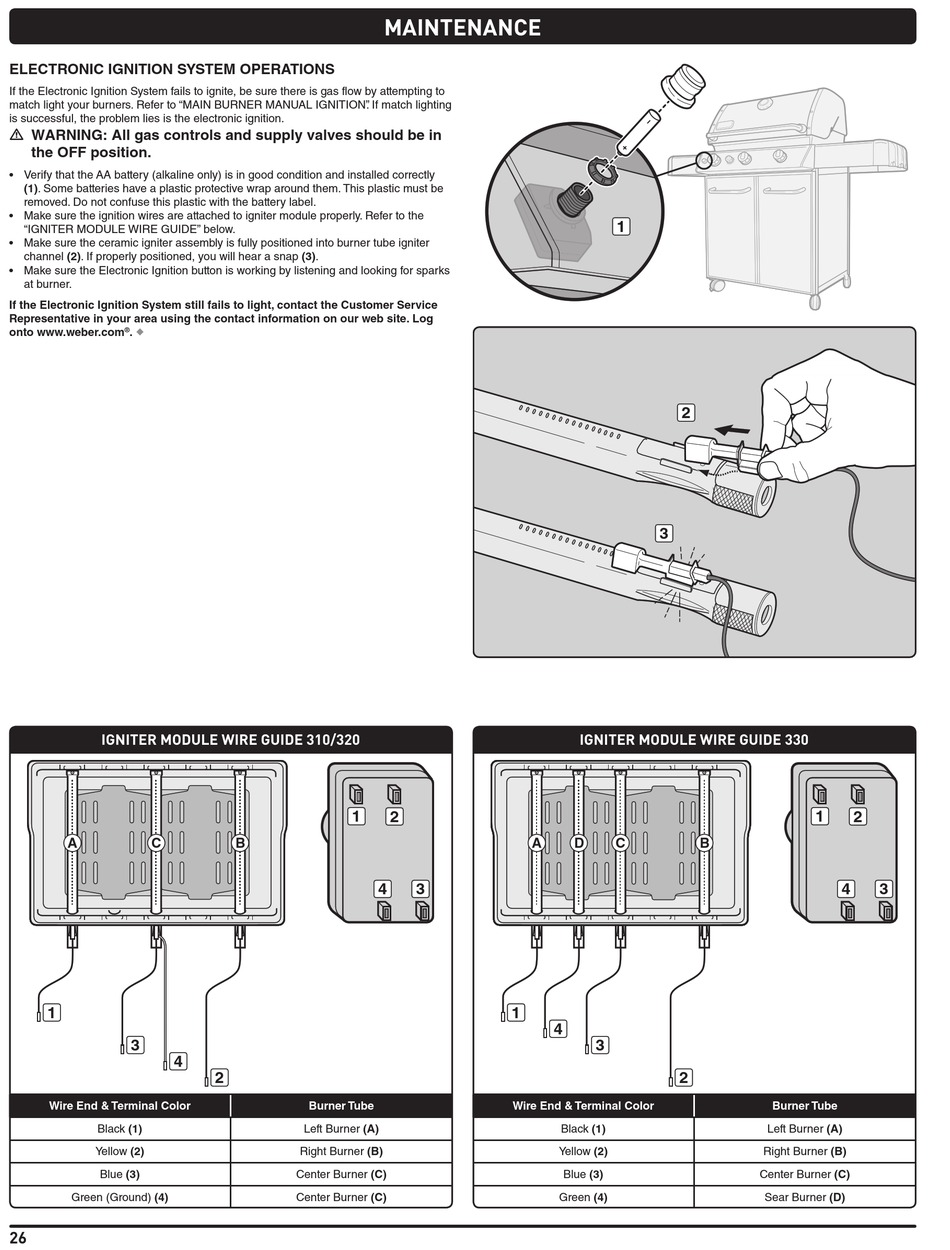

eLeCtroniC iGnition sYsteM oPerAtions

If the Electronic Ignition System fails to ignite, be sure there is gas flow by attempting to
match light your burners . Refer to "MAIN BURNER MANUAL IGNITION" . If match lighting
is successful, the problem lies is the electronic ignition .
m wArninG: All gas controls and supply valves should be in
the off position.
• Verify that the AA battery (alkaline only) is in good condition and installed correctly
(1) . Some batteries have a plastic protective wrap around them . This plastic must be
removed . Do not confuse this plastic with the battery label .
• Make sure the ignition wires are attached to igniter module properly. Refer to the
"IGNITER MODULE WIRE GUIDE" below .
• Make sure the ceramic igniter assembly is fully positioned into burner tube igniter
channel (2) . If properly positioned, you will hear a snap (3) .
• Make sure the Electronic Ignition button is working by listening and looking for sparks
at burner .
if the electronic ignition system still fails to light, contact the Customer service
representative in your area using the contact information on our web site. Log
onto www.weber.com .
®
◆
IGNITER moDULE WIRE GUIDE 310/320
A C
1
3
4
wire end & terminal Color
Black (1)
Yellow (2)
Blue (3)
Green (Ground) (4)
26
mAINTENANcE
1 2
B
4
2
burner tube
Left Burner (A)
Right Burner (b)
Center Burner (C)
Center Burner (C)
IGNITER moDULE WIRE GUIDE 330
A D
3
1
4
3
wire end & terminal Color
Black (1)
Yellow (2)
Blue (3)
Green (4)
1
2
3
C B
2
burner tube
Left Burner (A)
Right Burner (b)
Center Burner (C)
Sear Burner (d)
1 2
4 3
