Delta 1748 Specification Sheet

1748
1748-MDS
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
7 1/2"
(190.5 mm)
- B -
Plus or minus 1/2" (12.7 mm)
If recessed, the escutcheon
screws may need to be shortened.
Cover must be removed prior
to installation of trim.
A
Dimensions
1 /2
I.P.S. or C.W.T. 2 " (63.5 mm)
1 /2
I.P.S. or C.W.T. w/stops 5 " (139.7 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only.
8" (203 mm) Min.-
18" (457 mm) Max.
A
C/L Supply
Lines
Inlets
BATH MIXING
VALVES

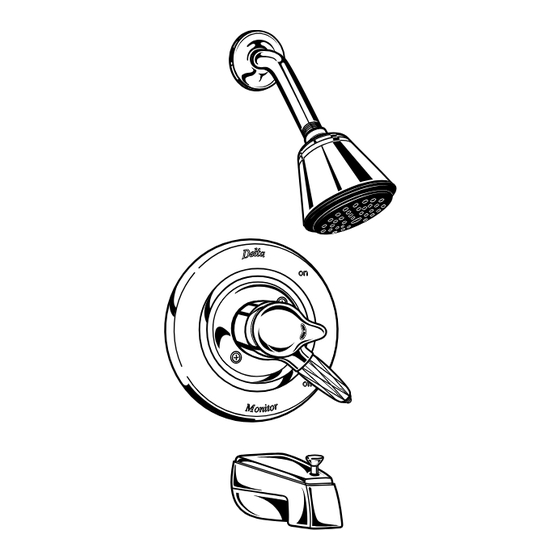

I Tub/Shower (1748 Series)
I Single Handle
I Monitor
I Pressure Balance
I Volume Controlled with Lever Handle
I Temperature Controlled with Dial
COMPLIES WITH:
•
ASME A1 12.18.1M-1996
•
ASSE 1016-1996
•
CSA B125-93
•
Showerhead GSA A-A-240
Indicates ADA compliance to
CABO/ANSI A117.1-1992
•
ASSE Seal Authorized
•
City of L.A. approved
•
CSA Certified
•
IAPMO Listed
STANDARD SPECIFICATIONS:
•
Requires 1
•
Back-to-back installation capability.
•
Solid brass fabricated body
•
Monitor
Maintains a balanced pressure of hot
and cold water even when a valve is
turned on or off elsewhere in the system.
•
Lever volume control handle; temperature
adjustment dial.
•
Field adjustable to limit dial rotation
into hot water zone.
•
Maximum dial rotation adjustable
between 90° and 180°.
•
Red and Blue graphics indicate
hot/cold temperature adjustment.
0 69
6
5
4
3
2
1
2" (50.8 mm)
0
0 10
® with Scald-Guard ®
U P
C
®
®
UL Listed to US and Canadian
Safety Standards
21PL
⁄
1
" (38 mm) wall cavity.
2
.
® with Scald-Guard ® valve.
Pressure (kPa)
138 207 276 345 414 483 552
Tub Filler
Showerhead
20 30 40 50 60 70 80
Pressure (PSI)
Valve
621
22.7
18.9
15.1
11.4
7.6
3.8
0
90
2.D.17
