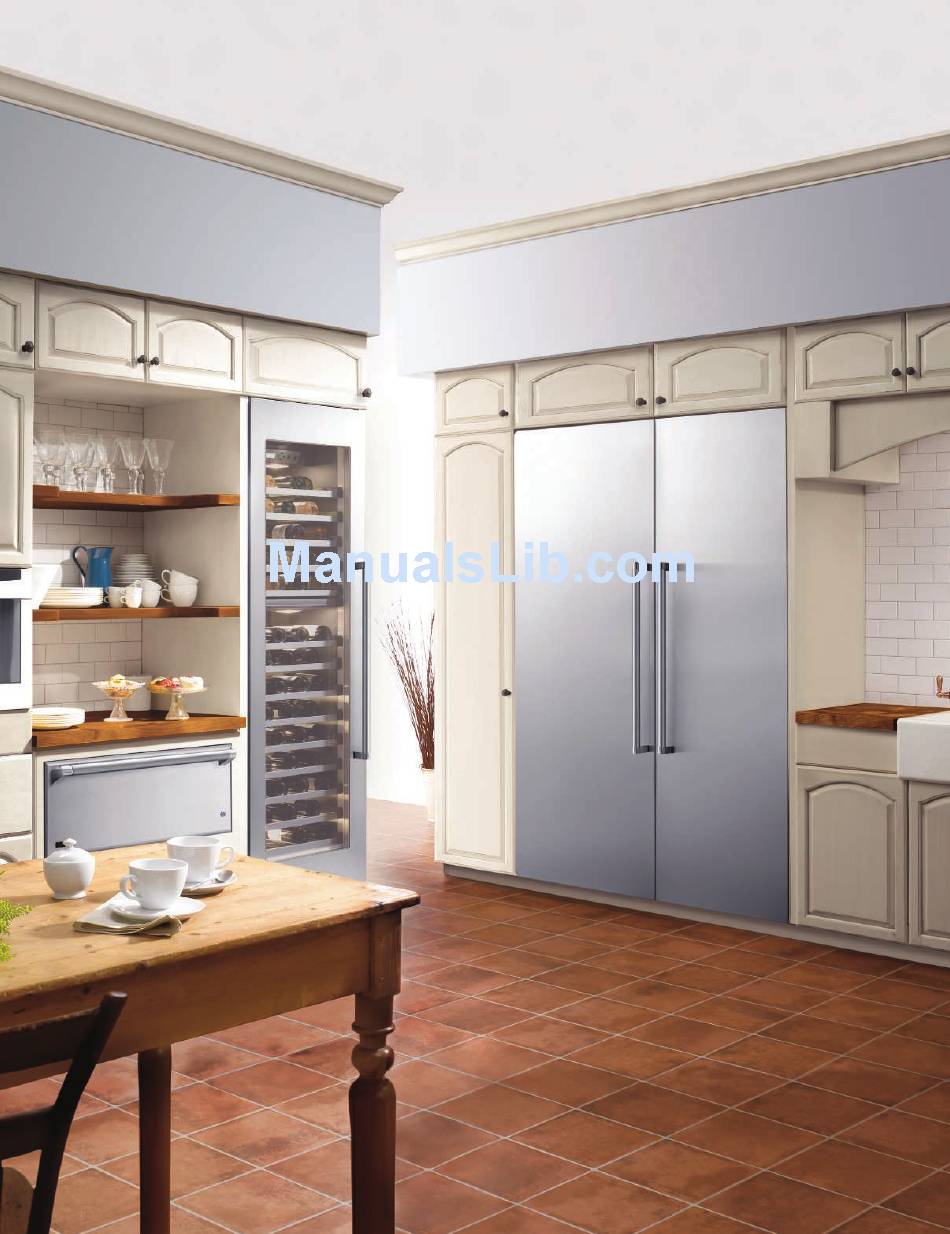

SHOWN: T18IW50NSP - WINE PRESERVATION COLUMN WITH FLUSH STAINLESS STEEL PANELS AND PROFESSIONAL HANDLE.
T30IF70NSP FREEZER COLUMN AND T24IR70NSP FRESH FOOD COLUMN WITH FLUSH STAINLESS STEEL PANELS AND
210
PROFESSIONAL HANDLES IN A SIDE-BY SIDE INSTALLATION WITH BSEALKIT10.

Advertisement

Table of Contents
loading

Related Manuals for Thermador FREEDOM T18ID80NRP

Summary of Contents for Thermador FREEDOM T18ID80NRP

  • Page 1 SHOWN: T18IW50NSP - WINE PRESERVATION COLUMN WITH FLUSH STAINLESS STEEL PANELS AND PROFESSIONAL HANDLE. T30IF70NSP FREEZER COLUMN AND T24IR70NSP FRESH FOOD COLUMN WITH FLUSH STAINLESS STEEL PANELS AND PROFESSIONAL HANDLES IN A SIDE-BY SIDE INSTALLATION WITH BSEALKIT10.
  • Page 2 Our customizable fully flush collection offers the ability to design a completely integrated look for a perfectly seamless appearance. True to the Thermador heritage, both collections are completed with state-of-the-art functionality. Features include the exclusive Liberty® Motorized Shelf, the Luminous™ Light System for excellent interior illumination and consistent temperature for optimum food storage.

  • Page 3: Appliance Overview

    Chiseled Column Column Stainless Steel Stainless Steel Panels and Panels and Professional Professional Handle Handle FLUSH FREEZER COLUMNS T18Id80NLP T18Id80NRP T18IF70NSP T24Id80NRP T24Id80NLP T24IF70NSP T30IF70NSP 18-Inch Flush 18-Inch Flush 18-Inch Flush, 24-Inch Flush 24-Inch Flush 24-Inch 30-Inch with External...
  • Page 4 36-Inch Framed 2-Door, Reversible French Door French Door French Door Door Swing Build Your Build Your Pre-assembled Pre-assembled Custom Column Custom Column with Chiseled with Chiseled Stainless Steel Stainless Steel Panels and Panels and Professional Professional Handles Handles 1.800.735.4328 | THERMADOR.COM...
  • Page 5 INSPIRATION The Thermador Freedom® Collection is designed to facilitate a complete range of new possibilities for your state-of-the-art kitchen design. Choose from custom columns for fully flush integration to the kitchen cabinetry or pre-assembled framed columns that feature a framed chiseled stainless steel panel.
  • Page 6 Side-by-side ush custom panel columns Side-by-side framed chiseled stainless steel and pre-assembled columns BOTTOM FREEZER Flush stainless steel panels Flush custom panels Framed chiseled stainless steel and pre-assembled WINE PRESERVATION Flush stainless steel panel Flush custom panels 1.800.735.4328 | THERMADOR.COM...
  • Page 7 SUGGESTEd COMBINATIONS Thermador’s Freedom® Collection uses separate columns that create unlimited flexibility in both function and design. If you happen to want a more traditional set-up, some suggested column pairings are listed below. Please make sure to order the Side-by-Side Sealing Kit (BSEALKIT10) when installing flush side-by-side combinations to ensure a stable connection.

  • Page 8: Installation Options

    If one side of the appliance is visible, a side panel must be used. The side panel must be connected rmly to the wall, the floor and the overhead furniture/ xtures before the appliance is placed in the cavity. The dimensions of the side panel are taken from the opposite cavity wall. During installation ensure that the cavity is square and the exact size. 1.800.735.4328 | THERMADOR.COM...

  • Page 9: Features And Benefits

    LIBERTY™ SHELF Luminous Bright Halogen Light Towers and upper halogen spotlights fully illuminate food This Thermador exclusive allows you to adjust a to prevent items from being forgotten and to avoid spoilage. fully loaded shelf with a simple touch of a button,...
  • Page 10 LIBERTY™ SHELF This large capacity freezer drawer accommodates all of your frozen food storage needs This Thermador exclusive allows you to adjust and offers easy access for heavier items such as frozen turkeys and roasts. a fully loaded shelf with a simple touch of a...

  • Page 11: Planning Information

    FREEdOM® COLLECTION PLANNING INFORMATION INSTALLATION REQUIREMENTS BASE WARNING A fully-loaded appliance is very heavy—refer to the following INSTALLATION PLACE WARNING table for load bearing capacity: Do not install the appliance: 24-Inch Fresh Food Column approx. 890 lbs. / 40 kg 30-Inch Fresh Food Column approx.

  • Page 12: Electrical Specifications

    Improper connection of the equipment grounding conductor may result in electric shock. Have the appliance checked by a quali ed electrician or service technician if you are in doubt as to whether the appliance has been properly grounded. 1.800.735.4328 | THERMADOR.COM...
  • Page 13 FREEdOM® COLLECTION PLANNING INFORMATION KITCHEN dESIGN—BASIC TERMS NICHE (INSTALLATION CAVITY) The niche is the cavity where a Freedom Collection refrigerator To clarify the terms which are used in this design guide, please is installed. The width of the niche (18-inch, 24-inch, 30-inch...) is refer to the following de nitions: dependent on the appliance.
  • Page 14 – Rearranging the kitchen element that creates the problem – Creating a protruding niche for the refrigerator dOOR SWIVEL RANGE — " (19 MM) FLUSH APPLIANCE dOOR PANEL dOOR SWIVEL RANGE — 1 " (38 MM) FLUSH APPLIANCE dOOR PANEL 1.800.735.4328 | THERMADOR.COM...

  • Page 15: Installation Dimensions

    FREEdOM® COLLECTION INSTALLATION dIMENSIONS dEPTH OF INSTALLATION CAVITY (NICHE dEPTH) SPLIT COLUMN INSTALLATION The required depth of the installation cavity is mainly dependent on the kitchen design. The Freedom® Collection Refrigeration Columns are designed for a niche depth of 24-inches (610mm). So, if the kitchen cabinet (case + face frame) is 24-inches deep, this should accommodate many standard installations.
  • Page 16 – upper boundary (valance) is at least 4" deep and from solid material – niche width is exactly 30" – niche depth (cabinet depth) is 24" Kitchen Cabinetry Door Panel Side Walls of Installation Cavity are Completely Flush! Kitchen Cabinet INSTALLATION CAVITY 30-INCH INSTALLATION CAVITY (HORIZONTAL SECTION) (VERTICAL SECTION) 1.800.735.4328 | THERMADOR.COM...

  • Page 17: Side-By-Side Installation

    FREEdOM® COLLECTION INSTALLATION dIMENSIONS SIdE-BY-SIdE INSTALLATION The width dimension of a niche for side-by-side installations is de ned by adding the dimensions of the two single columns. Below illustrates the dimensions of a classic 48-inch side-by-side, with a 18-inch freezer unit on the left and a 30-inch refrigerator on the right. 48"...
  • Page 18 – niche width is exactly 42" (for a 18" + 24" = 42" SxS combination) – niche depth (cabinet depth) is 25" due to 1 " appliance front panel. 1.800.735.4328 | THERMADOR.COM...
  • Page 19 Flush 30-Inch Freezer/ – – – – – (2029mm) (603mm) (29kg) T30IF70NSP Fresh Food Columns " " " " 37 lbs. T18ID80NRP Flush 18-Inch – – – (2029mm) (451mm) (230.5mm) (2368mm) (17kg) T18ID80NLP Dispenser Columns " " " " 50 lbs.
  • Page 20 This is especially important if a surrounding niche for the appliance is created and if the niche is con gured with a face frame. The “furniture return” of this face frame must have a minimum depth of 4". 1.800.735.4328 | THERMADOR.COM...
  • Page 21 Flush Stainless Steel Chiseled Stainless Steel Right-Hand Swing Left-Hand Swing FREEHNDL10 Professional with Dispenser with Dispenser External Dispenser External Dispenser Coordinates with the entire family of Thermador Custom Column Professional Series appliances 18" T18IF70NSP SS18DOOR10 TE18DOOR10 Reversible Swing Flush Stainless Steel...
  • Page 22 SS363DOR10 TE363DOR10 T36IT71NNP Flush Stainless Steel Chiseled Stainless Steel French Door Custom Unit FREEHNDL10 Professional Coordinates with the entire family of Thermador Professional Series appliances 36" Pre-Assembled with Chiseled Stainless Steel Panels and Professional Handles T36IT71FNS French Door Pre-Assembled Unit WINE PRESERVATION—FULLY FLUSH COLLECTION...
  • Page 23 FREEdOM® COLLECTION ACCESSORIES FLUSH STAINLESS STEEL dOOR PANELS FRESH FOOd COLUMN BOTTOM FREEZER SS24dOOR10 24-Inch SS362dOR10 36-Inch 2-Door SS30dOOR10 30-Inch SS363dOR10 36-Inch 3-Door FREEZER COLUMN WINE PRESERVATION SS18dOOd10 18-Inch with Dispenser SS18dOWL10 18-Inch Left-Hand Door Swing SS18dOOR10 18-Inch without Dispenser SS18dOWR10 18-Inch Right-Hand Door Swing SS24dOOd10...

  • Page 24: Installation Accessories

    (For fresh food or freezer columns only) HANDLES FREEHNDL10 PROFESSIONAL MASTHNDL10 MASTERPIECE® Coordinates with the entire family of Thermador Coordinates with the entire family of Thermador Professional Series appliances. Masterpiece Series appliances. 1.800.735.4328 | THERMADOR.COM...

  • Page 25: Installation Options

    FREEDOM® COLLECTION 24-INCH FRESH FOOD COLUMN Model: Flush Column T24IR70NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-BY-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side-by- T24IR70NSP Side Sealing Kit (BSEALKIT10) must be used to ensure a stable connection.

  • Page 26: Panel Dimensions

    " reveal and 4" toe the stainless steel door kick. Custom panel (special accessory). dimensions may vary depending on kitchen *** Required space for reveals and toe kick. nger guard. All refrigerators are UL and CUL approved. 1.800.735.4328 | THERMADOR.COM...
  • Page 27 FREEDOM® COLLECTION 24-INCH FRESH FOOD COLUMN Model: Framed Column T24BR70FSE INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two framed appliances are installed side-by-side, use TE42UKIT10 or TE48UKIT10 to ensure a stable T24BR70FSE connection.
  • Page 28 3/ 4 " 35 / " 1 / 8 " " min. " " 3/ 4 115° 21/ 32 * Door handle must be " added to this dimension 90° All refrigerators are UL and CUL approved. 1.800.735.4328 | THERMADOR.COM...
  • Page 29 FREEDOM® COLLECTION 30-INCH FRESH FOOD COLUMN Model: Flush Column T30IR70NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-BY-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side-by- Side Sealing Kit (BSEALKIT10) must be used to ensure a stable T30IR70NSP connection.
  • Page 30 " reveal and 4" the stainless steel door toe kick. Custom (special accessory). panel dimensions may vary depending *** Required space for on kitchen reveals nger guard. and toe kick. All refrigerators are UL and CUL approved. 1.800.735.4328 | THERMADOR.COM...
  • Page 31 FREEDOM® COLLECTION 30-INCH FRESH FOOD COLUMN Model: Framed Column T30BR70FSE INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two framed appliances are installed side-by-side, use TE42UKIT10 or TE48UKIT10 to ensure a stable T30BR70FSE connection.
  • Page 32 1 / 8 1 / 8 " " 35/ 38 min. " 3/ 5 " 3/ 4 115° * Door handle must be 21/ 32 " added to this dimension 90° All refrigerators are UL and CUL approved. 1.800.735.4328 | THERMADOR.COM...
  • Page 33 FREEDOM® COLLECTION 18-INCH FREEZER COLUMN Models: Flush Column T18ID80NRP, T18ID80NLP, T18IF70NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-by-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side-...
  • Page 34 FREEDOM® COLLECTION 18-INCH FREEZER COLUMN Models: Flush Column T18ID80NRP, T18ID80NLP, T18IF70NSP FLUSH COLUMN CUTOUT DIMENSIONS PANEL DIMENSIONS** Furniture return min. 4 inch deep (for flush T18ID80NRP sidewalls) (Panel Height) (Cabinet Height) Variable water connection at the appliance T18ID80NLP A: Area for installation of power connection.
  • Page 35 FREEDOM® COLLECTION 18-INCH FREEZER COLUMN Models: Framed Column T18BD80FLE, T18BF70FSE INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two framed appliances are installed side-by-side, use TE42UKIT10 or TE48UKIT10 to ensure a stable T18BD80FLE T18BF70FSE...
  • Page 36 If this is not possible, place the recessed water-box adjacent to the water supply socket elevated at the heights as referenced in areas A and B. D: The niche must be minimum 24 inches deep. 1.800.735.4328 | THERMADOR.COM...
  • Page 37 FREEDOM® COLLECTION 24-INCH FREEZER COLUMN Models: Flush Column T24ID80NRP, T24ID80NLP, T24IF70NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS SIDE-by-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side- by-Side Sealing Kit (BSEALKIT10) must be used to ensure a T24ID80NRP T24IF70NSP...
  • Page 38 ** Panel dimensions based on a is relevant for the standard " reveal and 4" toe stainless steel door kick. Custom panel dimensions (special accessory). may vary depending on kitchen reveals and toe kick. *** Required space for finger guard. 1.800.735.4328 | THERMADOR.COM...
  • Page 39 FREEDOM® COLLECTION 30-INCH FREEZER COLUMN Model: Flush Column T30IF70NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIVIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side- by-Side Sealing Kit (BSEALKIT10) must be used to ensure a T30IF70NSP stable connection.
  • Page 40 ⁄ *** Required space for finger guard. Water connection at the appliance ** Panel dimensions based on a standard " reveal and 4" toe kick. Custom panel dimensions may vary depending on kitchen reveals and toe kick. 1.800.735.4328 | THERMADOR.COM...
  • Page 41 FREEDOM® COLLECTION 36-INCH 2-DOOR BOTTOM FREEZER Model: Flush Unit T36IB70NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIVIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side- by-Side Sealing Kit (BSEALKIT10) must be used to ensure a stable connection.
  • Page 42 Custom panel dimensions may vary depending on kitchen reveals and toe kick. * Depends on the thickness of the furniture door. " is relevant for the stainless steel door (special accessory). *** Required space for finger guard. 1.800.735.4328 | THERMADOR.COM...
  • Page 43 FREEDOM® COLLECTION 36-INCH FRENCH DOOR BOTTOM FREEZER Models: Flush Unit T36IT71NNP, Flush Pre-Assembled Unit T36IT71FNS INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIVIDUAL COLUMN INSTALLATIONS INDIVIDUAL APPLIANCES WITH PARTITION T36IT71NNP 36-Inch Flush, 3-Door When dimensioning the partition for model 4, note the thickness...
  • Page 44 Custom panel dimensions may vary depending on kitchen reveals and toe kick. * Depends on the thickness of the furniture door. " is relevant for the stainless steel door (special accessory). *** Required space for finger guard. 1.800.735.4328 | THERMADOR.COM...
  • Page 45 FREEDOM® COLLECTION 36-INCH FRENCH DOOR BOTTOM FREEZER Model: Framed Unit T36BT71FSE INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIvIDUAL COLUMN INSTALLATIONS T36BT71FSE INDIvIDUAL APPLIANCES wITH PARTITION 36-Inch Framed, 3-Door When dimensioning the partition for model 4, note the thickness of the furniture fronts to prevent damage if the doors are opened Pre-assembled with Chiseled Stainless Steel...
  • Page 46 A and B. D: The niche must be minimum 24" deep. TOP VIEW CLEARANCE * Required space for nger guard. ** Door handle must be added to this dimension. 1.800.735.4328 | THERMADOR.COM...
  • Page 47 FREEDOM® COLLECTION 18-INCH WINE PRESERVATION COLUMN Model: Flush Column T18IW50NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIVIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side- by-Side Sealing Kit (BSEALKIT10) must be used to ensure a T18IW50NSP stable connection.
  • Page 48 " and 3 ". However, 2 " is recommended. nger guard. ** Panel dimensions based on standard " inch reveal and 4 inch toe kick. Custom panel dimensions may vary depending on kitchen reveals and toe kick. 1.800.735.4328 | THERMADOR.COM...
  • Page 49 FREEDOM® COLLECTION 24-INCH WINE PRESERVATION COLUMN Model: Flush Column T24IW50NSP INSTALLATION OPTIONS The Freedom® Collection offers you a variety of installation possibilities. In some instances, special accessories are required! INDIVIDUAL COLUMN INSTALLATIONS SIDE-By-SIDE INSTALLATIONS When two appliances are installed side-by-side, the Side- by-Side Sealing Kit (BSEALKIT10) must be used to ensure a T24IW50NSP stable connection.
  • Page 50 " and 3 ". However, 2 " is recommended. ** Panel dimensions based on standard " reveal and 4" toe kick. Custom panel dimensions may vary depending on kitchen reveals and toe kick. 1.800.735.4328 | THERMADOR.COM...
