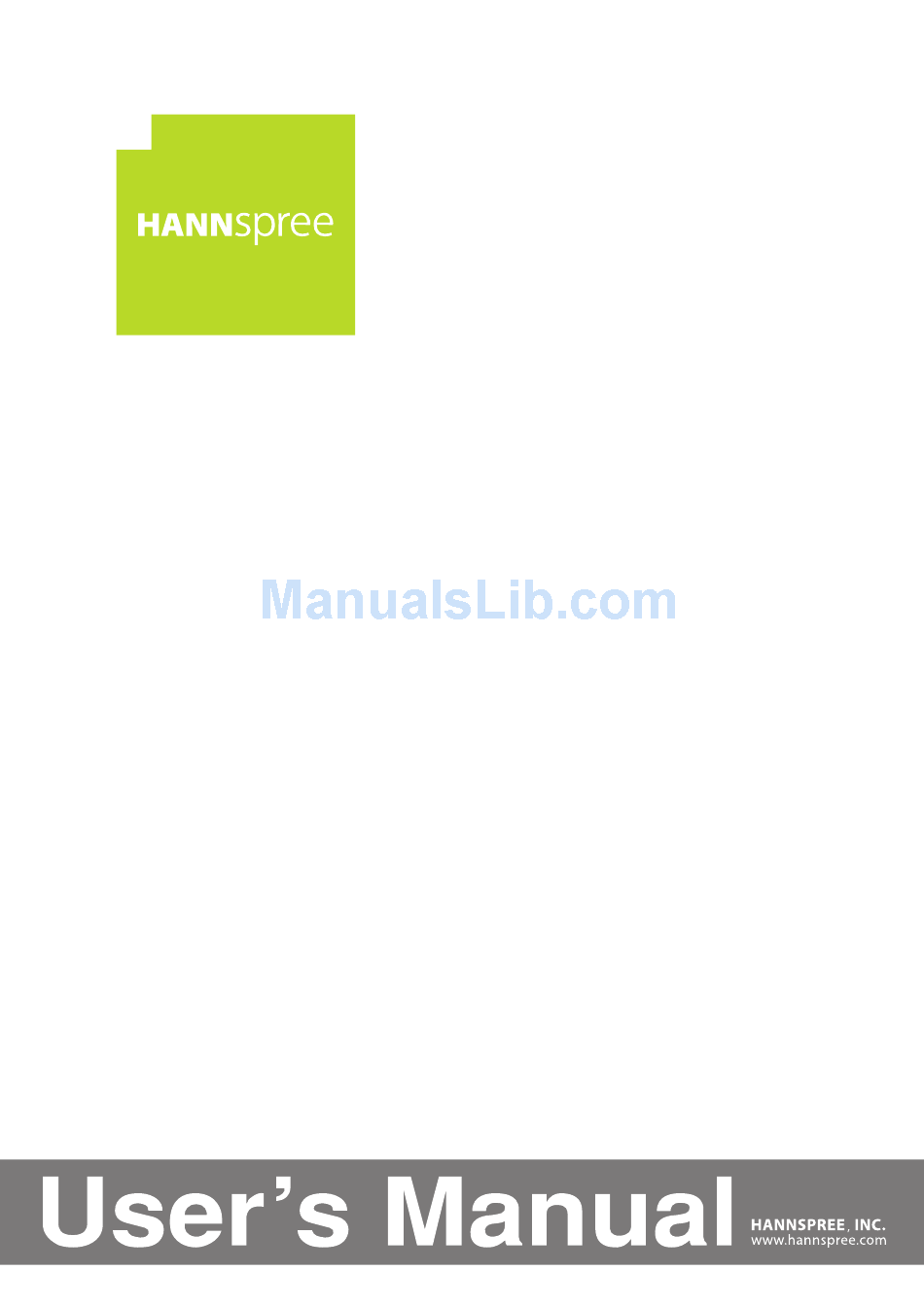

- Page 1 19” Liquid Crystal Display Television Fernsehers mit Flüssigkristallanzeige TV LCD TV de Pantalla de Cristal Líquido Questo televisore LCD LCD (vloeibaar-kristalscherm) TV Televisor com Ecrã de Cristais Líquidos...
-
Page 2: Safety Instructions
Explanation of WARNING Symbols Dangerous Voltage: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence dangerous voltage within the inside of the product that may be sufficient level to constitute a risk of electric shock to persons. Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. - Page 3 17) Do not expose your LCD TV to dripping or splashing, and no objects filled with liquids be placed on it. 18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the back panel of unit. 19) This product is only to perform the useful function of entertainment and visual display tasks are excluded.
-
Page 4: Table Of Contents
Content ACCESSORIES........................1 FRONT PANEL CONTROL....................2 BACK PANEL CONTROL ....................3 REMOTE CONTROL ......................4 Function of remote control button .................5 Teletext function control button ..................6 INSTALLATION........................8 Connecting RF antenna, Cable TV Wire or DTV cable..........8 Connecting to DVD/ Set Top Box..................8 Connecting to the Headphone ..................10 Connecting to a Computer.................. -
Page 5: Accessories
ACCESSORIES Thank you for purchasing this LCD-TV of high performance! This LCD-TV package comes with: LCD TV User’s Manual Quick Start Guide Warranty Card Remote Control Battery AAA x 2 Power Cord... -
Page 6: Front Panel Control
FRONT PANEL CONTROL Volume Down (Adjust Decreasing) Volume Up (Adjust Increasing) On Screen Display Menu Key (Back to Previous Menu) Power On/Off Switch Scroll Down (Channel Down) Scroll Up (Channel Up) Input Source Selection (Enter) Power LED Indicator Remote Control Receiver... -
Page 7: Back Panel Control
BACK PANEL CONTROL Power Input (AC Input) Headphone Jack HDMI (support HDCP or PC) Signal Input VGA (15 pin) Signal Input from Computer Audio Input for VGA or DVI YPbPr / HD Component Video Input Audio Input for AV, S-Video or YPbPr components (left/ right) S-Video Input SCART Signal Input Composite Video Input... -
Page 8: Remote Control
REMOTE CONTROL... -
Page 9: Function Of Remote Control Button
Function of remote control button POWER Power ON/OFF DTV/RADIO Digital TV function. Switch between DTV/RADIO programs INFO Display the current information SLEEP Set TV Sleep timer WIDE Adjust image size for Full, Zoom, Subtitle, Panorama, Underscan or Normal. It has different image size effect depending on different source FREEZE Freeze picture... -
Page 10: Teletext Function Control Button
Teletext function control button TEXT/ MIX/ PICTURE button In TV Mode: Press the TEXT/ MIX/ PICTURE button to enter the Teletext mode. In TELETEXT Mode: Press the button again to superimpose a Teletext broadcast onto the screen of current TV program (mixed Mode). In MIXED Mode: Press the button again to return back to the normal TV Screen (current program). - Page 11 SIZE button Select double height text under Teletext mode for full screen. Press this button to enlarge the top half of the page. Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display. LIST button Press this button you force the Teletext to LIST Mode.
-
Page 12: Installation
INSTALLATION Connecting RF antenna, Cable TV Wire or DTV cable Make sure the power is OFF before installing your LCD TV. 1) ATV: Connect the LCD TV to TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV channels into memory with Auto Tuning function (See page 26) when using an antenna or cable TV system without a cable connecter box. - Page 13 2) With S-Video cable: S-Video Cable (not supplied) Audio in Cable (not supplied) VCD or DVD Player 3) With YPbPr cable: YPbPr Cable (not supplied) Audio in Cable (not supplied) VCD or DVD Player 4) With SCART cable: SCART Cable (not supplied) VCD or DVD Player...
-
Page 14: Connecting To The Headphone
5) With HDMI cable: VCD or DVD Player HDMI Cable (not supplied) 6) With HDMI to DVI cable: Audio Cable (not supplied) VCD or DVD Player HDMI-DVI Cable (not supplied) Connecting to the Headphone Connect the headphone to the headphone output terminal of the LCD TV. (Headphone sold separately) Headphone (not supplied) -
Page 15: Connecting To A Computer
Connecting to a Computer 1) VGA (15pin D-Sub): Connect the VGA cable from VGA output of the computer to the VGA terminal input of your LCD TV. Also, connect the Audio In cable (green) from the audio output of your computer to the audio input terminal (green) of the LCD TV. PC Audio In Cable (not supplied) VGA 15Pin Cable (not supplied) -
Page 16: Basic Operation
BASIC OPERATION Before using the LCD TV: Connect external equipments properly. Insert the power plug, and the power LED indicator will light red. To operate your LCD TV, you may use the TV remote control or bottom panel buttons to select input source, change channels, or adjust volume. -
Page 17: Sound Mode Select
Sound Mode Select Repeatedly press SOUND key to select the sound mode between Standard, Music, Movie, Sports, and User. Picture Mode Select Repeatedly press PICTURE key to select picture mode between Standard, Mild, User, and Dynamic. Aspect Ratio Repeatedly press WIDE key to select the aspect ratio of screen. You can select between Full, Zoom, Subtitle, Panorama, Underscan (or Auto) or Normal. -
Page 18: Dtv/Radio
DTV/RADIO Press the DTV/RADIO key to switch between DTV and RADIO programs. TV/DTV Repeatedly press the TV/DTV key to switch between TV/DTV. When pressed in other input source, it will automatically direct to TV source. INFO To display the current information of the LCD TV: Press INFO, and the banner displays the program No., current time, program name, teletext info, etc. -
Page 19: Electronic Program Guide (Epg)
Electronic Program Guide (EPG) Press the GUIDE button to display the Electronic Program Guide. Press the ▲ or ▼ button to scroll up or down the channels, ◄ or ► to change time period. To change date, press the Yellow key first, and then select date with ◄ or ►. You can also pause at a channel and press the INFO key to view the detailed program information, or press OK to switch to that program directly. -
Page 20: Favorite List
Favorite List Press FAVORITE key to display the favorite channels you’ve added to the FAVORITE LIST. You can use ▲ or ▼ to select a favorite channel, and then press OK to direct to that channel immediately. To set up favorite channels, select the Program Edit function in CHANNEL menu. Using the OSD Menu You are able to use OSD menus to adjust various settings by using your remote control or menu button on the bottom of the LCD TV. -
Page 21: Advanced Operation-Osd Menu
ADVANCED OPERATION—OSD MENU You can use the OSD menu to adjust various settings for your LCD TV. Press the MENU button to display the OSD Menu, and use ▲▼ to select the desired OSD menu. Picture Menu —To adjust the picture quality In ATV, DTV, AV, S-Video, SCART, YPbPr, HDMI source: Note: The LOCK and CHANNEL menu icons are only enabled in ATV and DTV source. - Page 22 In VGA source:...
- Page 23 Picture Mode: To select picture mode between Standard, Mild, User, and Dynamic. When user is selected, you can adjust the level of Contrast, Brightness, Colour, Tint, and Sharpness separately. Contrast: To adjust contrast of video. Brightness: To adjust luminance of video. Colour: To adjust colour.
-
Page 24: Sound Menu
SOUND Menu —To set the audio quality and status Note: The LOCK and CHANNEL menu icons are only enabled in ATV and DTV source. Sound Mode: To select the sound mode between Standard, Music, Movie, Sports, and User. When User is selected, you can adjust the level of Bass and Treble separately. Balance: To adjust the left and right audio balance. -
Page 25: Time Menu
TIME Menu —To set up time zone Note: The LOCK and CHANNEL menu icons are only enabled in ATV and DTV source. Clock: To adjust the current time. Press ► to enter sub-menu. Press ▲▼ to select Date, Month, Year, Hour and Minute, and press ◄► to set current time. When you complete the adjustment, move to Close and press OK to save the result. -
Page 26: Option Menu
OPTION Menu —To adjust OSD setting In DTV source: Note: When in AV, S-Video, SCART, YPbPr, VGA, HDMI source, Audio Languages, Subtitle Language, and Hearing Impaired will be disabled. Also, the LOCK and CHANNEL menu icons will be disabled. Language: To select the OSD language between English, Spanish, French, Italian, Dutch, Portuguese, Finnish, Swedish, and German with ◄►. -
Page 27: Lock Menu
Audio Languages: Set the primary and secondary audio languages for watching program. (only available in DTV) Subtitle Language: Set the primary and secondary subtitle languages for displaying subtitle. (only available in DTV) Hearing Impaired: To provide close-captioning function for the hearing impaired, if the program provides it. - Page 28 Lock System: If enabled, a password is required for access to the Auto Tuning, DTV Manual Tuning, ATV Manual Tuning and Program Edit in Channel menu. Set Password: To change the password, press ►. Enter the new password, and confirm by entering it again.
-
Page 29: Channel Menu
Parental Guidance: To set the rating level of the programs. If the rating of the displayed program is higher than the rating set in the Parental Guidance, the program will be locked. CHANNEL Menu —To set up for TV It is only active in TV source. In ATV source:... - Page 30 In DTV source: Auto Tuning: To automatically preset the channels into TV’s memory. Select the country of your area with ◄►, select Start, and then press OK to perform Auto Tuning. Kindly suggest you auto scan all the channels before watching your TV for the first time. Note: After auto scanning all the channels, you need not to do it again when turning on your TV next time.
- Page 31 DTV Manual Tuning: Press ◄► to select the channel, then press OK to start scan. ATV Manual Tuning: Press the ▲▼ to select the items, and press the ◄► button to adjust. See details in the following sub-options. ♦ Storage to: Press ◄► to select the channel number you want to save to. ♦...
- Page 32 Program Edit: Press ► to enter Program Edit. ♦ Delete: Press ▲▼ to select a channel, and then press the Red key. Press Red key again to confirm deletion. The channel you deleted will not be shown when browsing through the channels with PROG▲▼...
- Page 33 CI Information: To check the CI information, the CI (CAM) Card must be plugged in. Press ► to enter CAM Menu. Note: The OSD is only for illustration and the menu options and screen format will vary according to the services provider.
- Page 34 Authorizations: Enter the factory default 4-digit pincode, then press OK. Pincode will vary according to services provider. • Maturity rating: Enter the maturity rating you want, then press OK. • Bolts: Select Maturity rating or Consultations, then press OK to switch between Free and Locked.
- Page 35 • Changing PIN code: To change the pincode for entering Authorization menu. Enter your new pincode and press OK, then repeat again to confirm. Module information: Press OK to display module information.
-
Page 36: Technical Information
TECHNICAL INFORMATION Type 19.0” TFT Active Matrix 0.2835 (H) x 0.2835 (V) mm pixel pitch Colour Filter RGB vertical stripe Glass surface Anti-Glare Input signal RGB analog (0.7/1.0 Vp-p, 75 ohms) Separate Sync, fh: 30-82 kHz, fv:55-76 Hz TV system Antenna - PAL / SECAM and DVB-T Video 1 composite RCA, 1 S-Video, 1 SCART, 1 HDMI, 1 YPbPr component,... -
Page 37: Safety Precautions
SAFETY PRECAUTIONS This LCD TV is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the LCD TV as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. Warnings This LCD TV should be operated only at the correct power sources indicated on the label on the rear end of the LCD TV. -
Page 38: Care And Maintenance
CARE AND MAINTENANCE Care Avoid exposing your LCD TV directly to sunlight or other heat source. Place your LCD TV away from the sunlight to reduce glare. Put your LCD TV in a well ventilated area. Do not place anything heavy on top of your LCD TV. Make certain your LCD TV is installed in a clean and moisture-free area. - Page 40 2001132102P...
