Accessory
®

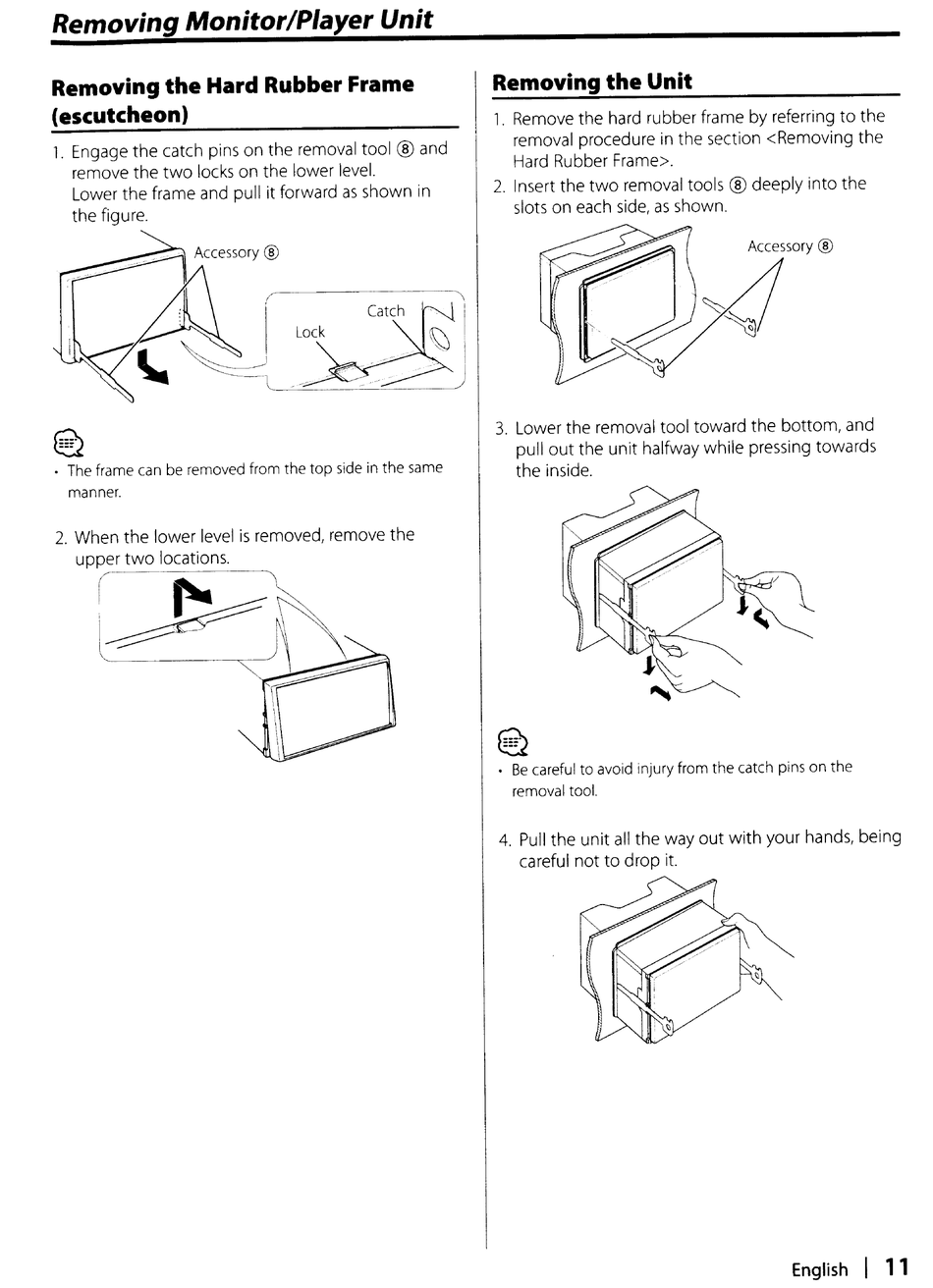

Removing Monitor/Player Unit
Removing the Hard Rubber Frame
(escutcheon)
1. Engage the catch pins on the removal tool
®
and
remove the two locks on the lower level.
Lower the frame and pull it forward as shown in
the figure.
~
~
• The frame can be removed from the top side in the same
manner.
2. When the lower level is removed, remove the
upper two locations.
[~f\
Removing the Unit
1. Remove the hard rubber frame by referring to the
removal procedure in the section <Removing the
Hard Rubber Frame>.
2. Insert the two removal tools
®
deeply into the
slots on each side, as shown.
3. Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
~
~
Be careful to avoid injury from the catch pins on the
removal tooL
4. Pull the unit all the way out with your hands, being
careful not to drop it.
