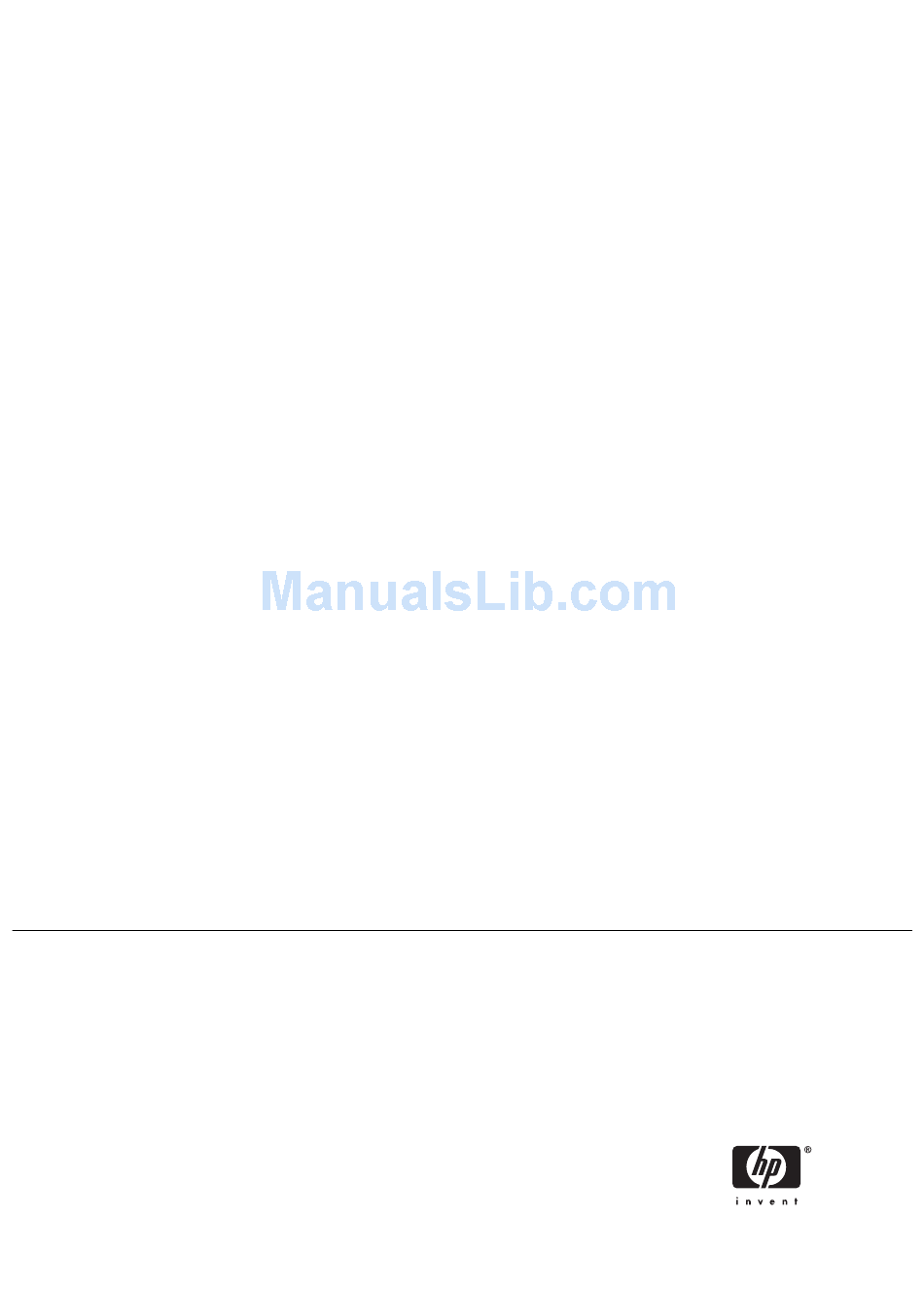

- Page 1 Computer Setup (F10) Utility Guide - dx2200 Microtower Model HP Compaq Business PC...
- Page 2 Hewlett-Packard Company. Computer Setup (F10) Utility Guide HP Compaq Business PC dx2200 Microtower Model First Edition (January 2006) Second Edition (January 2007) Document Part Number: 413759–002...
-
Page 3: About This Book
About This Book This guide provides instructions on how to use Computer Setup. This tool is used to reconfigure and modify computer default settings when new hardware is installed and for maintenance purposes. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. - Page 4 About This Book ENWW...
-
Page 5: Table Of Contents
Table of contents Computer Setup (F10) Utility Computer Setup (F10) Utilities ......................1 Using Computer Setup (F10) Utilities .................. 1 Computer Setup—System Information ................3 Computer Setup—Standard CMOS Features ..............4 Computer Setup—Advanced BIOS Features ..............6 Computer Setup—Advanced Chipset Features ..............7 Computer Setup—Integrated Peripherals ................ - Page 6 ENWW...
-
Page 7: Computer Setup (F10) Utility
Computer Setup (F10) Utility Computer Setup (F10) Utilities Use Computer Setup (F10) Utility to do the following: ● Change factory default settings. ● Set the system date and time. ● Set, view, change, or verify the system configuration, including settings for processor, graphics, memory, audio, storage, communications, and input devices. - Page 8 Eight menu headings appear on the Computer Setup Utility screen: ● System Information ● Standard CMOS Features ● Advanced BIOS Features ● Advanced Chipset Features ● Integrated Peripherals ● Power Management Setup ● PnP/PCI Configurations ● PC Health Status Five action choices are listed on the Computer Setup Utility screen: ●...
-
Page 9: Computer Setup-System Information
Table 1 Computer Setup (F10) Utility Main Menu (continued) Power Management Setup Table 7 Computer Setup—Power Management Setup on page 9 PnP/PCI Configurations Computer Setup—PnP/PCI Configurations on page 9 PC Health Status Table 9 Computer Setup—PC Health Status on page 10 (Action Choices) Table 10 Computer Setup—(Action Choices) on page 11 Computer Setup—System Information... -
Page 10: Computer Setup-Standard Cmos Features
Computer Setup—Standard CMOS Features NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3 Computer Setup—Standard CMOS Features Option Description Date (mm:dd:yy) Allows you to set system date. Time (hh:mm:ss) Allows you to set system time. PATA Controller Disables/enables PATA Controller. - Page 11 Table 3 Computer Setup—Standard CMOS Features (continued) SATA Channel 1 Master For each, allows you to: ● SATA Channel 2 Master run HDD self-test for selected channel: ● SMART Status Check ● HDD Short Self-Test ● HDD Extended Self-Test ● set extended IDE drive on selected channel to: ●...
-
Page 12: Computer Setup-Advanced Bios Features
● 15 seconds ● 30 seconds Computer Setup—Advanced BIOS Features NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 4 Computer Setup—Advanced BIOS Features Option Description Device Boot Disabling Allows you to restrict a device from booting the unit. You can disable as a bootable device: ●... -
Page 13: Computer Setup-Advanced Chipset Features
Table 4 Computer Setup—Advanced BIOS Features (continued) Security Option Allows you to set the security option to Setup or System so that the password is required every time the system boots or only when entering Computer Setup. APIC Mode Disables/enables the Advanced-PIC mode. MPS Version Control Allows you to set the MPS table version to: for OS... -
Page 14: Computer Setup-Integrated Peripherals
Computer Setup—Integrated Peripherals NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 6 Computer Setup—Integrated Peripherals Option Description Onboard HD Audio Disables/enables onboard HD audio. OnChip USB Disables/enables USB controller. Controller USB Legacy Support Disables/enables USB legacy support function (USB keyboard, USB mouse, and USB flash media). -
Page 15: Computer Setup-Power Management Setup
Computer Setup—Power Management Setup NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 7 Computer Setup—Power Management Setup Option Description After AC Power Loss Allows you to select system power loss behavior: ● ● ●... -
Page 16: Computer Setup-Pc Health Status
Table 8 Computer Setup—PnP/PCI Configurations (continued) IRQ Resources When resources are controlled manually, allows you to assign each system interrupt a type, depending on the type of device using the interrupt. ● IRQ-3 assigned to Legacy ISA for devices compliant with the original PC AT bus specification, PCI/ISA PnP for devices ●... -
Page 17: Computer Setup-(Action Choices)
Table 9 Computer Setup—PC Health Status (continued) VBAT (V) (view only) 3VSB (V) (view only) Computer Setup—(Action Choices) NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 10 Computer Setup—(Action Choices) Option Description Load Optimized Allows you to reset Computer Setup to factory defaults. -
Page 18: Recovering The Configuration Settings
Recovering the Configuration Settings Recovering the configuration settings established in the Computer Setup (F10) Utility requires that you first back up the settings before a recovery is needed. The CMOS Save/Load utility can be found at http://www.hp.com under the Software & Driver Downloads for your specific model.
