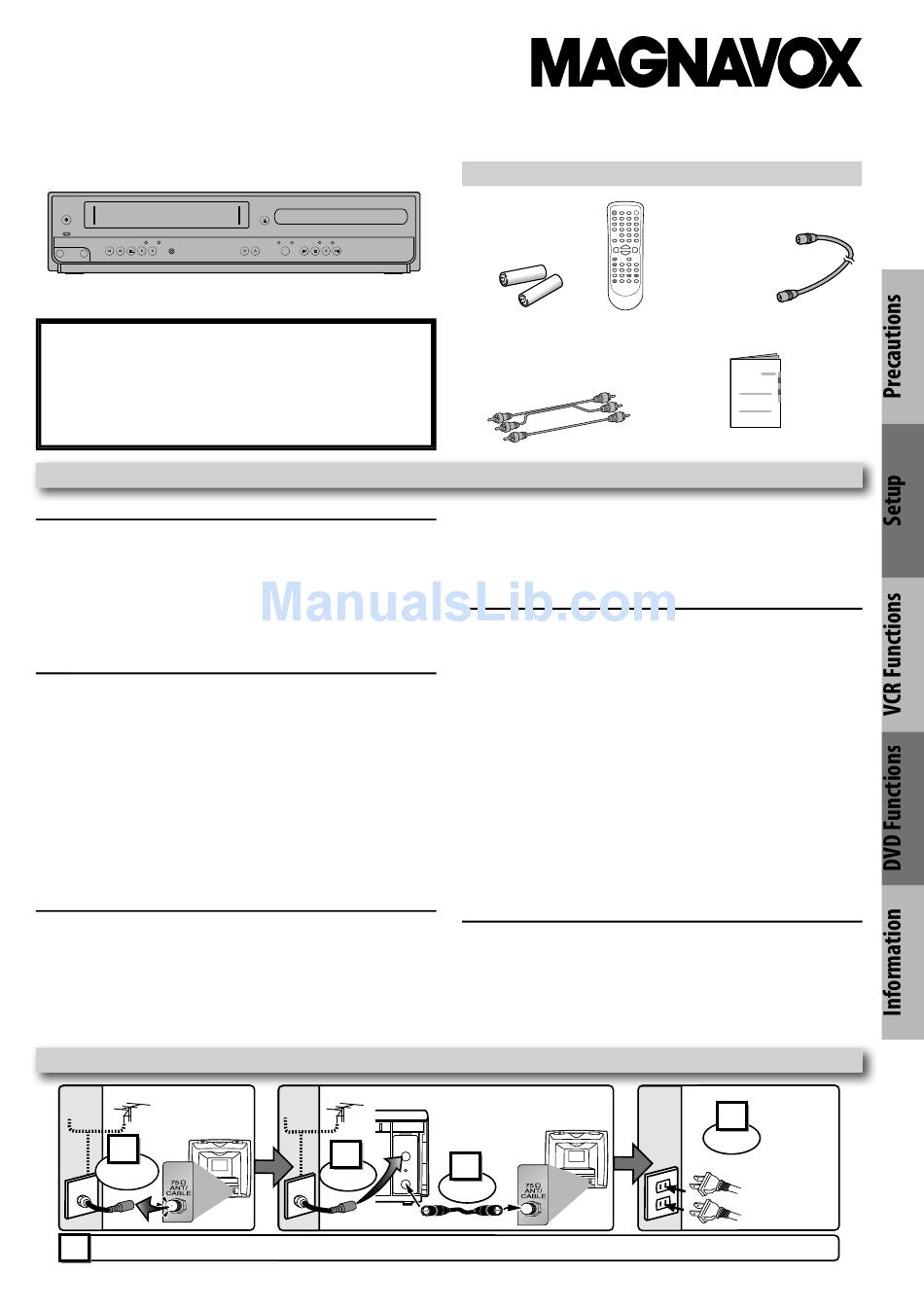

Owner's Manual
Please read before using this unit.
DVD/CD Player with Video Cassette Recorder
CMWD2206 A
STANDBY-ON
POWER ON
REC
REC
TIMER REC
TIMER REC
REW
F.FWD
STOP/EJECT
PLAY
RECORD
RECORD
VIDEO
AUDIO
IR
If you need additional operating assistance after
reading this owner's manual, please call
TOLL FREE : 1-800-605-8610
or visit our web site at
www.magnavox.com/support
Contents
■ Safety Instructions ..............................................................................2
Moisture Condensation Warning ....................................................................... 4
About Copyright ....................................................................................................... 4
Symbols Used in This Manual.............................................................................. 4
Maintenance .............................................................................................................. 4
■ About the Video Cassettes and Discs ..................................................5
Playable Video Cassettes ....................................................................................... 5
Playable Discs ............................................................................................................ 5
Unplayable Discs ...................................................................................................... 5
Setup p
■ Connections.........................................................................................6
RF Output Channel .................................................................................................. 6
Hint for Cable Box or Satellite Box ..................................................................... 6
Connection to an Audio System......................................................................... 6
Connection to a TV ..................................................................................................
V
■ Preparation for Use .............................................................................8
Turn on the Unit for the First Time.................................................................... 8
To Add or Delete Channels................................................................................... 8
Clock Setup................................................................................................................. 8
■ Function Overview ..............................................................................
Front Panel Indicator .............................................................................................. 9
VCR / DVD Switching .............................................................................................. 9
Front & Rear Terminals........................................................................................... 9
Remote Control........................................................................................................10
Installing the Batteries for the Remote Control...........................................10
■ Playback .............................................................................................
■ Other Operations ...............................................................................11
Index Search..............................................................................................................11
Time Search...............................................................................................................11
Auto Repeat ...............................................................................................................12
Basic TV Connection
Antenna
Cable TV
signal
or
(Back of TV)
1
Disconnect
5
Please refer to "Connections" on page 6.
© 2009 Funai Electric Co., Ltd.
DVD PLAYER / VCR CMWD 2206
OPEN/CLOSE
VCR
DVD
DISC IN
PLAY
CHANNEL
SOURCE
PREV
STOP
PLAY
NEXT
7
9
11
Antenna
Cable TV
(Back of DVD/VCR)
signal
or
2
ANT-IN
Connect
ANT-OUT
RF cable
Supplied Accessories
Remote control
(NB179UD)
with two AA (1.5V)
batteries
Audio/Video cables
(WPZ0102TM018 /
WPZ0102LTE01 /
WPZ102SCP001)
■ Recording............................................................................................12
Recording & OTR (One Touch Recording)......................................................12
Timer Recording ......................................................................................................12
Hints for OTR and Timer Recording..................................................................13
Copying a Video Tape ...........................................................................................14
■ Playback .............................................................................................
■ Search Functions ................................................................................16
Using Track Search ..................................................................................................16
Using Title / Chapter Search ................................................................................16
Using Time Search ..................................................................................................16
■ On-Screen Display ..............................................................................
■ Repeat / Random / Programmed Playback .......................................
Repeat Playback / Repeat A-B Playback .........................................................
Random Playback / Programmed Playback ..................................................
■ Special Settings ..................................................................................19
Subtitle Language / Audio Language..............................................................19
Camera Angles / Black Level Setting ...............................................................19
Stereo Sound Mode / Virtual Surround...........................................................19
■ DVD Setup...........................................................................................20
LANGUAGE Setting.................................................................................................20
DISPLAY Setting.......................................................................................................21
AUDIO Setting ..........................................................................................................21
PARENTAL Setting...................................................................................................22
OTHERS Setting........................................................................................................22
Reset to the Default Setting (Except for PARENTAL Setting) ..................23
Information
■ Troubleshooting Guide ......................................................................23
■ Specifications .....................................................................................24
■ Language Code List............................................................................
■ Limited Warranty ...............................................................................
■ Quick Use Guide .................................................................................25
(Back of TV)
3
Connect
(supplied)
RF cable
(WPZ0901TM002 /
WPZ0901TM005)
Owner's Manual (1VMN28734)
Owner's Manual
4
AC
Plug in
outlets
From DVD/VCR
From TV
15
17
18
18
18
24
24
