Image viewer utility 1.01
Hide thumbs Also See for DIMAGE S304 - SOFTWARE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, User Manual
9224-2770-21 H-A107
E

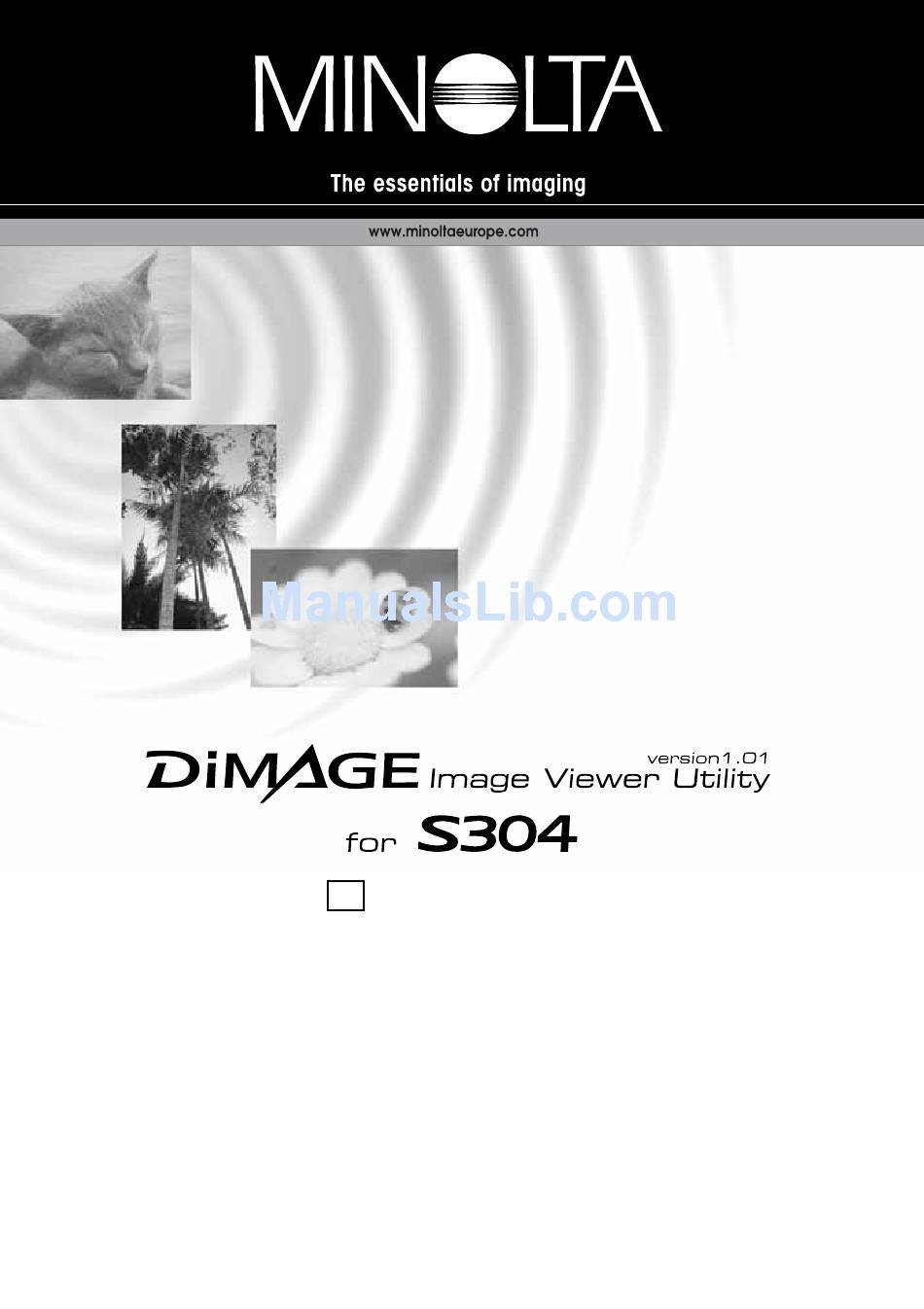

INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Minolta DIMAGE S304 - SOFTWARE

Summary of Contents for Minolta DIMAGE S304 - SOFTWARE

  • Page 1 9224-2770-21 H-A107 INSTRUCTION MANUAL...
  • Page 2 Minolta Co., Ltd. © 2001 Minolta Co., Ltd. • Every precaution has been taken to ensure the accuracy of this material Please contact Minolta if you have any questions, find any mistakes or notice missing information. • Minolta cannot accept responsibility for any loss, damage or other problems caused by use of this software.
  • Page 3 This instruction manual does not provide instructions for the basic operation of the personal computers, or the basic operation of Windows® or Mac OS operating systems. Please refer to the manual that came with your computer for information on the above mentioned topics.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS....................4 BEFORE YOU BEGIN.....................6 TERMS USED IN THIS MANUAL................6 SYSTEM REQUIREMENTS (Windows ® )...............8 SYSTEM REQUIREMENTS (Macintosh) ..............9 INSTALLING THE SOFTWARE (Windows ® ) ...............10 INSTALLING THE SOFTWARE (Macintosh) ..............13 STARTING THE SOFTWARE..................16 For Windows ......................16 For Macintosh ......................17 USING THE SOFTWARE –...
  • Page 5 TABLE OF CONTENTS COLOR CORRECTION ....................36 Corrections using the tone curves ................37 To Draw a Free Hand Tone Curve ................38 To Correct Images Using the “Black Point” Button...........39 To Correct Images Using the “White Point” Button ..........40 To Correct Images Using the “Gray Point” Button............41 Histogram Correction –...

  • Page 6: Before You Begin

    BEFORE YOU BEGIN TERMS USED IN THIS MANUAL • This manual assumes that your computer’s operating system (Windows®95/98/98 Second Edition/Me/2000/NT 4.0 or Mac OS) as well as other necessary software such as device drivers have been installed, and are operating properly. •...
  • Page 7 BEFORE YOU BEGIN • If you are using Macintosh OS, the term ‘Command Key’ refers to the key located next to the Space Bar. • Command names shown in this manual which are common both to the Windows® and Macintosh systems do not indicate any of the shortcut keys found in Windows®...

  • Page 8: System Requirements (Windows )

    SYSTEM REQUIREMENTS (Windows ® The system requirements for the operation of this software are as shown below: IBM PC/AT and their compatible computers Intel Pentium® Processor 133MHz or higher Windows®2000 Professional, Windows®Me, Windows®98 / 98 Second Edition, Windoes®95, Windows®NT4.0 (Service Pack 6 or later) A minimum of 64MB of RAM 100MB or more of free hard disk space for use as workspace Hard Disk Space...

  • Page 9: System Requirements (Macintosh)

    SYSTEM REQUIREMENTS (Macintosh) The system requirements for the operation of this software are as shown below: Apple Macintosh Series computers PowerPC 100MHz or higher (except a non-Macintosh Mac OS-compatible computer) Mac OS 8.6 / 9 / 9.0.2 / 9.0.4 / 9.1 64MB or more of free memory 100MB or more of free hard disk space for use as workspace Hard Disk Space...

  • Page 10: Installing The Software (Windows )

    INSTALLING THE SOFTWARE (Windows ® Follow the procedure below to install the software on your Windows PC. RAM stationed programs such as anti-virus programs or installation monitoring programs may cause the installer to fail. Uninstall those programs from your system or temporarily disable them before starting the installation, and then put them back on your system after completing the installation.
  • Page 11 INSTALLING THE SOFTWARE (Windows ® 4. Click “Next >”. The “License Agreement” (figure-left) appears. Read the entire “License Agreement” carefully before continuing the installation If you do not agree to the terms of the “License Agreement”, click “No”. The installation procedure will be terminated.
  • Page 12 INSTALLING THE SOFTWARE (Windows ® Click “Next >”, and the “Select Program Folder” window (figure-left) will appear. 7. The name of the program folder where you will add the program icon is shown in the window. Click “Next >” to add the icon in the default (reversed) folder.

  • Page 13: Installing The Software (Macintosh)

    INSTALLING THE SOFTWARE (Macintosh) Follow the procedure below to install the software on your Macintosh computer. Functional expansion programs such as anti-virus programs or control panel documents may cause the installer to fail. Remove those programs/documents from your system using the utility such as the functional expansion manager or temporarily disable them before starting the installation, and then put them back on your system after completing the installation.
  • Page 14 INSTALLING THE SOFTWARE (Macintosh) 6. Click “Next >>” in the Installer’s initial window. The “License Agreement” (figure-left) appears. Read the entire “License Agreement” carefully before continuing the installation. If you do not agree to the terms of the “License Agreement”, click “No”. The installation procedure will be terminated.
  • Page 15 INSTALLING THE SOFTWARE (Macintosh) 8. Make sure that you have selected a proper folder for installation, and then click “Next >>”. The software installation starts. Follow the instructions shown on the screen. When the software installation has been completed, the window shown in the lower left-hand corner (Operation 9.) appears.

  • Page 16: Starting The Software

    STARTING THE SOFTWARE For Windows ® 1. Turn on your PC to start Windows®. 2. Select “Start” “Programs(P)” “DiMAGE Image Viewer Utility” “DiMAGE Image Viewer Utility”. The main window of the utility (figure-left) appears. - 16 -...

  • Page 17: For Macintosh

    STARTING THE SOFTWARE For Macintosh: 1. Turn on your Macintosh to start Mac OS. 2. Open the folder where you installed the application software (the folder that you selected or created during the software installation), and open the “DiMAGE Image Viewer Utility” folder in the same way. 3.

  • Page 18: Using The Software - Thumbnails

    If image files are Minolta-RAW files (image files with the .mrw extension), they will be processed to the image format that can be displayed on the monitor, and their thumbnails (100 x 75 pixels) will be displayed.

  • Page 19: To Display Thumbnails Of All Images In The Folder

    USING THE SOFTWARE – THUMBNAILS To Display Thumbnails of All Images in the Folder: 3. Click the “Load All Images” button of the main window. The OS (operating system) standard folder selection dialog box appears. (The left-hand figure is for Windows ®...
  • Page 20 5. Image files in the selected folder are read, and their thumbnails are displayed (figure-left). * If Minolta-RAW files (image files with the .mrw extension) exist in the selected folder, the “Open the Minolta-RAW File” window appears every time the software reads it in. Those files will be...

  • Page 21: To Display A Thumbnail Of A Certain Image In The Folder

    USING THE SOFTWARE – THUMBNAILS To Display a Thumbnail of a Certain Image in the Folder: (continued from page 18, Operation 2) 3. Click the “Load an Image” button in the main window. The OS (operating system) standard folder selection dialog box appears.
  • Page 22 USING THE SOFTWARE – THUMBNAILS * If you selected a Minolta-RAW file (image file with the .mrw extension), the “Open the Minolta-RAW File” window appears when the software reads it in. The file will be processed to the image format that can be displayed on the monitor, and its thumbnail will be displayed.
  • Page 23 USING THE SOFTWARE – THUMBNAILS - 23 -...

  • Page 24: To Rotate, Flip And Sort Thumbnails

    USING THE SOFTWARE – THUMBNAILS To Rotate, Flip and Sort Thumbnails: Sorting-Order Switch button Sorting-Target Specification list box Flip-Vertical button Flip-Horizontal button Rotate-Clockwise button Rotate-Counterclockwise button [Rotate] Select a thumbnail and click either the “Rotate-Counterclockwise” or the “Rotate-clockwise” button. If you click the “Rotate-Counterclockwise” button once, the thumbnail will be rotated by 90 degrees counterclockwise.

  • Page 25: To Change The Image Size

    USING THE SOFTWARE – THUMBNAILS To Change the Image Size: 1. Select the thumbnail that you wish to re-size, and then click the “Image Size” button in the main window. The “Image Size” window appears. 2. Type the width or the height value of the re-sized image in pixels.

  • Page 26: To Display The Image (Recording) Information

    USING THE SOFTWARE – THUMBNAILS To Display the Image (Recording) Information: 1. Select the thumbnail for which you wish to see image information, and then click the “Image Information” button in the main window. “Date of Recording”, “Time of Recording” and various information during recording are displayed (figure- lower left).

  • Page 27: To Delete Thumbnails

    USING THE SOFTWARE – THUMBNAILS To Delete Thumbnails: 1. Select the (thumbnailed) image that you wish to delete in the thumbnail display area of the main window. 2. Press the “Delete” key on your keyboard. The selected thumbnail will be deleted. This only removes the selected thumbnail from the thumbnail display area of the main window, and does not have any influence on the actual...

  • Page 28: Using The Software - Color Matching

    * If you correct images using the digital camera’s functions such as “Digital Effect Control” during recording, those corrections will be reflected in the images (excluding Minolta-RAW images (files) ). Therefore, if you wish to capture images reproduced as close to the subjects’ original colors as possible, do not use the correction function (of the digital camera) during recording.
  • Page 29 USING THE SOFTWARE – COLOR MATCHING 2. Select the desired color space from the “Output Color Space” drop-down list. If you wish to reproduce images on your monitor as close to the subjects’ original colors as possible, select the “Use ICC profile” option from the “Output Color Space” drop-down list, and then set the ICC profile of your monitor properly.
  • Page 30 USING THE SOFTWARE – COLOR MATCHING 2. Click “Load…”. The Windows ® standard file open dialog box appears. 3. Select your color monitor’s ICC profile, and then click “Open”. ICC profiles are normally stored in the following folders (if your system startup disk drive is C): •...
  • Page 31 USING THE SOFTWARE – COLOR MATCHING If you use Macintosh, follow the procedure below. 1. Select the “Use ICC profile” option from the “Output Color Space” pop-up menu. 2. Click “Choose” of the folder selection dialog box or “Open” of the file selection dialog box.

  • Page 32: Using The Software - Saving Images

    USING THE SOFTWARE – SAVING IMAGES The following describes how to save thumbnailed images as image files in your desired location. To Save an Image File: 1. Select the thumbnail that you wish to save. 2. Click the “Save an Image” button in the main window.
  • Page 33 USING THE SOFTWARE – SAVING IMAGES 3. Select the location to save the image file from the “Save in:” drop-down list (the pop-up menu on the top of the dialog for Macintosh), and then type the file name to save in the textbox next to “File name:” (“Name:” for Macintosh). If you do not type the extension here, the corresponding extension to the type of image file that you will select in the following Operation 4.

  • Page 34: To Save Multiple Images At One Time

    USING THE SOFTWARE – SAVING IMAGES To Save Multiple Images at One Time: 1. Select the thumbnails that you wish to save. If you wish to select more than 2 (thumbnail) images, click those (thumbnail) images while holding the “Ctrl” key (“Command” key for Macintosh). If you wish to select more than 2 (thumbnail) images listed continuously, click the first and the last (thumbnail) images while holding the “Shift”...
  • Page 35 USING THE SOFTWARE – SAVING IMAGES 3. Select the destination folder to save images. 4. Select the type of image files to save from the “File Type:” drop-down list (“File Type:” pop-up menu for Macintosh). Select either “TIFF” or “JPEG” . If you selected “JPEG”, set the compression ratio within the range of 1 (“High Image”) through 100 (“Low Image”) by dragging the slide bar using a mouse.

  • Page 36: Color Correction

    COLOR CORRECTION If you click the “Color Correction” tab, the following “Color Correction” window appears. You can add various corrections (retouches) using tone curves and histograms, or corrections of brightness, color balance, saturation, lightness and so on. Tone curves/histogram correction button Store a color correction job button Brightness, contrast and color balance Select a color correction job button...

  • Page 37: Corrections Using The Tone Curves

    COLOR CORRECTION Corrections using the tone curves 1. Click the “Tone Curves/Histogram Correction” button. The “Tone Curves and Histogram” window (figure-below) appears. 2. Select the desired tone curve channel to correct from the “Channel” drop- down list. If you select the “RGB” channel, each color will be corrected based on the same ratio.

  • Page 38: To Draw A Free Hand Tone Curve

    COLOR CORRECTION To Draw a Free Hand Tone Curve: 1. Click the “Tone Curves/Histogram Correction” button. 2. Select the desired tone curve channel to correct from the “Channel” drop- down list. 3. Click the “Draw Tone Curves” button, and then move the mouse cursor over the tone curve.

  • Page 39: To Correct Images Using The "Black Point" Button

    COLOR CORRECTION To Correct Images Using the “Black Point” Button: You can correct images by specifying the shadow point (the point that you wish to reproduce in black) on the preview image in the corrected image display area. 1. Double-click the “Black Point” button. The “Point Value Setting”...

  • Page 40: To Correct Images Using The "White Point" Button

    COLOR CORRECTION To Correct Images Using the “White Point” Button: You can correct images by specifying the highlight point (the point that you wish to reproduce in white) on the preview image in the corrected image display area. 1. Double-click the “White Point” button. The “Point Value Setting”...

  • Page 41: To Correct Images Using The "Gray Point" Button

    COLOR CORRECTION To Correct Images Using the “Gray Point” Button: You can correct images by specifying the gray point (the point that you wish to reproduce in monochrome) on the preview image in the corrected image display area. 1. Click the “Gray Point” button. The mouse cursor changes to a syringe shape.

  • Page 42: Histogram Correction - Auto Setting

    COLOR CORRECTION Histogram Correction – Auto Setting: You can correct images by specifying the “Input Level” and the “Output Level” ranges in the “Histogram” palette in the corrected image display area, where the color level distribution of the preview image is displayed.

  • Page 43: Histogram Correction - To Correct Rgb Channels Separately

    COLOR CORRECTION Histogram Correction – To Correct RGB Channels Separately: 1. Click the “RGB Histograms” button. The “Tone Curves and Histogram” window is expanded to the right and each histogram for “R”, “G” and “B” (figure-lower left) appears. You can close the histogram for each channel by click the “RGB Histograms”...

  • Page 44: To Correct Brightness, Contrast And Color Balance

    COLOR CORRECTION To Correct Brightness, Contrast and Color Balance: 1. Click the “Brightness, Contrast and Color Balance Correction” button. The “Brightness, Contrast and Color Balance Correction” window (figure-lower left) appears. 2. Drag the control of each slide bar with the mouse, or type an appropriate number in each box.
  • Page 45 COLOR CORRECTION If you click “Auto Setting”, “Brightness” and “Contrast” will be automatically adjusted based on the lightness information holding the RGB color balance. You can cancel all kinds of correction performed in the “Brightness, Contrast and Color Balance Correction” window by clicking “Reset”.

  • Page 46: To Correct Hue, Saturation And Lightness

    COLOR CORRECTION To Correct Hue, Saturation and Lightness: 1. Click the “Hue, Saturation and Lightness Correction” button. The “Hue, Saturation, Lightness Correction” window (figure-lower left) appears. 2. Drag the control of each slide bar with the mouse, or type an appropriate number in each box.
  • Page 47 COLOR CORRECTION If you click “Auto Setting”, “Saturation” will be automatically corrected focusing on conspicuous parts of the image and holding “Hue” and “Lightness” as they are. You can cancel all kinds of correction performed in the “Hue, Saturation, Lightness Correction” window by clicking “Reset”.

  • Page 48: Variation Correction

    COLOR CORRECTION Variation Correction: You can perform corrections of “Color Balance”, “Brightness & Contrast” and “Saturation” while checking the finishing (the image after corrections) on simulation images. 1. Click the “Variation Correction” button. The “Variation” window (figure-lower left) appears. 2. Select the desired variation option from the drop-down list of the “Select Variations”...

  • Page 49: Variation Correction - Color Balance

    COLOR CORRECTION Variation Correction – Color Balance: “Adjust Correction Level” slide bar “Display Limit” checkbox If you selected the “Color Balance” variation option, showing the “Current” image in the center, six other simulation images are displayed for “Red (R)”, “Magenta (M)”, “Blue (B)”, “Cyan (C)”, “Green (G)” and “Yellow (Y)”, where each simulation image has been corrected by one level up to the “Current”...

  • Page 50: Variation Correction - Brightness & Contrast

    COLOR CORRECTION Variation Correction – Brightness & Contrast: “Adjust Correction Level” slide bar “Display Limit” checkbox If you selected the “Brightness & Contrast” variation option, showing the “Current” image in the center, eight other simulation images are displayed, where each simulation image has been corrected by one level (“Less”, “Current”...

  • Page 51: Variation Correction - Saturation

    COLOR CORRECTION Variation Correction – Saturation: “Adjust Correction Level” slide bar “Display Limit” checkbox If you selected the “Saturation” variation option, showing the “Current” image in the center, two other simulation images are displayed in the horizontal direction, where each simulation image has been corrected by one level (“Less”...

  • Page 52: To Undo The Correction

    COLOR CORRECTION To Undo the Correction: Click the “Undo” button. You can cancel the current image correction and return the image to the previous status. You can keep cancelling corrections you made by clicking the button repeatedly as far as your computer memory capacity allows.

  • Page 53: Snapshot

    COLOR CORRECTION Snapshot: You can save the preview image displayed in the corrected image display area temporarily in the snapshot display area. If you save the snapshot at each phase of correction, you can quickly preview the image under each correction status. Click the “Snapshot”...

  • Page 54: Color Correction Job

    COLOR CORRECTION Color Correction Job: You can register color correction contents in each correction window as the “Color Correction Job”. If you have a fixed correction pattern (to some extent), you can easily perform the fixed color correction pattern by registering the series of correction contents as the color correction job and simply selecting the job.
  • Page 55 COLOR CORRECTION To apply the registered color correction job to other images, perform the following operations: 1. Display the image that you wish to apply the series of color corrections in the “Correction Image Display” area. 2. Click the “Select a Color Correction Job”...

  • Page 56: To Compare The Pre/Post Correction Images

    COLOR CORRECTION To Compare the Pre/Post Correction Images: Click the “Pre/Post Correction Comparison” button. You can check the correction result by comparison with the pre-correction image that appears in the left with the post-correction image in the right. If you click the “Pre/Post Correction Comparison” button again, the pre-correction image disappears and only the post-correction image remains.

  • Page 57: To Display The Whole Post-Correction Image

    COLOR CORRECTION To Display the Whole Post-Correction Image: Click the “Whole Image” button. The whole post-correction image is expanded or shrunken according to the main window size, and displayed in the corrected image display area. If you click the “Whole Image” button again, it returns to the original-sized image. - 57 -...

  • Page 58: Thumbnail Number Display

    COLOR CORRECTION Thumbnail Number Display: If you selected the image folder (see page 19), the total number of images in the folder and the frame number of the image currently displayed. frame number of the image total number of images in the currently displayed (opened) folder If you click “...

  • Page 59: Rgb Value Display

    COLOR CORRECTION RGB Value Display: The RGB values are displayed for the current mouse pointer location on the preview image in the corrected image display area. - 59 -...

  • Page 60: Sharpness

    SHARPNESS If you click the “Sharpness” tab, the following sharpness correction window appears. You can set the frequency to be emphasized or the degree to be emphasized while checking those effects on the preview image. 1. Drag the “Frequency to be” slide bar control with the mouse to select the frequency that you wish to emphasize the sharpness.
  • Page 61 SHARPNESS If you check the “Preview” checkbox, you can execute the real time reflection of the correction effect to the preview image in the sharpness correction window. You can select display magnification out of six options; 100%, 66.7%, 50%, 33.3%, 25% and 16.7%. If you click the “+”...

  • Page 62: Quiting The Software

    QUITING THE SOFTWARE Click the “Close” box in the main window (the “X” button on the upper right-hand corner of the main window for Windows®, and the “ ” button on the far left corner of the title bar for Macintosh).

  • Page 64: Arcsoft Photoimpression

    ArcSoft PhotoImpression™ ArcSoft PhotoImpression™ is an easy-to-use photo-editing program specifically designed for general consumers. System Requirements: System Requirements: For PC: For Macintosh: • Pentium-based PCs or equivalent • PowerPC • Windows ® 95/98/Me/2000/NT • Mac OS 8.5 - 9.1 • 32MB RAM •...
  • Page 65 ArcSoft PhotoImpression™ Installing PhotoImpression: For Macintosh: 1. Insert the ArcSoft PhotoImpression CD-ROM into your CD-ROM drive. A CD-ROM icon appears on the screen. 2. Double-click the CD-ROM icon to open it. 3. Double-click on the folder of the language you want to install to open it. 4.
