Bionaire BCM7255-CN Instruction Leaflet

BCM7255CN06EFM3.qxd 8/24/06 09:44 Page 1
HUMIDIFIER SAFETY
PLEASE READ AND SAVE
THESE IMPORTANT SAFETY

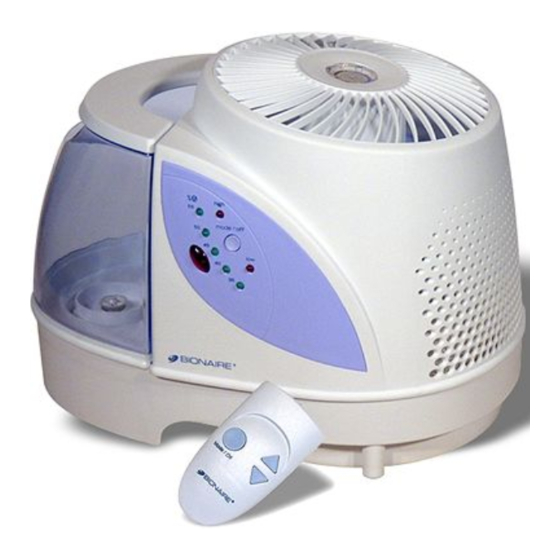

COOL MIST
Digital
Humidifier
IMPORTANT SAFEGUARDS
BCM7255-CN
MODEL
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following:
1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance
directly into a 120V AC electrical outlet.
3. Keep the cord out of heavy traffic areas. To avoid fire
hazard, NEVER put the cord under rugs or near heat
registers.
4. DO NOT place humidifier near heat sources such as
stoves, radiators, and heaters. DO locate your
humidifier on an inside wall near an electrical outlet.
The humidifier should be at least 4" away from the wall
for best results.
5. NEVER place humidifier in an area where it is accessible
to children. NEVER use humidifier in a closed room,
particularly where a child may be sleeping, resting, or
playing (a closed room may result in excessive humidity).
6. WARNING: Do not attempt to refill humidifier without first
unplugging the unit from its electrical outlet. Failure to
heed this warning may cause personal injury. Be sure to
unplug the unit by pulling on the plug and not the cord.
7. Never place anything over moisture outlet when the
unit is running.
8. NEVER drop or insert any object into any openings.
DO NOT place hands, face or body directly over or
near Moisture Outlet while unit is in operation. DO NOT
cover Moisture Outlet while the unit is operating.
9. DO NOT operate any appliance with a damaged cord
or plug, after the appliance malfunctions, or if it has
been dropped or damaged in any manner. Return
appliance to manufacturer for examination, electrical or
mechanical adjustment, or repair.
Filter # : BWF100P
10.Use appliance only for intended household use as
Read instructions before operating.
described in this manual. Any other use not
Retain for future reference.
recommended by the manufacturer may cause fire,
Instruction Leaflet
electric shock, or injury to persons. The use of
attachments not recommended or sold the
manufacturer may cause hazards.
INFO-LINE
11.DO NOT use outdoors.
If after having read this leaflet, you have any
12.Always place humidifier on a firm, flat, level surface. A
questions or comments on your humidifier,
waterproof mat or pad is recommended for use under
call 1-800-253-2764 in North America.
the humidifier. NEVER place it on a rug or carpet, or on
a finished floor that may be damaged by exposure to
water or moisture.
9100030004242
PERMAtech TM FILTER CLEANING INSTRUCTIONS DAILY MAINTENANCE
1. The water tray should be cleaned 1. Before cleaning, push the Digital button for 2 seconds
Figure 4
when you clean the filter. The to turn the unit OFF and disconnect from the electrical
water tray is a convenient way to outlet.
carry the filter to prevent dripping.
2. Remove the housing and the tank from the humidifier
2. Mix 1 gallon warm tap water with and place in sink or tub.
1 teaspoon concentrated
3. Carry the base of the unit to the sink, remove the wick
antibacterial liquid dish washing
holder and wicks, place in sink, drain any remaining
soap.
water and rinse thoroughly to remove any sediment or
3. Fully submerge filter in soap dirt. Wipe clean, and dry with a clean cloth or paper
solution for 15-20 minutes. towel. NOTE: the base and wick holder are dishwasher
safe TOP RACK ONLY.
4. Dunk filter in soap solution several times then gently
press to release the soapy water. Be sure not to wring, 4. Drain the water from the tank into the sink and rinse
pull or scrub filter as this will degrade the filter. tank thoroughly. Wipe clean, and dry with a clean cloth
or paper towel.
5. Run under cool tap water until there is no soap
remaining. Some discoloration may still be visible, this is 5. Put filters back in wick holder, replace on base, replace
normal and does not affect performance. the housing, then refill tank with cool tap water as
instructed earlier in the Filling Instructions. Do not
6. Gently shake or press the filter to remove excess water.
overfill.
7. The filter can be put directly into the humidifier while still
6. Follow Operating Instructions.
damp if it is to be used right away, or allow filter to dry
completely if humidifier is to be stored.
WEEKLY MAINTENANCE
Should your filter become damaged or lost, please call
To Remove Scale:
the customer service number listed in the manual for a
replacement part. The part number for this filter is: 1. Repeat steps 1-4 above.
BWF100P.
2. Clean the base by partially filling the base with one
8-oz cups of undiluted white vinegar, or by using
CLEANING AND MAINTENANCE INSTRUCTIONS Clean-Away
Leave this solution in the base for 20 minutes, while
Humidifiers provide comfort by adding moisture to dry,
cleaning the all interior surfaces with a soft brush.
heated indoor air. To benefit most from the humidifier
Remove base scale by wiping the base with a cloth
and avoid product misuse, follow all instructions carefully.
dampened with undiluted white vinegar.
Please note that this is an electrical appliance and
3. Rinse with clean warm water to remove the cleaning
requires attention when in use.
solution before disinfecting the tank.
In addition, if you do not follow the recommended care
To Disinfect Humidifier Base and Tank:
and maintenance guidelines, micro-organisms may be
1. Fill humidifier base with 1/4 gallon of water and 1/2
able to grow in the water within the water tank. You must
teaspoon of chlorine bleach.
routinely follow the cleaning procedures that follow in
2. Fill the tank 1/2 full with water and 1/2 teaspoon of
order to ensure proper, efficient operation of your
chlorine bleach.
humidifier. Proper maintenance and cleaning is essential
to the continued performance of your unit and the 3. Let the solution stand for 20 minutes, swishing every
few minutes. Wet all surfaces.
avoidance of algae or bacteria build-up.
4. Carefully empty the base and tank after 20 minutes,
and rinse with water until you cannot detect any bleach
smell. Dry with a clean cloth or paper towel.
5. Check the FilterClean
filters.
6. Refill the water tank as directed with cool tap water,
replace the humidifier housing, and turn the unit on.
13.DO NOT allow the Moisture Outlet to directly face the
wall. Moisture could cause damage, particularly to wall
paper.
14.Humidifier should be unplugged when not in use.
15.NEVER tilt, move, or attempt to empty unit while it is
operating. Shut off and unplug before removing the
INSTRUCTIONS
water tank and moving the unit. If you have a warm
mist humidifier, DO NOT attempt to remove the water
tank within 15 minutes after the humidifier is turned off
and unplugged. Serious injury may result.
16.This humidifier requires daily and weekly maintenance to
operate appropriately. Refer to daily and weekly cleaning
procedures. Use only cleaners and additives
recommended by the manufacturer. Never use gasoline,
glass cleaner,furniture polish, paint thinner, or other
household solvents to clean any part of the humidifier.
17.Excessive humidity in a room can cause water
condensation on windows and some furniture. If this
happens, turn the humidifier OFF.
18.Do not use humidifier in an area where humidity level is
in excess of 50%. Use a hygrometer, available at your
local retailer or through the manufacturer to measure
the humidity.
19.DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void your
warranty. The inside of the unit contains no user
serviceable parts. All servicing should be performed by
qualified personnel only.
20.Never place housing under water flow, or immerse in
liquids.
21.DO NOT plug in the cord with wet hands, electric shock
could result.
22.DO NOT pour water in any openings other than the
water tank.
23.If you have a warm mist humidifier, allow unit to cool
before refilling water tank or maintenance as the heater
bulb is hot.
24.To prevent damage to surfaces, do not place humidifier
under overhanging surfaces.
25.NEVER operate unit without water in the tank.
26.Do not move unit after it has been used until unit cools
completely.
27.Use both hands when carrying full tank of water.
STORAGE INSTRUCTIONS
When not using your humidifier for an extended period of
time:
1. Do not leave filters in unit.
2. Clean, rinse and thoroughly dry the humidifier as
directed in weekly maintenance. DO NOT leave any
water in the unit when storing. Leaving water in the
unit may render the unit inoperable for the following
season.
3. Place the humidifier in the original carton and store in
a cool, dry place.
4. Follow cleaning instructions before and after storing
filters.
SERVICE INSTRUCTIONS
1. Do NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void the
warranty. The inside of the unit contains no user
serviceable parts. All servicing should be performed by
qualified personnel only.
2. If you need to exchange the unit, please return it in its
original carton, with a sales receipt, to the store where
you purchased it. If you are returning the unit more than
30 days after the date of purchase, please see the
enclosed warranty.
3. Should your humidifier require service, please call
1-800-253-2764 in North America for further assistance.
TM Solution (DMS216) by the manufacturer.
4. If you have any other questions or comments, feel free
to write to us or visit our website www.bionaire.com
Bionaire
JCS/THG, LLC
303 Nelson Avenue
Neosho, MO 64850
TM to see if it is time to wash the
can be damaged by moisture or water. Place on a
PLEASE SAVE THESE
moisture-resistant surface.
INSTRUCTIONS
FILLING THE WATER TANK
CONSUMER SAFETY INFORMATION 1. Remove the tank from the base of the humidifier and
bring to the faucet. Turn the tank upside down and
NOTE: This is an electrical appliance and requires
twist off the tank cap by turning counter clockwise. Fill
attention when in use.
tank with cool, fresh tap water. DO NOT fill with warm
NOTE: If moisture forms on the walls or windows of the water as this may cause leaking. Replace the cap on
tank FIRMLY.
room, turn off the humidifier. The room already has plenty
of humidity and additional moisture may cause damage.
2. When full, carry tank to the humidifier and place onto
the base. The tank holds 3/4 gallon of water and the
NOTE: DO NOT block air inlet or outlet.
base holds 1/4 gallon of water. The tank will
THIS PRODUCT IS EQUIPPED
immediately begin to empty into base.
WITH A POLARIZED PLUG (a
3. Plug the power cord into a 120V AC electrical outlet.
plug having one blade wider than
the other). This plug will fit into the
Figure 1
power outlet only one way. If the
plug does not fit fully into the
Reservoir Handle
outlet, reverse the plug. If it still does
not fit, contact qualified personnel to install the proper outlet.
DO NOT DEFEAT THE SAFETY PURPOSE OF THIS
POLARIZED PLUG IN ANY WAY.
The length of cord used on this appliance was selected to
reduce the hazards of becoming tangled in, or tripping over
a longer cord. If a longer cord is necessary, an approved
Water Reservoir
extension cord may be used. The electrical rating of the
extension cord must be equal to or greater than the rating of
the humidifier. Care must be taken to arrange the
extension cord so that it will not drape over the countertop
or tabletop where it can be pulled on by children or
OPERATING INSTRUCTIONS
accidentally tripped over.
Your humidifier is equipped with a technologically advanced
HOW COOL MIST WORKS Digital Electronic Humidistat. You can set the humidifier to
run continuously in manual mode or set the Digital Electronic
Your Bionaire ® Cool Mist humidifier draws dry air through
Humidistat to your desired humidity setting. The Digital
the rear air intake grill area. This air is then passed through
Electronic Humidistat will automatically turn the humidifier
2 moisture–laden wick filters which retains the minerals and
ON or OFF, depending on the preset comfort level. The
deposits. The resulting moist air is directed back into the
comfort level ranges between 35% and 55% relative
room from the top air grill.
humidity.
NOTE: This humidification system provides a cool, invisible
moisture output. It is normal not to see the mist.
MANUAL MODE INSTRUCTIONS
NOTE: A humidity level below 20% can be unhealthy and
1. Plug the humidifier into a 120V AC electrical outlet.
uncomfortable. The recommended humidity level is between
2. To start the unit, push the mode
40%-50%.
HIGH (II) manual setting. (See Figure 2)
3. Press the button again for the LOW (I) manual setting.
BEFORE USE (PRE-OPERATING INSTRUCTIONS)
(See Figure 2)
1. Be sure the humidifier is switched to OFF and the unit
4. To stop the unit, press and hold the button for two
is disconnected from the electrical outlet.
seconds, or keep pressing the button until all the
2. Take housing off base and remove foam packing
humidity indicators are OFF.
beneath the housing. Place housing back on base.
NOTE: In Manual Mode, only the LOW (I) or HIGH (II)
3. Select a location for your humidifier, on a flat surface,
power light will be lit.
about 4" away from the wall. DO NOT place the
humidifier on a finished floor or near furniture, which
TWO (2) YEARS LIMITED WARRANTY
Frequently Asked Questions
SAVE THIS WARRANTY INFORMATION
Question Answer
• What are the variables that The estimated run time for this humidifier is based on
A. This Warranty applies only to the original purchaser of
affect run time? average room conditions. The actual run time of your
this product.
humidifier is dependent on numerous variables such as:
Air exchange in the room where the humidifier is placed.
B. This Warranty applies ONLY to repair or replacement of
Room construction of the room where the humidifier is
any supplied or manufactured parts of this product that,
placed.
Temperature of the room where the humidifier is placed.
upon inspection by JCS/THG, LLC authorized personnel,
Humidity levels in the room where the humidifier is
placed. is shown to have failed in normal use due to defects in
Movement of occupants and the opening and closing of
material or workmanship. JCS/THG, LLC will determine
doors in the room where the humidifier is placed.
Home furnishings in the room where the humidifier is whether to repair or replace the unit. This Warranty
placed.
does not apply to installation expenses.
• How do I remove film on See Daily Maintenance instructions. Regular cleaning is
C. Operating this unit under conditions other than those
water tank? recommended.
recommended or at voltages other than the voltage
• How can I extend the run Run your unit on the lowest setting.
indicated on the unit, or attempting to service or modify
time? If your unit has electronics, set it to your desired humidity
level. The unit will turn on and off, which will extend the
the unit, will render this WARRANTY VOID.
run time.
Fill the tank all the way full, place it on the base, let the
D. Unless otherwise proscribed by law, JCS/THG,
water empty into the base until it stops bubbling, then
refill the tank full again. This ensures maximum water
LLC shall not be liable for any personal injury,
capacity and will extend run time.
property or any incidental or consequential
damage of any kind resulting from malfunctions,
defects, misuse, improper installation or alteration
Troubleshooting
of this product.
Problem Solution
E. All parts of this product excluding filters, which are
• Unit does not turn on. Drain water from base and allow unit to dry for
covered under separate warranty, are guaranteed for a
15 minutes.
Check circuit breaker. period of 2 years as follows:
• Mist output minimal to Wait 15 minutes before starting humidifier.
1. Within the first 30 days from date of purchase, the
none. See Weekly Maintenance under Cleaning and
Maintenance Instructions. Regular cleaning is store from which you purchased your product
recommended to keep the unit functioning properly.
should replace this product if it is defective in
Raise the level of humidity by adjusting
the humidistat (see Operating Instructions). material or workmanship (provided the store has
Follow filter cleaning instructions in manual.
in-stock replacement.) If you intend to assert any
• Water leaks from tank. Remove tank cap then replace or reposition ring. claim in connection with the product, please follow
Tighten the cap.
the instructions in paragraph F.
• Filter turns brown. Follow filter cleaning instructions in manual.
In areas with hard water the filter will need to be 2. Within the first 24 months from date of purchase,
changed more frequently.
JCS/THG, LLC will repair or replace the product if it
• Film on water tank. See Daily Maintenance under Cleaning and is defective in material or workmanship, subject to
Maintenance instructions. Regular cleaning is
the conditions in paragraph G.
recommended to keep the unit functioning properly.
To order Clean-Away TM Solution (DMS216),
F. If you have any other problem or claim in connection
call 1-800-253-2764, or visit www.bionaire.com.
with this product, please write to our Consumer Service
• Water in tanks appears Follow filter cleaning instructions in manual.
Department.
cloudy. Use cool water to fill the water tank and only use
Bionaire ® care products recommended in this manual.
G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty
• Unit cycles on/off. Set the Digital Electronic Humidistat to a higher
depends on your following these instructions if you are
or lower desired setting.
returning the unit to JCS/THG, LLC:
Add liquid soap to cap gasket to ease opening.
• Very tight tank cap.
1. Carefully pack the item in its original carton or other
suitable box to avoid damage in shipping.
2. Before packing your unit for return, be sure to
enclose:
a) Your name, full address with zip code and
telephone number
DIGITAL HUMIDISTAT INSTRUCTIONS
To take advantage of the Digital Electronic Humidistat,
press the mode button until the speed is set in either
the HIGH (II) or LOW (I) setting, and the desired Humidity
is set. When the humidity level rises above the set
humidity, the humidifier will stop. When the humidity level
drops below the set humidity, the humidifier will turn on
automatically.
NOTE: When the Digital Electronic Humidistat is set, either
the HIGH (II) or LOW (I) power light and the percent
humidity light will remain lit during operation. (See Figure 2)
Figure 2
A
Filter Monitor
Control Panel
A. LEFT LEDS
Housing B. RIGHT LEDS
D
C. mode BUTTON
D. RC SENSOR LENS
NOTE: Allow up to 30 minutes for the filter to fully absorb
water and for the unit to produce moisture.
NOTE: The Digital Humidifier has memory. This means
that when you turn the unit back on, it will be at the last
setting the humidifier was set at.
If you do not plan to use the humidifier for two or more
Wick Holder
days, make sure any residual water is drained from the
water tank, base and wick filter to prevent algae or
bacteria growth.
REMOTE INSTRUCTIONS
1. Insert 2 AAA batteries into
back of remote control.
2. Press the button on remote
to begin operation.
3. Use the remote to control
the same features as the
base unit.
NOTE: Do not mix new and old
batteries. Do not mix alkaline,
button once for the
standard (carbon-zinc), or rechargeable (nickel-cadmium)
batteries.
b) A dated sales receipt or PROOF OF PURCHASE,
c) Your $10.00 check for return shipping and
handling, and
d) The model number of the unit and the problem
you are having. (Enclose in an envelope and tape
directly to the unit before the box is sealed.)
3. JCS/THG, LLC recommends you ship the package
U.P.S. ground service for tracking purposes.
4. All shipping charges must be prepaid by you.
5. Mark the outside of your package:
Bionaire
JCS/THG, LLC
303 Nelson Avenue
Neosho, MO 64850
SHIPPING AND HANDLING CHARGES: $10.00 (USD)
This Warranty gives you specific legal rights, and you may
have other rights which vary from state to state. The
provisions of this Warranty are in addition to, and not a
modification of, or subtraction from, the statutory
warranties and other rights and remedies contained in any
applicable legislation. To the extent that any provision of
this Warranty is inconsistent with any applicable law, such
provision shall be deemed voided or amended, as
necessary, to comply with such law.
© 2006 JCS/THG, LLC
Bionaire ® , the Bionaire logo TM , PERMAtech
and Clean-Away TM are trademarks of JCS/THG, LLC.
BCM7255CN06EFM3
B
C
B
Figure 3
TM , FilterClean TM
Printed in China
