Bionaire BCM630 Instruction Leaflet

BCM630-CN05EFM1.qxd 5/22/06 2:58 PM Page 1
HUMIDIFIER SAFETY
PLEASE READ AND SAVE
THESE IMPORTANT

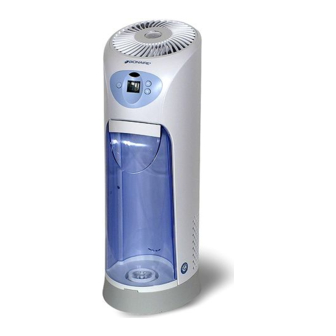

TOWER
cool moisture
SAFETY INSTRUCTIONS.
humidifier
BCM630
MODEL
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following:
1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance directly
into a 120V AC electrical outlet.
3. Keep the cord out of heavy traffic areas. To avoid fire
hazard, NEVER put the cord under rugs or near heat
registers.
4. DO NOT place humidifier near heat sources such as
stoves, radiators, and heaters. Locate your humidifier
on an inside wall near an electrical outlet. The humidifier
should be at least 4" away from the wall for best results.
5. NEVER place humidifier in an area where it is accessible
to children. NEVER use humidifier in a closed room,
particularly where a child may be sleeping, resting, or
playing (a closed room may result in excessive humidity).
6. WARNING: Do not attempt to refill humidifier without
first unplugging the unit from its electrical outlet.
Failure to heed this warning may cause personal injury.
Be sure to unplug the unit by pulling on the plug and
not the cord.
7. Never place anything over moisture outlet when the unit
is running.
8. NEVER drop or insert any object into any openings
unless instructed in this manual.
9. DO NOT operate any appliance with a damaged cord
or plug, after the appliance malfunctions, or if it has
been dropped or damaged in any manner. Return
appliance to manufacturer for examination, electrical or
mechanical adjustment, or repair.
Read instructions before operating.
10.Use appliance only for intended household use as described
Retain for future reference.
in this manual. Any other use not recommended by the
Instruction Leaflet manufacturer may cause fire, electric shock, or injury to
persons. The use of attachments not recommended or
sold by the manufacturer may cause hazards.
INFO-LINE
11.DO NOT use outdoors.
If after having read this leaflet, you have any questions
12.Always place humidifier on a firm, flat, level surface.
or comments on your humidifier,
A waterproof mat or pad is recommended for use
call 1-800-253-2764 in North America.
under the humidifier. NEVER place it on a rug or carpet,
9100020005059
or on a finished floor that may be damaged by exposure
to water or moisture.
WEEKLY MAINTENANCE SERVICE INSTRUCTIONS
Remove scale: 1. Do NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void the
1. Repeat steps 1-4 above.
Warranty. The inside of the unit contains no user serviceable
2. Clean the base by partially filling the base with one 8-oz
parts. All servicing should be performed by qualified
cup of undiluted white vinegar, or use Clean-Away TM by
personnel only.
Bionaire ® . Let solution stand 20 minutes, cleaning all the
2. If you need to exchange the unit, please return it in its
interior surfaces with a soft brush. Dampen a cloth with
original carton, with a sales receipt, to the store where
undiluted white vinegar and wipe out entire base to
you purchased it. If you are returning the unit more than
remove scale.
30 days after the date of purchase, please see the
3. Rinse with clean warm water to remove scale and the white
enclosed Warranty.
vinegar solution before beginning to disinfect the tank.
3. Should your humidifier require service, please call
Disinfect TANK: 1-800-253-2764 in North America for further
assistance.
1. Fill water tank with 1 teaspoon of chlorine bleach and 1
gallon of water. 4 . If you have any other questions or comments, feel
free to write to us or visit our website
2. Let the solution stand for 20 minutes, swishing every few
www.bionaire.com
minutes. Wet all surfaces.
3. Empty the reservoir after 20 minutes, and rinse well with
Bionaire ®
water until the bleach smell is gone. Dry with a clean
JCS/THG, LLC
cloth or paper towel.
303 Nelson Avenue
4. Check to see if it is time to change the wick filter.
Neosho, MO 64850
5. Refill the water tank with cool water, replace the humidifier
housing and the water tank. Repeat Operating Instructions.
STORAGE INSTRUCTIONS
If your humidifier will not be in use for two days or more,
or at the end of the season follow these instructions.
1. Clean and dry the humidifier thoroughly as per the
"Weekly Maintenance" instructions.
2. Let the humidifier dry completely before storing. Do not
store with water inside the base or water tank.
3. Remove the tank cap. Do not store with the tank cap in
place.
4. Store in a cool dry location.
13.DO NOT allow the Moisture Outlet to directly face the wall. PLEASE READ AND SAVE
Moisture could cause damage, particularly to wall paper.
THESE IMPORTANT
14.Humidifier should be unplugged when not in use.
15.NEVER tilt, move, or attempt to empty unit while it is SAFETY INSTRUCTIONS
operating. Shut off and unplug before removing the
water tank and moving the unit.
CONSUMER SAFETY INFORMATION
16.This humidifier requires daily and weekly maintenance
THIS PRODUCT IS EQUIPPED
to operate appropriately. Refer to daily and weekly
WITH A POLARIZED PLUG
cleaning procedures. Use only cleaners and additives
(a plug having one blade wider
recommended by the manufacturer.
than the other). This plug will fit
17.NEVER use detergents, gasoline, glass cleaner, furniture
into the power outlet only one
polish, paint thinner, or other household solvents to
way. If the plug does not fit fully
clean any part of the humidifier.
into the outlet, reverse the plug. If it still does not fit,
18.Excessive humidity in a room can cause water
contact qualified personnel to install the proper outlet.
condensation on windows and some furniture. If this
happens, turn the humidifier OFF.
DO NOT DEFEAT THE SAFETY PURPOSE OF THIS
19.Do not use humidifier in an area where humidity level is
POLARIZED PLUG IN ANY WAY
in excess of 50%. Use a hygrometer, available at your
The length of cord used on this appliance was selected to
local retailer or through the manufacturer, to measure
the humidity. reduce the hazards of becoming tangled in, or tripping over a
longer cord. If a longer cord is necessary an approved extension
20.DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void cord may be used. The electrical rating of the extension cord
your warranty. The inside of the unit contains no user must be equal to or greater than the rating of the humidifier.
serviceable parts. All servicing should be performed by Care must be taken to arrange the extension cord so that it
qualified personnel only.
will not drape over the countertop or tabletop where it can
be pulled on by children or accidentally tripped over.
21.Never place housing under water flow or immerse in liquids.
22.Do not plug in the cord with wet hands: electric shock This device complies with Part15 of the FCC Rules.
could result. Operation is subjected to the following two conditions: (1)
23.Do not pour water in any openings other than the water this device may not cause harmful interference, and (2)
tank. this device must accept any interference received,
including interference that may cause undesired
24.To prevent damage to surfaces, do not place humidifier
operation.
under overhanging surfaces.
25.NEVER operate unit without water in the tank.
HOW COOL MIST WORKS
26.Use both hands when carrying full tank of water.
Your Bionaire ® Cool Mist humidifier draws dry air through
27.Never unplug unit while it is running as arcing may
the rear air intake grill area. This air is then passed
occur and cause injury. Use power switch to turn off
through a moisture–laden wick filter, which retains the
unit before unplugging.
minerals and deposits in the water. The resulting moist air
is directed back into the room from the top air grill.
NOTE: This humidification system provides a cool, invisible
moisture output. It is normal not to see the mist.
NOTE: A humidity level below 20% can be unhealthy and
uncomfortable. The recommended humidity level is
between 40%-50%.
Trouble Shooting for your Cool Mist Humidifier FREQUENTLY ASKED QUESTIONS
Probable Cause Question Answer
Trouble Solution
• What are the variables that The estimated run time for this humidifier is based on
• LED not illuminated. Unit not plugged in. Plug in unit. affect run time? average room conditions. The actual run time of your
Power failure. Check circuit breaker or humidifier is dependent on numerous variables such as:
outlet. Air exchange in the room where the humidifier is placed.
• Mist output minimal to Filter has not Wait 15 minutes before Room construction of the room where the humidifier is placed.
none. absorbed water. starting humidifier.
Mineral buildup in base. Regular cleaning of tray Temperature of the room where the humidifier is placed.
after each use will help
Humidity levels in the room where the humidifier is placed.
keep the unit functioning
properly.
Humidistat is set too low. Set the humidistat to Movement of occupants and the opening and closing of
high. doors in the room where the humidifier is placed.
Wick Filter needs Replace your wick filter
to be replaced. Home furnishings in the room where the humidifier is placed.
(BWF100) by calling
1-800-253-2764, or visit
www.bionaire.com. • How do I remove film on See Daily Maintenance instructions. Regular cleaning is
Normal operation. Mist is invisible. water tank? recommended.
Check to see if inlet or
• How can I extend the run Run your unit on the lowest setting.
outlet grills are blocked
time?
• Water leaks from water Rubber O-ring is missing Remove reservoir If your unit has electronics, set it to your desired humidity
reservoir. or improperly placed. cap then replace level. The unit will turn on and off, which will extend the run
or reposition ring. time.
Reservoir Cap not
Tighten the
tight enough. reservoir cap. Fill the tank all the way full, place it on the base, let the
water empty into the base until it stops bubbling, then refill
• Water Filter turns brown. Your filter needs Replace your wick filter the tank full again. This ensures maximum water capacity
to be changed. (BWF100) by calling and will extend run time.
1-800-253-2764, or visit
www.bionaire.com.
In areas with particular Use Clean-Away TM
hard water your wick Solution (DMS216), to
filter will need to be order call
changed frequently.
1-800-253-2764, or visit
www.bionaire.com.
• Film on water reservoir. Mineral deposits cause Replace your wick filter
film on tank to build up. (BWF100) by calling
1-800-253-2764, or visit
www.bionaire.com.
• Water cloudy. Filter needs Refill using cool water.
to be replaced.
Using warm water
to refill reservoir.
• Humidistat cycles on/off. Humidifier is reacting Set the humidistat to a
to room humidity level. higher or lower setting.
• Very tight reservoir cap. Over tightened. Add liquid soap or
petroleum jelly to cap
gasket to ease opening.
PRE-OPERATING INSTRUCTIONS DIGITAL HUMIDISTAT INSTRUCTIONS
1. Be sure the humidifier is switched to OFF and the unit To take advantage of the Digital Humidistat, press the
is disconnected from the electrical outlet. MODE/OFF button until the speed is set in either the auto
HIGH (A3), auto MEDIUM (A2) or auto LOW (A1) setting.
2. Select a location for your humidifier, on a flat surface,
about 4" away from the wall. DO NOT place the humidifier Then adjust the set humidity by using the up and down
buttons. Humidity will increase or decrease in increments
on a finished floor or near furniture, which can be damaged
by moisture or water. Place on a moisture-resistant surface. of 5%. When the humidity level is set, the display will
return to show the current room humidity. When the
FILLING THE WATER TANK
room humidity level rises above the set humidity, the
1. Remove the tank from the housing of the humidifier by humidifier will stop. When the humidity level drops below
grabbing the handle of the tank and pulling forward. the set humidity, the humidifier will turn on automatically.
Lift the tank out of the housing and bring to the faucet.
NOTE: Allow up to 30 minutes for the filter to fully absorb
Turn the tank upside down and twist off the tank cap
water and for the unit to produce moisture.
by turning counter clockwise. Fill tank with cool, fresh
NOTE: The Digital Humidistat Humidifier has memory.
tap water. DO NOT fill with warm water as this may
This means that when you turn the unit back on, it will be
cause leaking. Replace the cap on tank FIRMLY.
at the last setting the humidifier was set at.
2. When full, carry the tank to the humidifier and place it
into the housing. There is a tab located on the tank If you do not plan to use the humidifier for two or more
days, make sure any residual water is drained from the
base for easy guidance. The tank holds 1.3 gallons of
water. The tank will immediately begin to empty into water tank, base and wick filter to prevent algae or bacteria
the base. growth.
3. Plug the power cord into a 120V AC electrical outlet.
EXTENDED RUN TIME SETTING
OPERATING INSTRUCTIONS
By setting you humidifier to a specific humidity level, you
Your humidifier is equipped with a technologically
are actually also extending the run time. Since the unit will
advanced Digital Humidistat. You can set the humidifier to
turn on and off to maintain the set humidity level, less
run continuously in manual mode or set the Digital
water will be used, so you will need to fill the unit less
Humidistat to your desired humidity setting. The Digital
than you would on manual setting.
Humidistat will automatically turn the humidifier ON or OFF,
depending on the preset comfort level. The comfort level
USING THE PROGRAMMABLE TIMER
ranges between 35% and 65% relative humidity.
Digital Humidistat allows the user to program the
humidifier to come on at a preset time, or turn off after a
MANUAL MODE INSTRUCTIONS
set amount of time.
1. Plug the humidifier into a 120V AC electrical outlet.
2. The display will show the current room humidity.
SETTING THE OFF TIMER
3. To start the unit, push the MODE/OFF button once for
1. Set the mode and/or humidity you wish the humidifier
the HIGH (3) manual setting.
to run in.
4. Press the button again for the MEDIUM (2) manual
2. While the humidifier is running, press and hold the up
setting and again for LOW (1). After the selection is
and down buttons simultaneously for 2 seconds. The
made, the display will return to show the current room
display will flash "00".
humidity.
3. By pressing the up and down buttons, program the
5. To stop the unit, press and hold the button for two
humidifier to turn off up to 16 hours later in increments
seconds, or keep pressing the button until the display
of 1 hour.
reads OFF (OF).
4. After setting the timer, the display will return to show
the current room humidity. The timer light will illuminate
to show that the timer is activated.
5. After the predetermined length of time has passed, the
humidifier will automatically shut off.
TWO (2) YEAR LIMITED WARRANTY b) A dated sales receipt or PROOF OF
PURCHASE,
SAVE THIS WARRANTY INFORMATION
c) Your $12.50 check for return shipping and
A. This Warranty applies only to the original purchaser of
handling, and
this product.
d) The model number of the unit and the problem
B. This Warranty applies ONLY to repair or replacement of
you are having. (Enclose in an envelope and tape
any supplied or manufactured parts of this product that,
directly to the unit before the box is sealed.)
upon inspection by JCS/THG, LLC authorized
personnel, is shown to have failed in normal use due to 3. JCS/THG, LLC recommends you ship the package
U.P.S. ground service for tracking purposes.
defects in material or workmanship. JCS/THG, LLC will
determine whether to repair or replace the unit. This
4. All shipping charges must be prepaid by you.
Warranty does not apply to installation expenses.
5. Mark the outside of your package:
C. Operating this unit under conditions other than those
Bionaire ®
recommended or at voltages other than the voltage
JCS/THG, LLC
indicated on the unit, or attempting to service or modify
303 Nelson Avenue
the unit, will render this WARRANTY VOID.
Neosho, MO 64850
D. Unless otherwise proscribed by law, JCS/THG,
SHIPPING AND HANDLING CHARGES: $12.50 (USD)
LLC shall not be liable for any personal injury,
property or any incidental or consequential This Warranty gives you specific legal rights, and you may
damage of any kind resulting from malfunctions,
have other rights which vary from state to state. The
defects, misuse, improper installation or alteration provisions of this Warranty are in addition to, and not a
of this product.
modification of, or subtraction from, the statutory
warranties and other rights and remedies contained in any
E. All parts of this product excluding filters, which are
applicable legislation. To the extent that any provision of
covered under separate warranty, are guaranteed for a
this Warranty is inconsistent with any applicable law, such
period of 2 years as follows:
provision shall be deemed voided or amended, as
1. Within the first 30 days from date of purchase, the
necessary, to comply with such law.
store from which you purchased your product
should replace this product if it is defective in
material or workmanship (provided the store has in-
stock replacement.) If you intend to assert any claim
in connection with the product, please follow the
instructions in paragraph F.
2. Within the first 24 months from date of purchase,
JCS/THG, LLC will repair or replace the product if it
is defective in material or workmanship, subject to
the conditions in paragraph G.
F. If you have any other problem or claim in connection
with this product, please write to our Consumer Service
Department.
G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty
depends on your following these instructions if you are
returning the unit to JCS/THG, LLC:
1. Carefully pack the item in its original carton or other
© 2006 JCS/THG, LLC
suitable box to avoid damage in shipping.
Bionaire ® , the Bionaire logo ® and Clean-Away™ are
2. Before packing your unit for return, be sure to
trademarks of JCS/THG, LLC.
enclose:
a) Your name, full address with zip code and
telephone number
BCM630CN05EFM1
5. Unlock the wick holder from the base by turning the
Figure 1
lock knob to the unlocked position.
F
6. Remove the wicks from the wick holder.
A. Tank
E 7. Follow the weekly cleaning instructions.
B. Tank Handle
C. Base 8. Insert new filters into the wick holder and lock the wick
B
holder back onto the base.
D. Humidifier
D
9. Replace the housing onto the base and lock it into place.
Housing
10.Fill the tank and place back into housing.
E. Control Panel
11.Repeat Operating Instructions
F. Filter Monitor A
C
It will take about 30 minutes for the humidifier to reach
maximum output.
SETTING THE ON TIMER
You can purchase replacement filters (model
1. While the humidifier is off, press and hold the up and BWF100/HF235 – 2 filters) at your local retailer, by calling
down buttons simultaneously for 2 seconds.
1-800-253-2764, filling out the accessory card, or by
2. By pressing the up and down buttons, program the visiting www.bionaire.com. It is recommended that a
humidifier to turn on up to 16 hours in advance in
replacement filter is purchased for uninterrupted use.
increments of 1 hour.
3. After the preset length of time has passed, the humidifier
CLEANING AND MAINTENANCE INSTRUCTIONS
will automatically turn on Auto Mode HI at 45% for a
Humidifiers provide comfort by adding moisture to dry,
preset time of 2 hours.
heated indoor air. To get the most benefit from the
humidifier and avoid product misuse, follow all instructions
REPLACING THE FILTERS
carefully, specifically the operation, care and maintenance
Through normal use, waterborne minerals and sediment
guidelines. Please note that this is an electrical appliance,
become trapped in the wick filters. The harder your water,
and requires attention when in use.
the greater the amount of minerals in the water, and the
In addition, if you do not follow the recommended care
more often you will be able to monitor the life of your
and maintenance instructions, micro-organisms may be
filters in your humidifier.
able to grow in the water within the humidifier's water
You will be able to monitor the life of the filters in your
tank.You must routinely follow the cleaning procedures
humidifier by checking the Filter Monitor Indicator. After
that follow in order to ensure proper, efficient operation of
60 minutes of use, Filter Monitor Indicator will move and
your humidifier. Proper maintenance and cleaning is
indicate your filters condition. New filters will register in
essential to the continued performance of your unit and
the section reading GOOD filter. After frequent use of
the avoidance of algae or bacteria build-up.
your humidifier, the Filter Monitor Indicator will let you
know when the filters need to be changed (see Figure 2).
DAILY MAINTENANCE
When the needle is in the
1. Be sure the unit is OFF and is disconnected from the
Figure 2
CHANGE section, this means the
electrical outlet.
proper amount of moisture is not
2. Remove the housing and the reservoir from the
getting into your air due to the
humidifier and place in sink or tub.
excessive minerals and sediment
3. Carry the base of the unit to the sink, remove the
that have become trapped on
wicks, place in sink, drain any remaining water and
your filters. At this point, you
rinse thoroughly to remove any sediment or dirt.
should replace your filters. It is important to change your
Wipe clean, and dry with a clean cloth or paper towel.
filters as indicated to obtain stated performance level.
4. Drain the water from the tank into the sink and rinse
tank thoroughly. Wipe clean, and dry with a clean cloth
TO REPLACE THE FILTER, FOLLOW THE STEPS
or paper towel.
BELOW
5. Put filters back in wick frame, replace on base, replace
1. Turn the unit off and disconnect from the electrical outlet. the housing, then refill tank with cool tap water as
2. Remove the tank from the housing. instructed earlier in the Filling Instructions. Do not overfill.
3. Unlock the housing from the base by turning the lock 6. Follow Operating Instructions.
knob to the unlocked position NOTE: The Tray is dishwasher safe (TOP RACK ONLY)
4. Lift the housing straight up and place to the side
for easy cleaning.
Printed In China
