Hardware Description - SMC Networks WMR-AG - annexe 1 Manual

H
ARDWARE

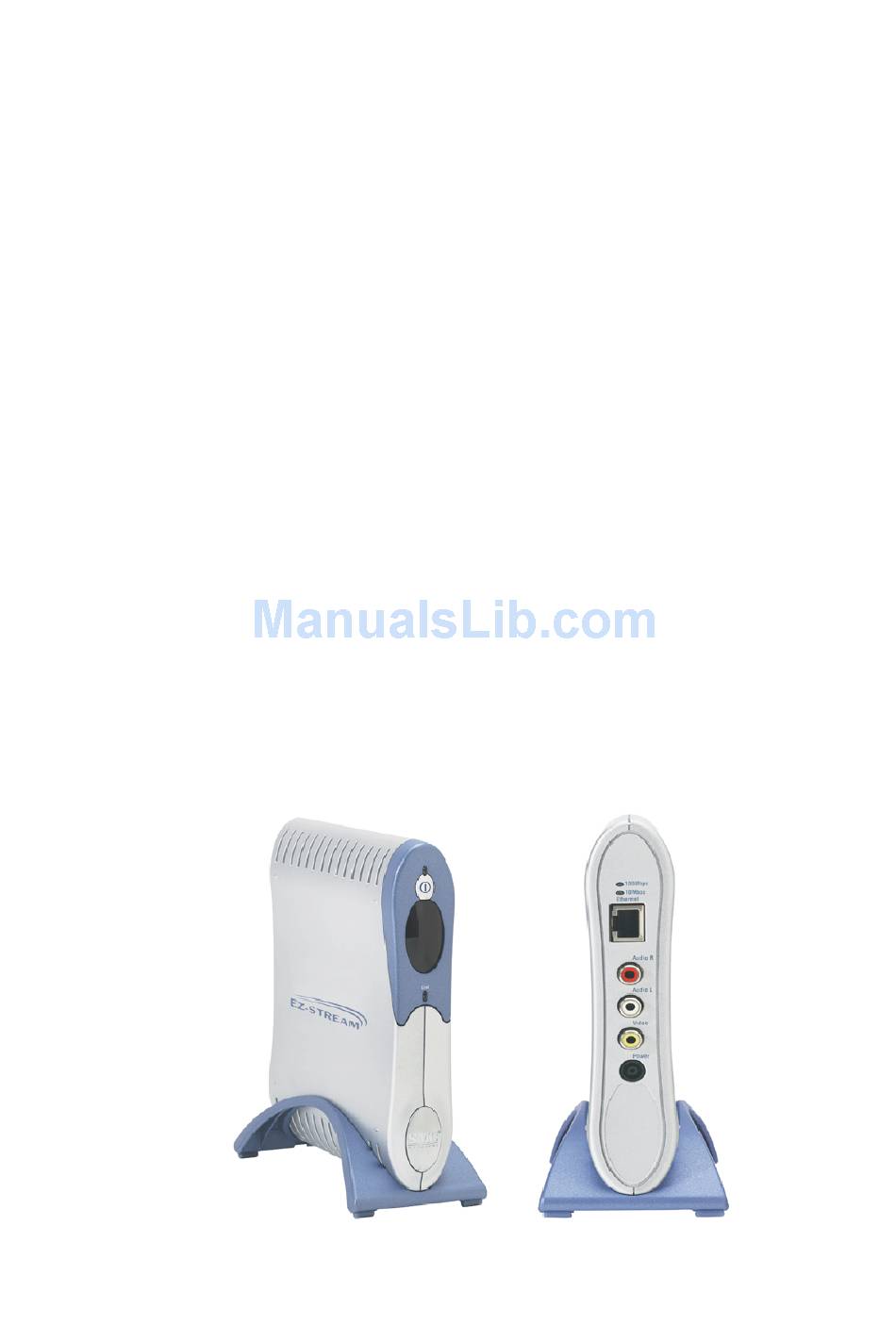

The SMCWMR-AG EZ-Stream™ Universal 2.4GHz/5GHz Universal Wireless
Multimedia Receiver is equipped with:
• 1 RJ-45 connector for 10/100 Mbps connections.
• 4 LED Indicators.
o Power (blue)
Solid LED indicates that the unit is powered on.
No light indicates the unit is powered off.
Blinking LED indicates an active IR session (through the use of
the Remote Control).
o Link (blue)
Solid LED indicates a valid connection to the wireless network
& Media Server.
Blinking LED indicates that the SMCWMR-AG is attempting to
connect to the Media Server.
No light indicates that there is no link to the Media Server.
o 100Mbps (green)
Solid LED indicates a valid 100Mbps network connection.
Blinking LED indicates traffic on the network.
No light indicates that there is no link.
o 10Mbps (green)
Solid LED indicates a valid 10Mbps network connection.
Blinking LED indicates traffic on the network.
No light indicates that there is no link.
D
ESCRIPTION
1
