Note: For International use, you may need to change the AC line cord. You
must use a line cord set that has been approved for the receptacle
type in your country.
3. Check the front-panel LEDs as the device is powered on to be sure the
PWR LED is lit. If not, check that the power cable is correctly plugged
in.

Connecting to the Console Port

The DB-9 serial port on the SMC6824MPE switch's front panel is used to
connect to the switch for out-of-band console configuration. If using a stack,
the connection must be made to the serial port of the Master unit in the
stack. The on-board menu-driven configuration program can be accessed
from a terminal or a PC running a terminal emulation program. The pin
assignments used to connect to the serial port are provided in the following
table.
1
6

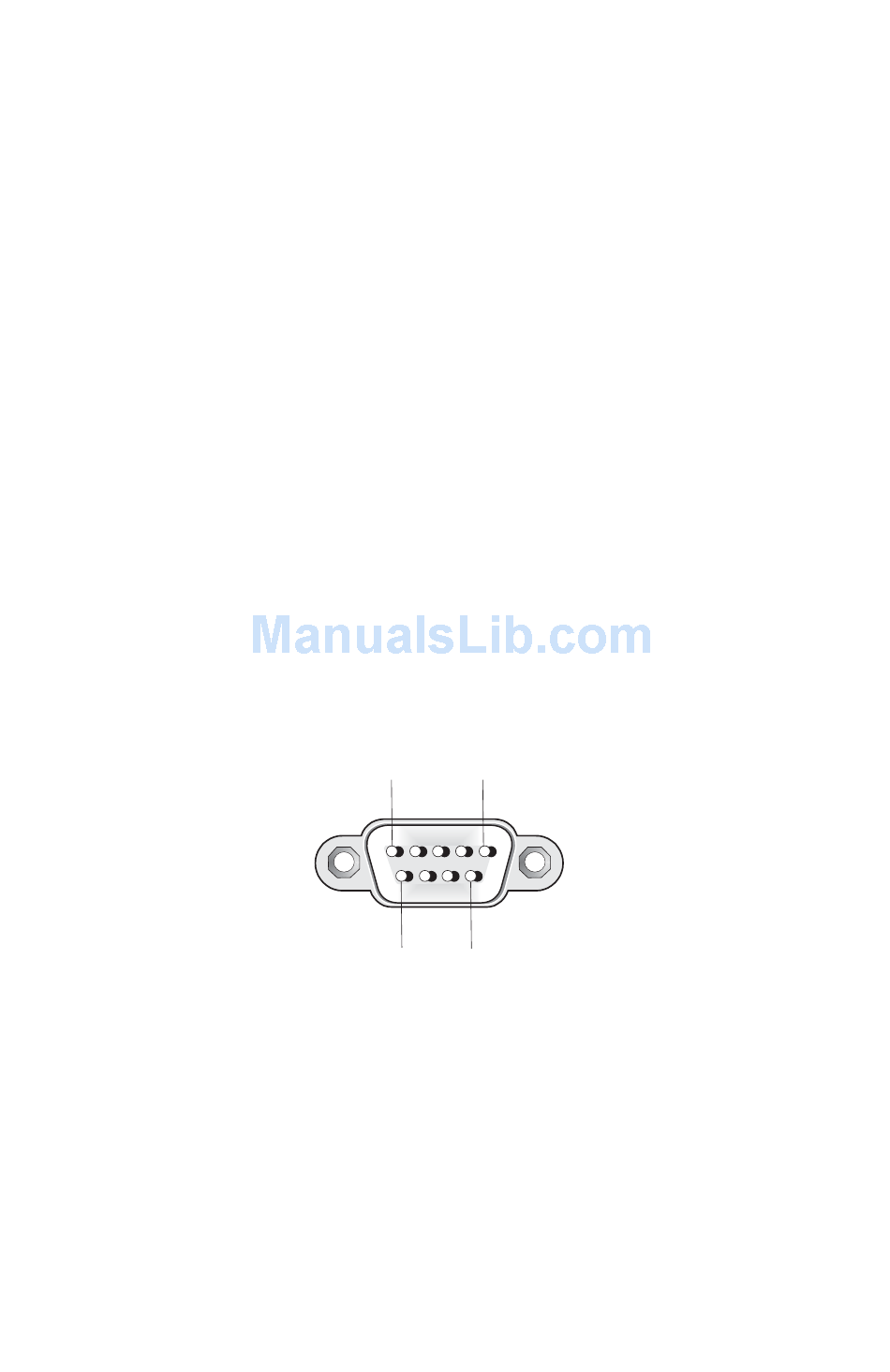

Figure 3-9 Serial Port (DB-9 DTE) Pin-Out

C
ONNECTING TO THE
5
9
C P
ONSOLE ORT
3-11
