NAD T747 Specifications

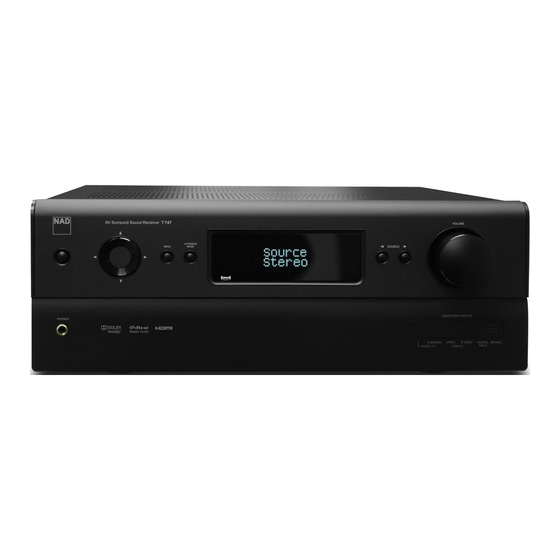

T 747 AV Receiver
> P O S I T I O N I N G > P O S I T I O N I N G
NAD has an enviable reputation for delivering superb value for money, especially when performance is a priority.
this reputation by offering the very latest high defi nition features and performance at a very competitive price.
degree of customization of our higher priced Modular Design Construction AVR's, the T 747 features the same remarkable fl exibility of NAD's
highly refi ned User Interface. And unlike other brands that infl ate their power ratings to impress the unwary, NAD offers Full Disclosure Power
ratings that clearly spell out the capabilities of our products under real world conditions.
> F E A T U R E S
• 7 X 60 watts Simultaneous Full
Disclosure Power
• 7 X 120 watts Minimum Continuous
Power (FTC)
• Auto Setup and Calibration of speaker
settings with supplied microphone
• Data Port for use with optional NAD
Dock for iPod
• Dolby TrueHD and DTS HD Master
Audio lossless decoding
• Dolby Digital Plus, ProLogic IIx, DTS
HD High Resolution Audio, Digital
Surround 96/24, Neo:6
• EARS surround, Enhanced Stereo,
Dolby Virtual
• 5 Custom AV Presets allow instant
recall of unique speaker settings,
listening mode, and tone settings
• AM/FM Tuner with 60 Presets
(30 AM and 30 FM presets)
• Optional DAB (230V) or XM (120V)
Tuner Modules
• 4 HDMI Inputs with Repeater
Function
• Analogue Video Inputs are converted
to digital HDMI Output
• SD signals are converted to HD up to
1080p with onboard Faroudja DCDi
Processing
• 6 Analogue Audio Inputs, plus 7.1
analogue input
• 2 Optical and 2 Coax Digital
Audio Inputs
• 4 Analogue Video (S-Video and
Composite) and 3 Component
Video inputs
• Front Panel Inputs for games,
cameras, etc. include S-Video and
Composite Video, Analogue Audio,
Optical Digital Audio
• 2 Digital Outputs; 1 Optical, 1 Coax
• Zone 2 AV Output with independent
Source and Volume setting
• 2 IR Inputs, 1 IR Output
• RS-232 port interface to advanced
control systems
• 12V Trigger Out
• AVR 3 Remote; 4 Device Control with
NAD code library
• ZR 5 Second Zone Remote
The T 747 will further enhance
Though not offering quite the
> D E T A I L S
Performance
Don't be fooled by the big power ratings of some
very low priced products. All power is not the
same! In fact, the quality of power is far more
important than the quantity of power when it
comes to the realism of your Home Theatre. The
amplifi er section is more important than ever with
the new HD audio formats.
The T 747 has all the performance required to
fi ll an average sized room to satisfyingly realistic
sound levels without the harsh and muddled
sound so common among lesser AVRs. All seven
channels offer the same high performance using
high current discrete output devices.
Video quality is also top notch, whether your
source is analogue Component Video or the
newest HDMI digital format. The onboard
video processing engine is capable of adjusting
older formats to fi t your new HD TV set adding
enjoyment to your existing library of DVDs.
Digital audio processing is handled by the latest
generation of 32bit DSPs and precision Analogue-
to-Digital and Digital-to-Analogue converters.
Specifi c audio quality components are used
throughout the signal path.
continued>
