ZyXEL Communications ZYAIR G-5100 Quick Start Manual

ZyXEL Communications ZYAIR G-5100 Quick Start Manual

Outdoor 802.11g business access point/bridge/repeater
Hide thumbs Also See for ZYAIR G-5100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

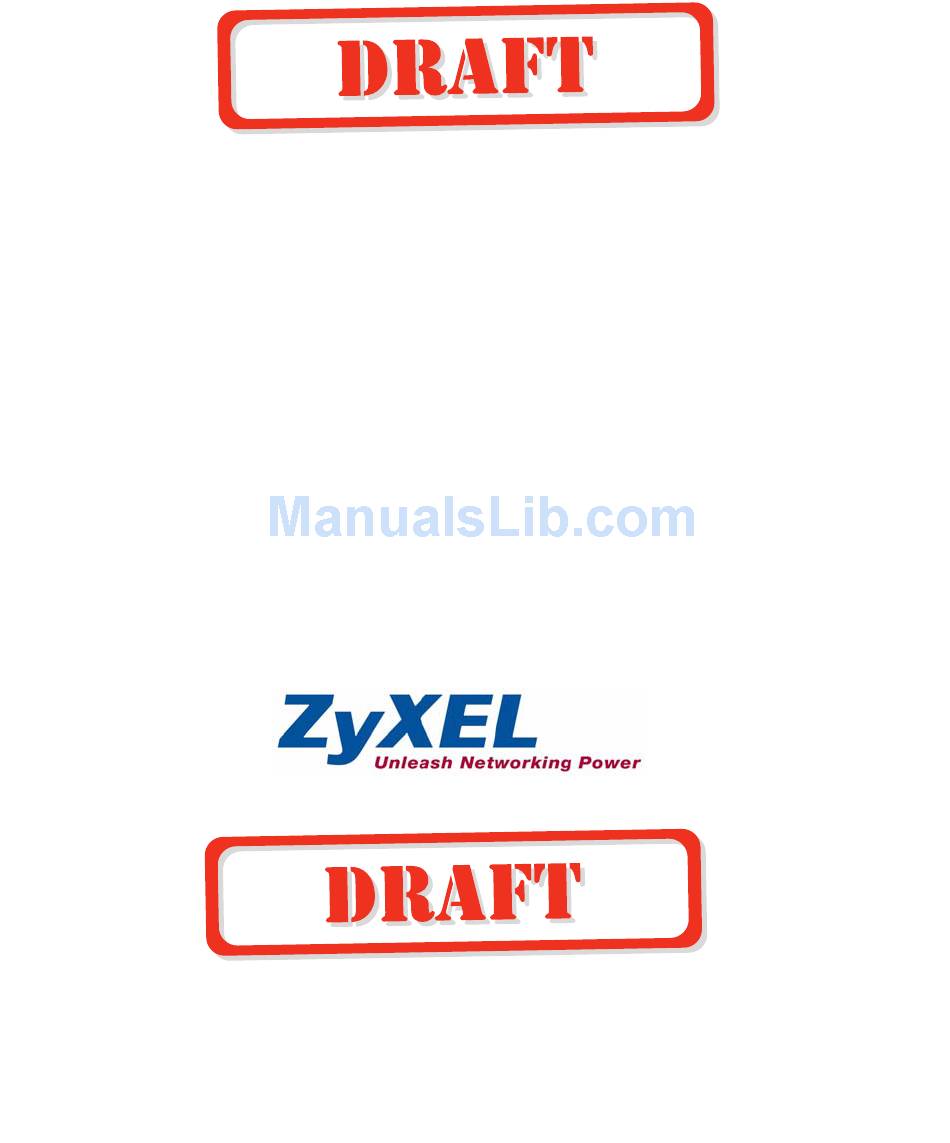

ZyAIR G-5100
Outdoor 802.11g Business Access Point/Bridge/Repeater

Quick Start Guide

Version 3.50
2/2005

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications ZYAIR G-5100

Summary of Contents for ZyXEL Communications ZYAIR G-5100

  • Page 1: Quick Start Guide

    ZyAIR G-5100 Outdoor 802.11g Business Access Point/Bridge/Repeater Quick Start Guide Version 3.50 2/2005...

  • Page 2: Unpacking The Zyair

    ZyAIR G-5100 Overview This Quick Start Guide shows how to set up and configure the ZyAIR to allow wireless clients to access your wired network. See your User’s Guide for background information on all features. 1 Unpacking the ZyAIR 2 Hardware Connections 3 Initial Configuration 4 Hardware Installation 5 Troubleshooting...

  • Page 3: Hardware Connections

    ZyAIR G-5100 Accessories Specification/Description Quantity Inline Power Injector (PoE) Input 100 ~ 240VAC 50/60Hz, Output 800mA at -48VDC Wall-plug AC Power Cord (1.8m) RS232 Console Cable MIL-C-5015 STP (Shielded Twisted Pair) (2.0m) Uplink Ethernet Cable MIL-C-5015 UTP (Unshielded Twisted Pair) (1.8m) Grounding Cable UL1015 (3.0m) RJ45 Ethernet Cable...
  • Page 4 ZyAIR G-5100 1 Use the included spanner (installation tool) to connect the ground cable to the ZyAIR’s frame ground (as shown). Connect the other end of the ground cable to an appropriate grounding system. 2 Remove the backing from both sides of the waterproofing strip.
  • Page 5 ZyAIR G-5100 6 Optional: Use the MIL-C- 5015 style RS-232 console cable to connect the special serial port to a computer running a terminal emulation program. 7 Use a power cord to connect the inline power injector’s power socket to an AC power source.

  • Page 6: Initial Configuration

    ZyAIR G-5100 9 Connect the MIL-C-5015 style Ethernet connector to the special Ethernet port on the bottom of the ZyAIR. Connect the RJ-45 Ethernet connector (the other end of the special Ethernet cable) to the POWER & DATA OUT port on the front of the inline power injector.

  • Page 7: Wizard Setup

    ZyAIR G-5100 3 Change the login password by entering a new 4 Click Apply to replace the ZyAIR’s default digital password and clicking Apply. certificate. 5 Click WIZARD SETUP in the MAIN MENU screen. 3.1 Wizard Setup Use the setup wizard to configure your ZyAIR for wireless stations to access your wired LAN. Note: Click Next in each screen to continue or click Back to return to the previous screen.
  • Page 8 ZyAIR G-5100 Your settings are not saved when you click Back. 1 This screen is optional. You can just click Next. System Name is for identifying the ZyAIR. You can enter your computer's "Computer Name". Domain Name: Enter a domain name if your ISP requires one for authentication;...
  • Page 9 ZyAIR G-5100 3 Fill in the fields in the last wizard configuration screen. If you have an IP address to use, select Use fixed IP address and enter it along with the subnet mask and gateway IP address. Click Finish. Note: If you change the ZyAIR’s IP address, you must use the new IP address if you want...

  • Page 10: Hardware Installation

    ZyAIR G-5100 4 Hardware Installation In general, the best location for the access point is at the center of your intended wireless coverage area. It is recommended that you do the initial configuration of the ZyAIR prior to mounting. The ZyAIR can be mounted on the side of a building or mounted to an antenna mast as described: A wall (side) mount allows for mounting an antenna (mast) on the side of a building or on the side of an elevated penthouse.

  • Page 11: What Is Lightning Protection

    ZyAIR G-5100 The grounding system must comply with the National Electrical Code and safety standards that apply in your country. Always check with a qualified electrician if you are in doubt as to whether your outdoor installation is properly grounded. 4.3 What is Lightning Protection? All outdoor electronic equipment is susceptible to lightning damage.

  • Page 12: Antenna Alignment

    ZyAIR G-5100 2 Align the top two holes in the back of the ZyAIR with the holes in the first mast-mounting bracket. Insert the two screws into the sides of the bracket to fix the ZyAIR to the mast-mounting bracket. 3 Attach the other bracket in a similar fashion.

  • Page 13: Troubleshooting

    ZyAIR G-5100 For omni-directional antennas mounted on a table, desk, and so on, point the antenna up. For omni-directional antennas mounted on a wall or ceiling, point the antenna down. For a single AP application, place omni- directional antennas as close to the center of the coverage area as possible. For directional antennas, point the antenna in the direction of the desired coverage area.

  • Page 14: Set Up Your Computer's Ip Address

    5.2 Procedure to View a Product’s Certification(s) 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page.
