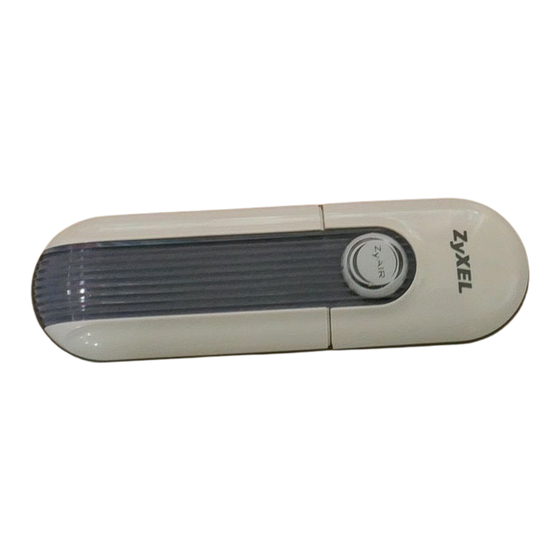

- Page 1 ZyXEL G-270S 802.11g Wireless USB 2.0 Adapter User’s Guide Version 1.00 12/2005 Edition 1...
-
Page 3: Copyright
Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. -
Page 4: Federal Communications Commission (Fcc) Interference Statement
ZyXEL G-270S User’s Guide Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations. - Page 5 ZyXEL G-270S User’s Guide Certifications 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page. 注意 ! 依據...
-
Page 6: Zyxel Limited Warranty
ZyXEL G-270S User’s Guide ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two (2) years from the date of purchase. -
Page 7: Customer Support
ZyXEL G-270S User’s Guide Customer Support Please have the following information ready when you contact customer support. • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. - Page 8 ZyXEL G-270S User’s Guide METHOD SUPPORT E-MAIL TELEPHONE WEB SITE REGULAR MAIL SALES E-MAIL FTP SITE LOCATION info@pl.zyxel.com +48-22-5286603 www.pl.zyxel.com ZyXEL Communications ul.Emilli Plater 53 POLAND +48-22-5206701 00-113 Warszawa Poland http://zyxel.ru/support +7-095-542-89-29 www.zyxel.ru ZyXEL Russia Ostrovityanova 37a Str. RUSSIA sales@zyxel.ru...
-
Page 9: Table Of Contents
................19 1.1.1 Application Overview ................19 1.1.1.1 Infrastructure ...................19 1.1.1.2 Ad-Hoc ....................20 1.2 ZyXEL G-270S Hardware and Utility Installation ..........21 1.3 Configuration Methods ..................21 1.4 Windows XP Users Only ..................21 1.5 Accessing the ZyXEL Utility ................21 1.6 ZyXEL Utility Screen Summary ................22 1.7 Connecting to a Wireless LAN ................23... - Page 10 4.2 Uninstalling the ZyXEL Utility ................51 4.3 Upgrading the ZyXEL Utility ................52 Chapter 5 Troubleshooting ....................53 5.1 Problems Starting the ZyXEL Utility Program ............53 5.2 Problem with the Link Status ................53 5.3 Problems Communicating With Other Computers ..........54 Appendix A...
- Page 11 ZyXEL G-270S User’s Guide Product Specifications ..................55 Appendix B Disable Windows XP Wireless LAN Configuration Tool........57 Appendix C Management with Wireless Zero Configuration ..........63 Appendix D Types of EAP Authentication ................75 Index........................79 Table of Contents...
- Page 12 ZyXEL G-270S User’s Guide Table of Contents...
-
Page 13: List Of Figures
List of Figures Figure 1 Application: Infrastructure ............... 20 Figure 2 Application: Ad-Hoc ................20 Figure 3 ZyXEL Utility: System Tray Icon .............. 21 Figure 4 Menu Summary ..................22 Figure 5 ZyXEL Utility: Site Survey ............... 23 Figure 6 ZyXEL Utility: Security Settings .............. 24 Figure 7 ZyXEL Utility: Link Info ................ - Page 14 ZyXEL G-270S User’s Guide Figure 39 Windows XP SP2: Wireless Network Connection Status ....... 64 Figure 40 Windows XP SP1: Wireless Network Connection Status ....... 65 Figure 41 Windows XP SP2: Wireless Network Connection ........65 Figure 42 Windows XP SP1: Wireless Network Connection Properties ....66 Figure 43 Windows XP SP2: Wireless Network Connection: WEP or WPA-PSK ..
-
Page 15: List Of Tables
ZyXEL G-270S User’s Guide List of Tables Table 1 ZyXEL Utility: System Tray Icon ............... 22 Table 2 ZyXEL Utility: Menu Screen Summary ............. 22 Table 3 Link Info ....................35 Table 4 Link Info: Trend Chart ................36 Table 5 Site Survey ....................37 Table 6 Security Settings: WEP ................ - Page 16 ZyXEL G-270S User’s Guide List of Tables...
-
Page 17: Preface
Congratulations on your purchase of the ZyXEL G-270S 802.11g Wireless USB 2.0 Adapter. Your ZyXEL G-270S is easy to install and configure. About This User's Guide This manual is designed to guide you through the configuration of your ZyXEL G-270S for its various applications. Related Documentation •... -
Page 18: Graphics Icons Key
ZyXEL G-270S User’s Guide Graphics Icons Key Wireless Access Point Computer Notebook Computer Server Modem Wireless Signal Telephone Switch Router Internet Cloud Preface... -
Page 19: Chapter 1 Getting Started
This section describes some network applications for the ZyXEL G-270S. 1.1.1.1 Infrastructure To connect to a network via an Access Point (AP), set the ZyXEL G-270S network type to Infrastructure. Through the AP, you can access the Internet or the wired network behind the... -
Page 20: Ad-Hoc
ZyXEL G-270S User’s Guide Figure 1 Application: Infrastructure 1.1.1.2 Ad-Hoc In case you prefer to set up a small independent wireless workgroup without an AP, use the Ad-Hoc mode. Ad-hoc mode does not require an AP or a wired network. Two or more wireless clients communicate directly to each other. -
Page 21: Zyxel G-270S Hardware And Utility Installation
1.4 Windows XP Users Only You must disable WZC if you want to use the ZyXEL utility. Refer to the appendices on how to deactivate WZC or how to use WZC to manage the ZyXEL G-270S. Note: When you use the ZyXEL Utility, it automatically disables the Windows XP wireless configuration tool. -
Page 22: Zyxel Utility Screen Summary
ZyXEL G-270S User’s Guide The color of the ZyXEL Utility system tray icon indicates the status of the ZyXEL G-270S. Refer to the following table for details. Table 1 ZyXEL Utility: System Tray Icon COLOR DESCRIPTION The ZyXEL G-270S is operating in wireless station mode but is not connected to a wireless network. -
Page 23: Connecting To A Wireless Lan
Site Survey screen. 1 Make sure a wireless network is available and within range. 2 Open the ZyXEL Utility and click the Site Survey tab to open the screen as shown next. 3 Click Scan to search for available wireless networks. -
Page 24: Figure 6 Zyxel Utility: Security Settings
Figure 6 ZyXEL Utility: Security Settings 6 Verify that you have successfully connected to the selected network and check the network information in the Link Info screen. If the ZyXEL G-270S is not connected to a network, the fields in this screen are blank. -
Page 25: Wireless Lan Network
Note: With USB1.0/1.1, the ZyXEL G-270S can only transmit at up to 11Mbps. Your ZyXEL G-270S can transmit at up to 108 Mbps when connected to an AP or wireless router with the Super G feature enabled. -
Page 26: Super G
For WLAN adapters without the passphrase feature, you can still take advantage of this feature by writing down the four automatically generated WEP keys from the Security Setting screen of the ZyXEL Utility and entering them manually as the WEP keys in the other WLAN adapter(s). -
Page 27: Eap Authentication
RADIUS server perform authentication. The type of authentication you use depends on the RADIUS server and an intermediary AP(s) that supports IEEE 802.1x. The ZyXEL G-270S supports EAP-TLS and EAP-PEAP. Refer to Appendix D on page 75 for descriptions. -
Page 28: User Authentication
ZyXEL G-270S User’s Guide 2.2.3.2 User Authentication WPA or WPA2 applies IEEE 802.1x and Extensible Authentication Protocol (EAP) to authenticate wireless clients using an external RADIUS database. 2.2.4 WPA(2)-PSK Application Example A WPA(2)s-PSK application looks as follows. 1 First enter identical passwords into the AP and all wireless clients. The Pre-Shared Key (PSK) must consist of between 8 and 63 ASCII characters (including spaces and symbols). -
Page 29: Encryption Type
Select Long preamble if you are unsure what preamble mode the wireless adapters support, and to provide more reliable communications in busy wireless networks. Select Long and Short to have the ZyXEL G-270S automatically use short preamble when access point/wireless stations support it, otherwise the ZyXEL G-270S uses long preamble. -
Page 30: Introduction To Otist
ZyXEL G-270S User’s Guide 2.5 Introduction to OTIST In a wireless network, the wireless clients must have the same SSID and security settings as the access point (AP) or wireless router (we will refer to both as “AP” here) in order to associate with it. -
Page 31: Wireless Client
ZyXEL G-270S User’s Guide 2.5.1.2 Wireless Client Start the ZyXEL Utility and click the Adapter tab. Select the Auto Security check box, enter the same Setup Key as your AP’s and click Save. Chapter 2 Wireless LAN Network... -
Page 32: Starting Otist
1 If you enabled OTIST in the wireless client, you see this screen each time you start the ZyXEL utility. Click Yes for it to search for an OTIST-enabled AP. 2 If an OTIST-enabled wireless client loses its wireless connection for more than ten seconds, it will search for an OTIST-enabled AP for up to one minute. - Page 33 ZyXEL G-270S User’s Guide 3 When the wireless client finds an OTIST-enabled AP, you must still click Start in the AP OTIST web configurator screen or hold in the Reset button (for one or two seconds) for the AP to transfer settings.
- Page 34 ZyXEL G-270S User’s Guide Chapter 2 Wireless LAN Network...
-
Page 35: Zyxel Utility Configuration
H A P T E R ZyXEL Utility Configuration This chapter shows you how to configure your ZyXEL G-270S in wireless station mode. 3.1 The Link Info Screen When the ZyXEL Utility starts, the Link Info screen displays, showing the current configuration and connection status of your ZyXEL G-270S. -
Page 36: Trend Chart
ZyXEL G-270S User’s Guide Table 3 Link Info (continued) LABEL DESCRIPTION Transmission Rate This field displays the current transmission rate of the ZyXEL G-270S in megabits per second (Mbps). Security This field displays whether data encryption is activated (WEP (WEP or 802.1x), TKIP (WPA/WPA-PSK), AES (WPA2/WPA2-PSK)) or inactive (DISABLE). -
Page 37: The Site Survey Screen
ZyXEL G-270S User’s Guide 3.2 The Site Survey Screen Use the Site Survey screen to scan for and connect to a wireless network automatically. Figure 12 Site Survey The following table describes the labels in this screen. Table 5 Site Survey... -
Page 38: Connecting To A Wlan Network
Link Info screen. 3.2.2 Security Settings When you configure the ZyXEL G-270S to connect to a network with wireless security activated and the security settings are disabled on the ZyXEL G-270S, the screen varies according to the encryption method used by the selected network. -
Page 39: Wpa/Wpa2
Pass Phrase When you select the radio button, enter a passphrase of up to 63 case-sensitive printable characters. As you enter the passphrase, the ZyXEL G-270S automatically generates four different WEP keys and displays it in the key field below. Refer to Section 2.2.1 on page 26 for more information. -
Page 40: Wpa-Psk/Wpa2-Psk
ZyXEL G-270S User’s Guide Figure 14 Security Settings: WPA/WPA2 The following table describes the labels in this screen. Table 7 Security Settings: WPA/WPA2 LABEL DESCRIPTION Authentication Select an authentication method from the drop down list. Options are TLS and Type PEAP. -
Page 41: 802.1X
ZyXEL G-270S User’s Guide Figure 15 Security Settings: WPA-PSK/WPA2-PSK The following table describes the labels in this screen. Table 8 Security Settings: WPA-PSK/WPA2-PSK LABEL DESCRIPTION Security Setting Encryption Type The encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-PSK are the same. The only difference between the two is that WPA-PSK/WPA2-PSK uses a simple common password, instead of user-specific credentials. -
Page 42: Confirm Save Screen
ZyXEL G-270S User’s Guide The following table describes the labels in this screen. Table 9 Security Settings: 802.1x LABEL DESCRIPTION Authentication Select an authentication method from the drop down list. Options are TLS and Type PEAP. Login Name Enter a user name. -
Page 43: The Profile Screen
ZyXEL G-270S will be disconnected. If you do not configure and activate a profile, each time you start the ZyXEL G-270S, the ZyXEL G-270S uses the default profile to connect to any available network with security disabled. -
Page 44: Figure 18 Profile Screen
ZyXEL G-270S User’s Guide Figure 18 Profile Screen The following table describes the labels in this screen. Table 11 Profile Screen LABEL DESCRIPTION Profile List Click a column heading to sort the entries. denotes that the wireless device is in infrastructure mode and the wireless security is activated. -
Page 45: Adding A New Profile
Select an available wireless device in the Scan Info table and click Select, or enter the SSID of the wireless device to which you want to associate in this field manually. Otherwise, enter Any to have the ZyXEL G-270S associate to or roam between any infrastructure wireless networks. -
Page 46: Figure 20 Profile: Wireless Setting: Select A Channel
Select an available wireless device in the table and click Select to add it to this profile. Whenever you activate this profile, the ZyXEL G-270S associates to the selected wireless network only. 2 If you select the Infrastructure network type in the previous screen, skip to step 3. If you select the Ad-Hoc network type in the previous screen, a screen displays as follows. -
Page 47: Figure 21 Profile: Security Setting: Encryption Type
If you select Ad-Hoc network type in the first screen, you can only use WEP encryption method. Otherwise, select DISABLE to allow the ZyXEL G-270S to communicate with the access points or other peer wireless computers without any data encryption and skip to step 5. -
Page 48: Figure 22 Profile: Security Setting
6 To use this network profile, click the Activate Now button. Otherwise, click the Activate Later button. Note: Once you activate a profile, the ZyXEL Utility will use that profile the next time it is started. Chapter 3 ZyXEL Utility Configuration... -
Page 49: The Adapter Screen
Select Maximum or Normal to save power (especially for notebook computers). Mode This forces the ZyXEL G-270S to go to sleep mode when it is not transmitting data. When you select Off, the ZyXEL G-270S will never go to sleep mode. - Page 50 OTIST on the ZyXEL AP or wireless router at the same time. The process takes three minutes to complete Save Click Save to save the changes back to the ZyXEL G-270S and return to the Link Info screen. Chapter 3 ZyXEL Utility Configuration...
-
Page 51: Chapter 4 Maintenance
Maintenance This chapter describes how to uninstall or upgrade the ZyXEL Utility. 4.1 The About Screen The About screen displays related version numbers of the ZyXEL G-270S. To display the screen as shown below, click the about ( ) button. -
Page 52: Upgrading The Zyxel Utility
Note: Before you uninstall the ZyXEL Utility, take note of the current network configuration. To perform the upgrade, follow the steps below. 1 Download the latest version of the utility from the ZyXEL web site and save the file on your computer. 2 Follow the steps in Section 4.2 on page 51... -
Page 53: Chapter 5 Troubleshooting
Table 16 Troubleshooting Starting ZyXEL Utility Program PROBLEM CORRECTIVE ACTION Cannot start the Make sure the ZyXEL G-270S is properly inserted and the LED is on. ZyXEL Wireless Use the Device Manager to check for possible hardware conflicts. Click Start, LAN Utility Settings, Control Panel, System, Hardware and Device Manager. -
Page 54: Problems Communicating With Other Computers
Make sure that the AP and the associated computers are turned on and computer with the working properly. ZyXEL G-270S • Make sure the ZyXEL G-270S computer and the associated AP use the same installed cannot SSID. communicate with •... -
Page 55: Product Specifications
ZyXEL G-270S User’s Guide P P E N D I X Product Specifications Table 19 Product Specifications PHYSICAL AND ENVIRONMENTAL Product Name ZyXEL G-270S 802.11g Wireless USB 2.0 Adapter Interface USB 2.0 bus-powered Standards IEEE 802.11b IEEE 802.11g Network Architectures... - Page 56 ZyXEL G-270S User’s Guide Table 19 Product Specifications (continued) Roaming IEEE 802.11b/g compliant 64/128/256-bit WEP encryption Appendix A Product Specifications...
-
Page 57: Disable Windows Xp Wireless Lan Configuration Tool
(WZC)) for wireless devices. Follow the steps below to disable the configuration tool in Windows XP after you install the ZyXEL Utility. The screen varies depending on the version of Windows XP service pack. Via the Wireless Network System Tray Icon If the network icon for wireless connections is not present in the system tray, see the next section. -
Page 58: Figure 29 Windows Xp Sp1: Wireless Network Connection
ZyXEL G-270S User’s Guide Figure 29 Windows XP SP1: Wireless Network Connection Windows XP SP2: When a Wireless Network Connection window displays, click Change advanced settings under Related Tasks and then the Wireless Networks tab. Figure 30 Windows XP SP2: Wireless Network Connection 3 In the Wireless Network Connection Properties window, make sure the Use Windows to configure my wireless network settings check box is not selected. -
Page 59: Figure 31 Windows Xp Sp1: Wireless Network Connection Properties
ZyXEL G-270S User’s Guide Figure 31 Windows XP SP1: Wireless Network Connection Properties Figure 32 Windows XP SP2: Wireless Network Connection Properties Appendix B Disable Windows XP Wireless LAN Configuration Tool... -
Page 60: Figure 33 Windows Xp Sp1: Wireless Network Connection Status
ZyXEL G-270S User’s Guide Via the Control Panel 1 If the icon for the wireless network connection is not in the system tray, click Start, Control Panel and double-click Network Connections. 2 Double-click on the icon for wireless network connection to display a status window as shown below. -
Page 61: Figure 35 Windows Xp Sp1: Wireless Network Connection Properties
ZyXEL G-270S User’s Guide 4 In the Wireless Network Connection Properties window, make sure the Use Windows to configure my wireless network settings check box is not selected. Click OK. Figure 35 Windows XP SP1: Wireless Network Connection Properties Figure 36 Windows XP SP2: Wireless Network Connection Properties... - Page 62 ZyXEL G-270S User’s Guide Appendix B Disable Windows XP Wireless LAN Configuration Tool...
-
Page 63: Management With Wireless Zero Configuration
Management with Wireless Zero Configuration This appendix shows you how to manage your ZyXEL wireless LAN adapter using the Windows XP wireless zero configuration tool. Be sure you have the Windows XP service pack 2 installed on your computer. Otherwise, you should at least have the Windows XP service pack 1 already on your computer and download the support patch for WPA from the Microsoft web site. -
Page 64: Figure 38 Windows Xp Sp2: System Tray Icon
Wireless Network Connection Status screen. Figure 38 Windows XP SP2: System Tray Icon The type of the wireless network icon in Windows XP SP2 indicates the status of the ZyXEL wireless LAN adapter. Refer to the following table for details. -
Page 65: Figure 40 Windows Xp Sp1: Wireless Network Connection Status
ZyXEL G-270S User’s Guide Windows XP SP1: In the Wireless Network Connection Status screen, click Properties and the Wireless Networks tab to open the Wireless Network Connection Properties screen. Figure 40 Windows XP SP1: Wireless Network Connection Status 3 Windows XP SP2: Click Refresh network list to reload and search for available wireless devices within transmission range. -
Page 66: Figure 42 Windows Xp Sp1: Wireless Network Connection Properties
This denotes that this wireless network is your preferred network. Ordering your preferred networks is important because the ZyXEL wireless LAN adapter tries to associate to the preferred network first in the order that you specify. Refer to the section on ordering the preferred networks for detailed information. -
Page 67: Figure 43 Windows Xp Sp2: Wireless Network Connection: Wep Or Wpa-Psk
This denotes the wireless network is not available. Security Settings When you configure the ZyXEL wireless LAN adapter to connect to a secure network but the security settings are not yet enabled on the ZyXEL wireless LAN adapter, you will see different screens according to the authentication and encryption methods used by the selected network. -
Page 68: Figure 45 Windows Xp: Wireless (Network) Properties: Association
This field is available only when the network use WEP encryption method and the The key is provided for me automatically check box is not selected. The key is If this check box is selected, the wireless AP assigns the ZyXEL wireless LAN provided for me adapter a key. -
Page 69: Figure 46 Windows Xp: Wireless (Network) Properties: Authentication
ZyXEL G-270S User’s Guide Table 23 Windows XP: Wireless (network) properties: Association (continued) LABEL DESCRIPTION This is a If this check box is selected, you are connecting to another computer directly. computer-to- computer (ad hoc) network; wireless access points are not used Click OK to save your changes. -
Page 70: Figure 47 Windows Xp: Protected Eap Properties
ZyXEL G-270S User’s Guide Table 24 Windows XP: Wireless (network) properties: Authentication (continued) LABEL DESCRIPTION Authenticate as Select this check box to have the computer send its information to the network for computer when authentication when a user is not logged on. -
Page 71: Figure 48 Windows Xp: Smart Card Or Other Certificate Properties
ZyXEL G-270S User’s Guide The following table describes the labels in this screen. Table 25 Windows XP: Protected EAP Properties LABEL DESCRIPTION Validate server Select the check box to verify the certificate of the authentication server. certificate Connect to these... -
Page 72: Table 26 Windows Xp: Smart Card Or Other Certificate Properties
ZyXEL G-270S User’s Guide The following table describes the labels in this screen. Table 26 Windows XP: Smart Card or other Certificate Properties LABEL DESCRIPTION Use my smart card Select this check box to use the smart card for authentication. -
Page 73: Figure 49 Windows Xp Sp2: Wireless Networks: Preferred Networks
Wireless Networks tab to open the screen as shown. Figure 50 Windows XP SP1: Wireless Networks: Preferred Networks 2 Whenever the ZyXEL wireless LAN adapter tries to connect to a new network, the new network is added in the Preferred networks table automatically. Select a network and... - Page 74 ZyXEL G-270S User’s Guide Appendix C Management with Wireless Zero Configuration...
-
Page 75: Types Of Eap Authentication
ZyXEL G-270S User’s Guide P P E N D I X Types of EAP Authentication This appendix discusses some popular authentication types: EAP-MD5, EAP-TLS, EAP- TTLS, PEAP and LEAP. The type of authentication you use depends on the RADIUS server or the AP. Consult your network administrator for more information. -
Page 76: Table 27 Comparison Of Eap Authentication Types
ZyXEL G-270S User’s Guide PEAP (Protected EAP) Like EAP-TTLS, server-side certificate authentication is used to establish a secure connection, then use simple username and password methods through the secured connection to authenticate the clients, thus hiding client identity. However, PEAP only supports EAP methods, such as EAP-MD5, EAP-MSCHAPv2 and EAP-GTC (EAP-Generic Token Card), for client authentication. - Page 77 ZyXEL G-270S User’s Guide WPA(2) User Authentication WPA or WPA2 applies IEEE 802.1x and Extensible Authentication Protocol (EAP) to authenticate wireless stations using an external RADIUS database. Encryption Both WPA and WPA2 improve data encryption by using Temporal Key Integrity Protocol (TKIP), Message Integrity Check (MIC) and IEEE 802.1x.
-
Page 78: Table 28 Wireless Security Relational Matrix
ZyXEL G-270S User’s Guide Security Parameters Summary Refer to this table to see what other security parameters you should configure for each Authentication Method/ key management protocol type. MAC address filters are not dependent on how you configure these security features. -
Page 79: Index
ZyXEL G-270S User’s Guide Index Numerics 802.1x data encryption Denmark, Contact Information driver version Dynamic WEP Key Exchange About about your ZyXEL G-270S activating a profile Adapter Ad-Hoc Enabling OTIST Advanced Encryption Standard 27, 77 Encryption 27, 77 advanced settings... - Page 80 ZyXEL G-270S User’s Guide link information Quick Start Guide 17, 21 Message Integrity Check radio interference Message Integrity Check (MIC) real-time data traffic statistics Regular Mail Related Documentation network type North America Contact Information save power Norway, Contact Information Scan Info...
- Page 81 ZyXEL G-270S User’s Guide transmission rate (Tx Rate) WPA-PSK 27, 40 transmit key WZC (Wireless Zero Configuration) Trend Chart troubleshooting link status network communication starting ZyXEL Utility ZyXEL Limited Warranty Note ZyXEL Utility accessing help opening uninstalling ZyXEL Utility system tray icon...
