CPU & Heatsink

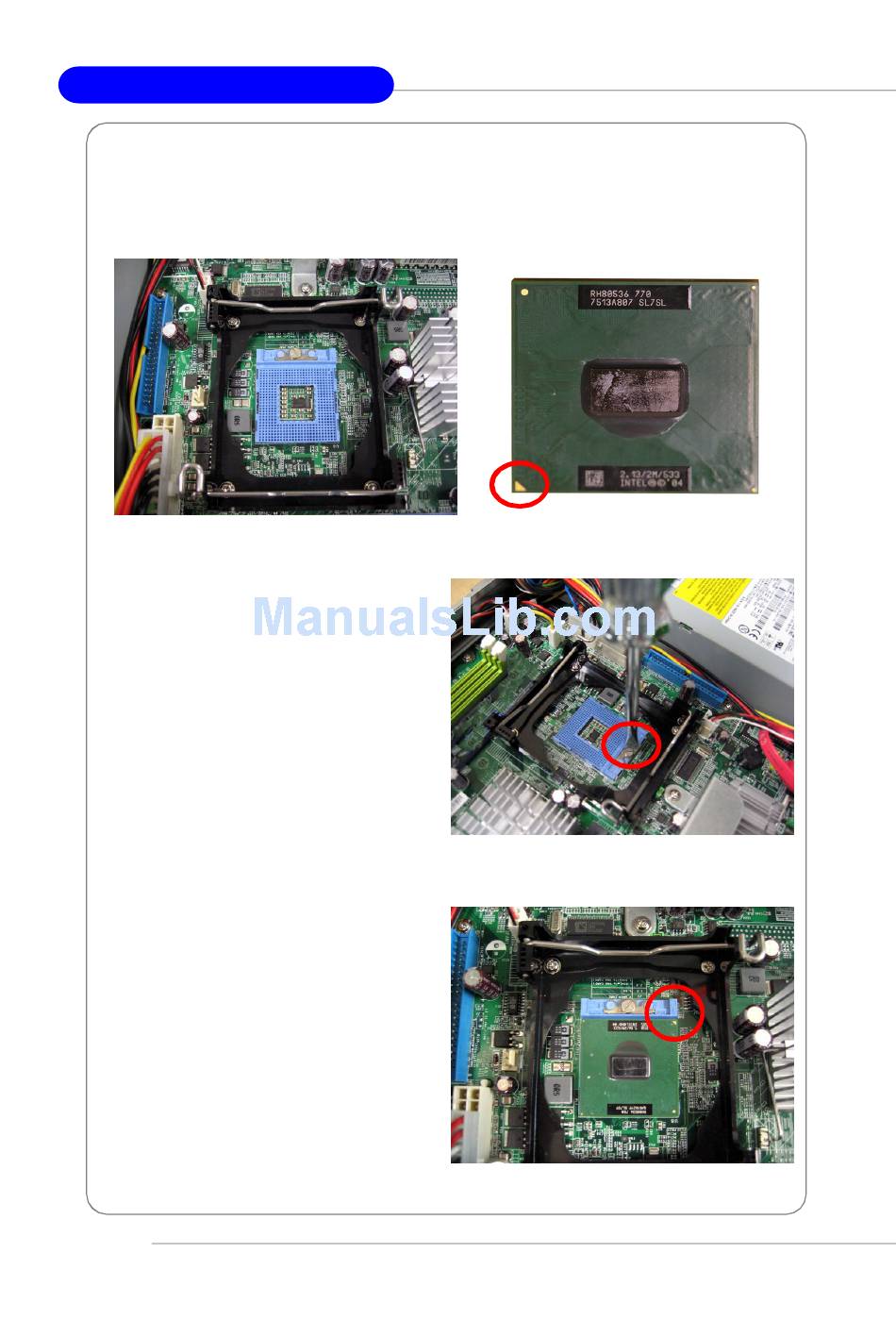

1. Locate the CPU socket.
3. On the front end of the CPU socket is
a locking mechanism designed into the
form of a screw head. Make sure that
you deactuate this mechanism with a
screwdriver before installing the CPU.
4. Place the CPU on top of the socket.
Make sure to align the gold arrow on
the CPU with the arrow key on the
socket.
5. Push the CPU down until its pins se-
curely fit into the socket.
2-20
2. Locate the gold arrow on the CPU.
