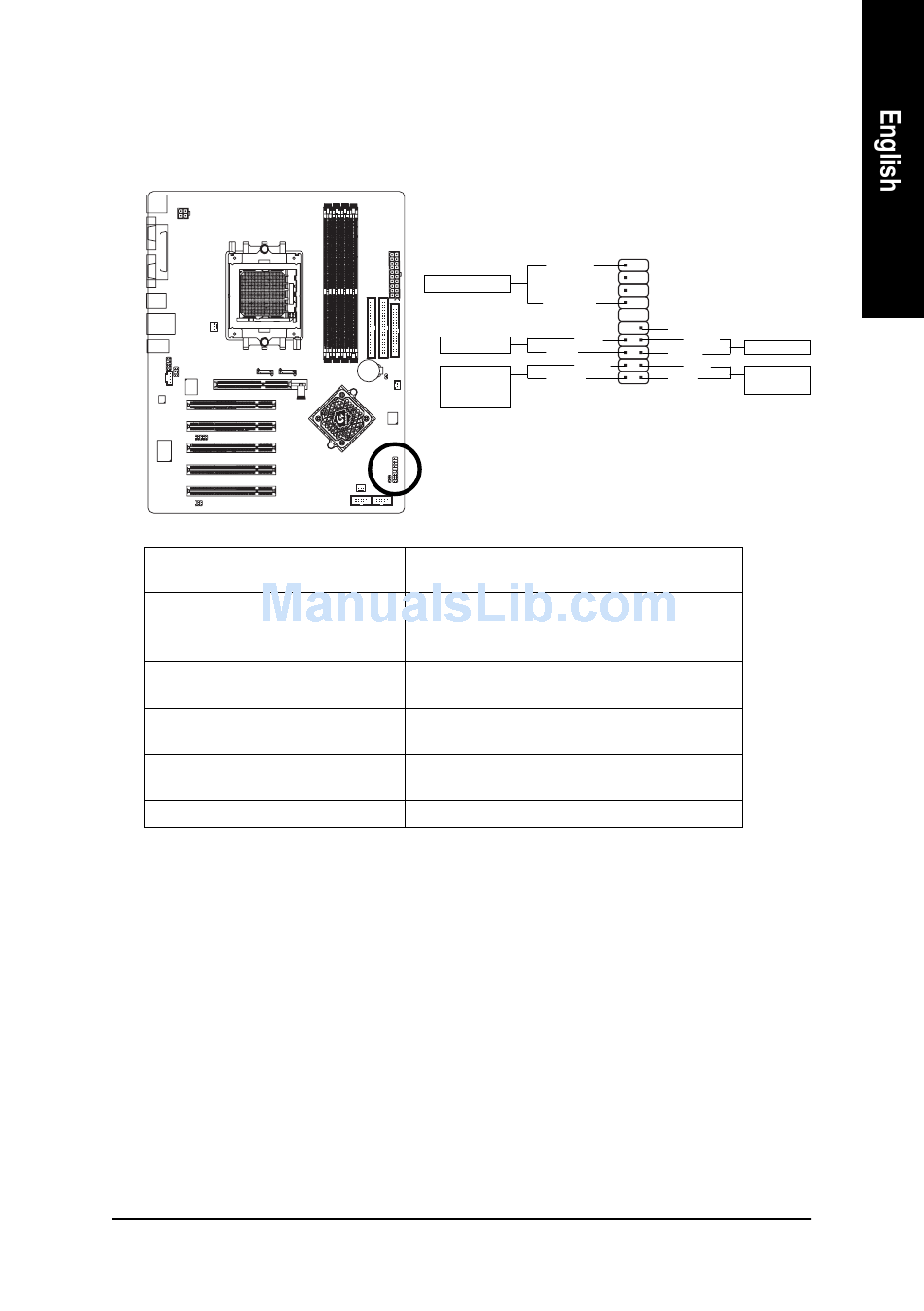

10) F_PANEL (Front Panel Jumper)

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front
panel to the F_PANEL connector according to the pin assignment below.
HD (IDE Hard Disk Active LED)
(Blue)
SPEAK (Speaker Connector)
(Amber)
RES (Reset Switch)
(Green)
PW (Power Switch)
(Red)
MSG(Message LED/Power/Sleep LED)
(Yellow)
NC (Purple)
SPEAK-
Speaker Connector
SPEAK+
PW-
Power Switch
PW+
MSG-
Message LED/
MSG+
Power/
Sleep LED
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
Pin 1: Power
Pin 2- Pin 3: NC
Pin 4: Data(-)
Open: Normal
Close: Reset Hardware System
Open: Normal
Close: Power On/Off
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
NC
- 23 -
19
20
NC
RES+
Reset Switch
RES-
HD-
IDE Hard Disk
HD+
Active LED
2 1
Hardware Installation
