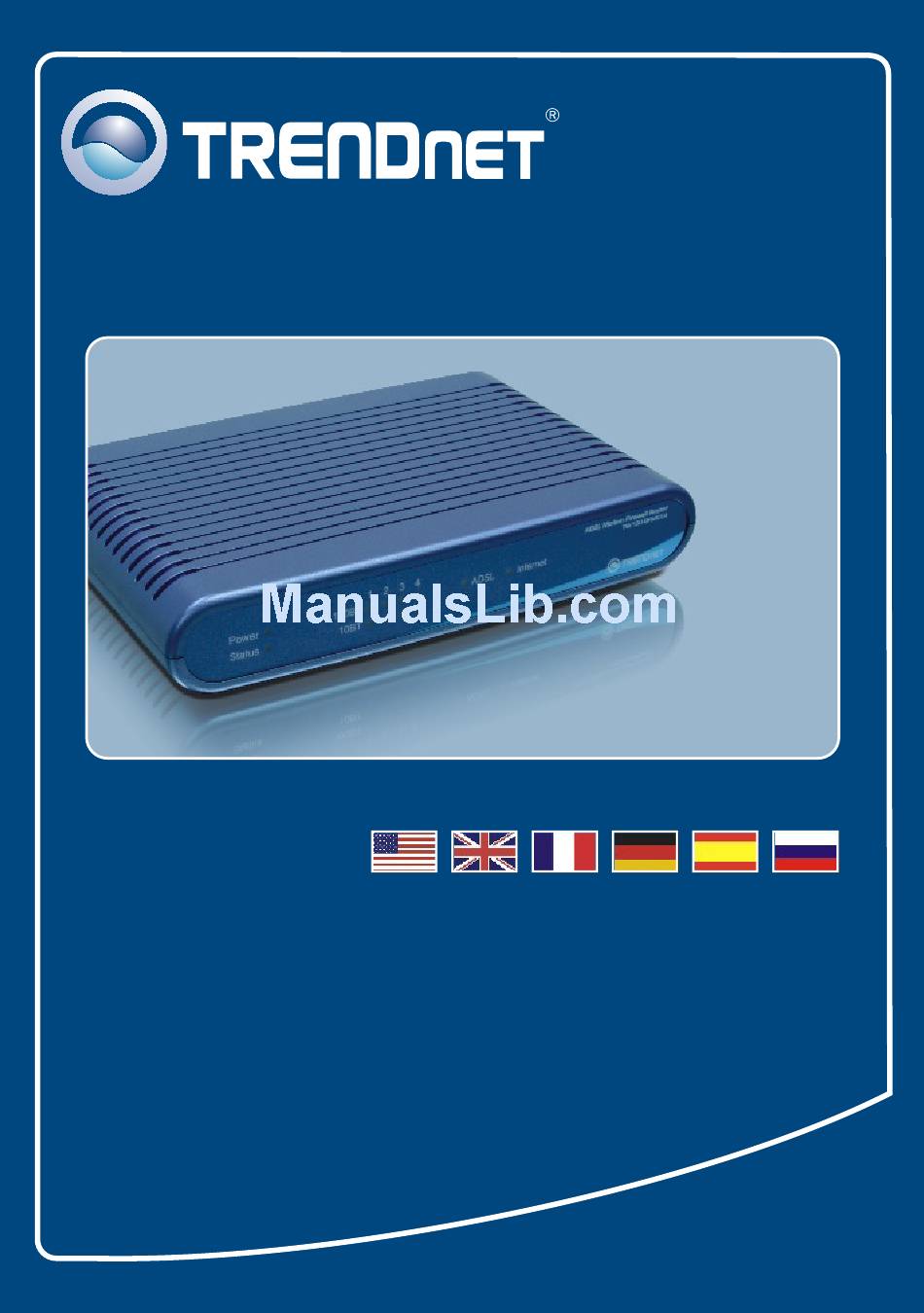

- Page 1 Quick Installation Guide TW100-BRM504...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1. Before You Start ................. 2. Install Hardware ................. Configuration The Modem ..............Troubleshooting ..................Version 08.30.2006... -
Page 3: English
1. Before You Start Package Contents TW100-BRM504 Quick Installation Guide User's Guide CD-ROM 1 x RJ-45 Ethernet Cable (Yellow) 1 x RJ-11 Telephone Cable (Gray) Mounting Stand Power Adapter Installation Requirements A working DSL Internet Connection A computer with a wired or wireless network adapter properly installed Web Browser: Internet Explorer (5.0 or higher) or Netscape Navigator (4.7 or higher) Application... - Page 4 Collect Internet Service Provider (ISP) Information During the installation of your Wireless ADSL Modem Router, the Setup Wizard will automatically detect your ISP connection type. If the router cannot detect your ISP connection type, you can manually specify the connection type. Please verify your DSL Internet broadband connection type with your ISP and ensure you have all the information for one of the following connection types: A.
-
Page 5: Install Hardware
2. Hardware Installation 1. Attach the mounting stand to the side of the unit. 2. Connect one end of the yellow RJ- 45 cable to one of the TW100-BRM504's LAN ports. Connect the other end of cable to the computer's Ethernet port. 3. -
Page 6: Configuration The Modem
3. Configure the Modem Note: It is recommended that you configure the Modem from a wired computer. 1. Open your web browser, type http://192.168.0.1 in the Address bar, and press Enter. 2. Enter User name and Password, and then click OK. By default, User name: admin Password: password 3. - Page 7 4. Click Next. Note: In the example, the DSL connection is PPPoE. 5. Select Auto-detect, and then click Next. 6. Wait for the Auto Detection process to complete. English...
- Page 8 9. Verify that the ADSL LED is lit and then click Close. Your installation is now complete. For detailed information regarding the TW100-BRM504's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. English...
-
Page 9: Troubleshooting
Troubleshooting I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TW100-BRM504's web configuration page? First, check your hardware settings again by following the instructions in Section 2. Second, make sure the LAN and WLAN lights are lit. - Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
