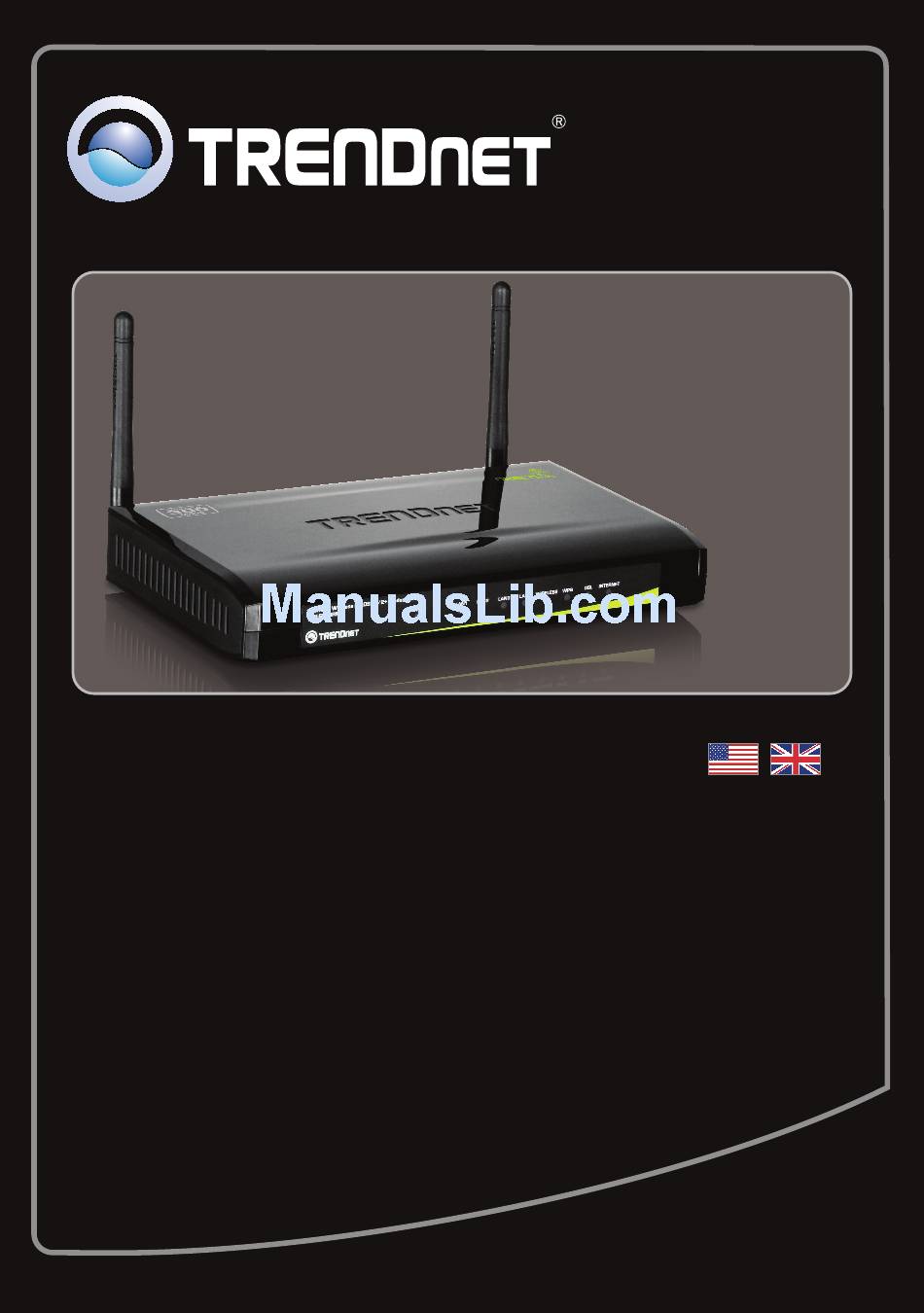

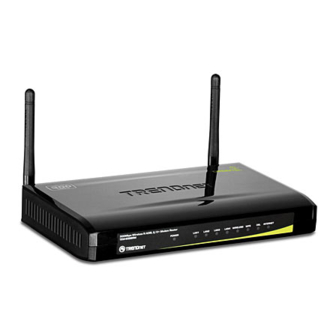

- Page 1 Quick Installation Guide TEW-658BRM 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the Modem Troubleshooting Wireless Tips Version 02.14.2011... -
Page 3: English
1. Before You Start Package Contents Ÿ TEW-658BRM Ÿ CD-ROM (User's Guide) Ÿ Multi-Language Quick Installation Guide Ÿ Network Cable (1.5m/4.9ft) Ÿ RJ-11 Telephone Cable (1m/3ft) Ÿ Power Adapter (12V DC, 1A) System Requirements Ÿ A working ADSL Internet Connection Ÿ... - Page 4 Collect Internet Service Provider (ISP) Information Please verify your DSL Internet broadband connection type with your ISP and ensure you have all the information for one of the following connection types: 1. PPPoE (RFC-2516 PPP over Ethernet) ŸVPI: _____ (0~255) ŸVCI: _____ (32~65535) ŸEncapsulation (LLC or VCMUX) ŸATMQoS (UBR, CBR, VBR-nrt, VBR-rt)
- Page 5 2. PPPoA (RFC-2364 PPP over ATM) Ÿ VPI: _____ (0~255) Ÿ VCI: _____ (32~65535) Ÿ Encapsulation (LLC or VCMUX) Ÿ ATMQoS (UBR, CBR, VBR-nrt, VBR-rt) Ÿ Peak Cell Rate: _____ (0~6000 cells/s) Ÿ Maximum Burst Size: _____ (0-65535 Cells)(VBR-nrt/VBR-rt ATMQoS only) Ÿ...
- Page 6 Ÿ State of Connection (Enable/Disable) ŸName: ________________ ŸNAT (Enable/Disable) ŸAddress Type (DHCP/Static) ŸExternal IP Address: _____. _____._____._____ ŸSubnet Mask: _____. _____._____._____ ŸDefault Gateway:_____. _____._____._____ ŸDNS Enabled (Enable/Disable) ŸDNS Override Allowed (Enable/Disable) ŸDNS Server 1: _____. _____._____._____ (optional) ŸDNS Server 2: _____. _____._____._____ (optional) ŸAs system default route (Current setting : pppoe ) (Setup "...
- Page 7 5. Static IP Address Ÿ VPI: _____ (0~255) Ÿ VCI: _____ (32~65535) Ÿ Encapsulation (LLC or VCMUX) Ÿ ATMQoS (UBR, CBR, VBR-nrt, VBR-rt) Ÿ Peak Cell Rate: _____ (0~6000 cells/s) Ÿ Maximum Burst Size: _____ (0-65535 Cells)(VBR-nrt/VBR-rt ATMQoS only) Ÿ Sustainable Cell Rate: _____ (0~65535 cells)(VBR-nrt/VBR-rt ATMQoS only) Ÿ...
- Page 8 7. CIP (RFC-1577 Classic IP/ARP over ATM) ŸVPI: _____ (0~255) ŸVCI: _____ (32~65535) ŸEncapsulation (LLC or VCMUX) ŸATMQoS (UBR, CBR, VBR-nrt, VBR-rt) ŸPeak Cell Rate: _____ (0~6000 cells/s) ŸMaximum Burst Size: _____ (0-65535 Cells)(VBR-nrt/VBR-rt ATMQoS only) ŸSustainable Cell Rate: _____ (0~65535 cells)(VBR-nrt/VBR-rt ATMQoS only) ŸEnable Default VLAN (Enable/Disable) ŸPPPoE PassThrough (Enable/Disable)
-
Page 9: Hardware Installation
2. Hardware Installation 1. Connect one end of the Network cable to one of the TEW-658BRM's LAN ports. Connect the other end of cable to the computer's Ethernet port. 2. Connect one end of the RJ-11 telephone cable to the TEW-658BRM's ADSL port. Connect the other end of the cable to the phone jack. -
Page 10: Configure The Modem
3. Configure the Modem Note: It is recommended that you configure the Modem from a wired computer. 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the User Name and password and then click OK. - Page 11 5. Configure the settings based on information provided by your ISP. Then Click Next. Note: In the example below, the ADSL connection type is PPPoE. 6. Select the desired ADSL connection type and then click Next. 7. Configure the settings based on information provided by your ISP.
- Page 12 8. Configure the following for Wireless Basic Setting and then click Next. Device: check Enable. Select Disable if you do not want any wireless computers or device to connect to this device. SSID: The SSID is the wireless network name of your wireless network (e.g.
- Page 13 Group Rekey Time: In most cases, the default time is fine. Confirmed Passphrase: Enter an encryption key. For Example: trendnet Then click Next. For WPA-PSK or WPA2-PSK, the Pre-Shared Key must be between 8 and 63 ASCII or 64 HEX characters.
- Page 14 Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet...
-
Page 15: Troubleshooting
Troubleshooting 1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-658BRM's web configuration page? 1. Check your hardware settings again by following the instructions in section 2. 2. - Page 16 Windows XP/2000 1. Go into the Control Panel, double-click the Network Connections icon and then right-click the Local Area Connection icon and then click Properties. 2. Click Internet Protocol (TCP/IP) and then click Properties. Then click on Obtain an IP address automatically.
- Page 17 DSL authentication in process, data transfer activity On (solid) DSL authentication process complete No DSL authentication On (blinking) Internet Internet data transfer activity On (solid) Internet connection ready If you still encounter problems or have any questions regarding the TEW-658BRM, please contact TRENDnet's Technical Support Department.
-
Page 18: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues. - Page 19 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall. Dense materials like metal, solid wood, glass or even furniture may block or degrade the signal.
- Page 24 Copyright ©2011, All Rights Reserved. TRENDnet.
