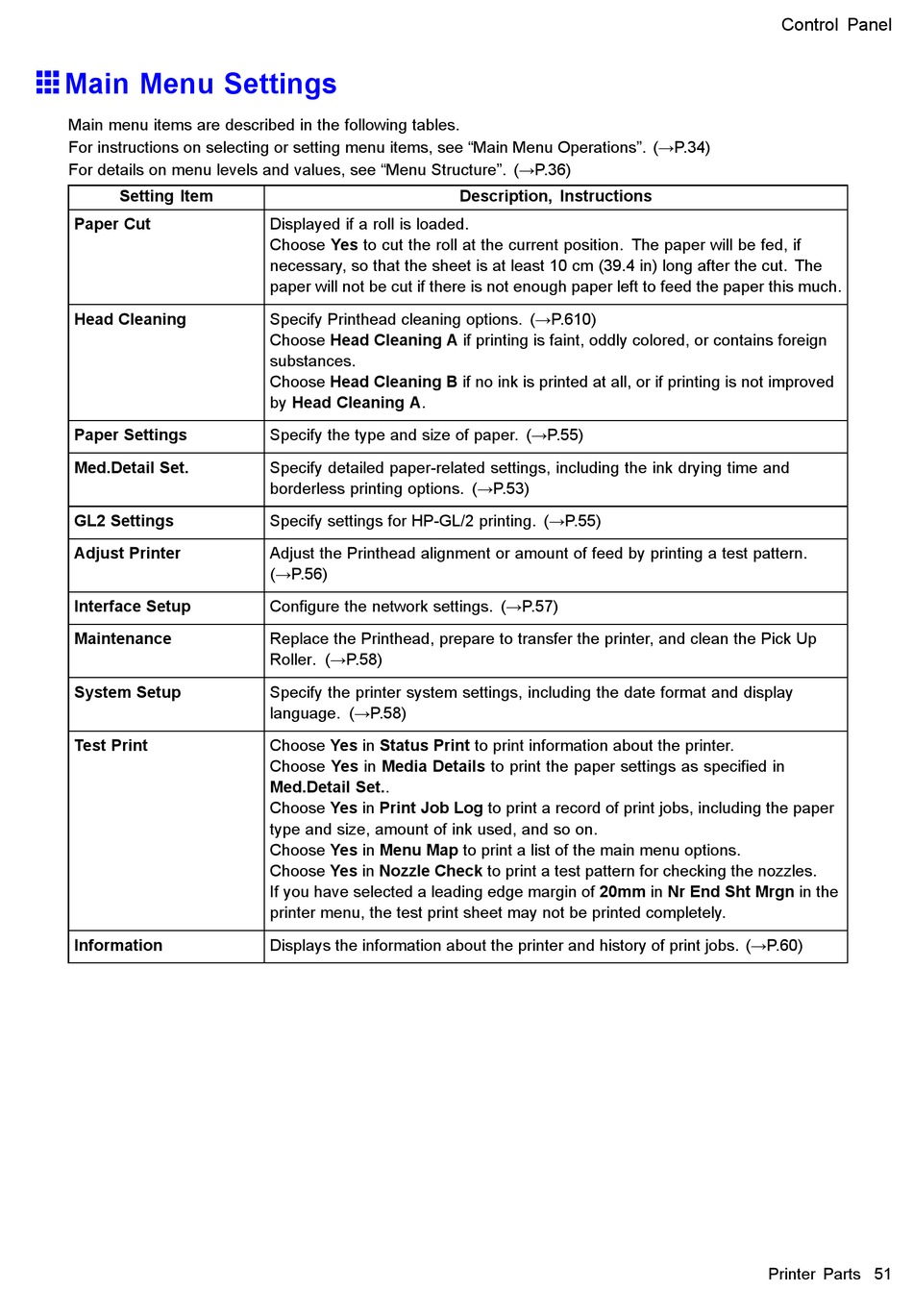

Main Menu Settings

Main menu items are described in the following tables.
For instructions on selecting or setting menu items, see "Main Menu Operations". (→P.34)
For details on menu levels and values, see "Menu Structure". (→P.36)
Setting Item
Paper Cut
Head Cleaning
Paper Settings
Med.Detail Set.
GL2 Settings
Adjust Printer
Interface Setup
Maintenance
System Setup
Test Print
Information
Displayed if a roll is loaded.
Choose Yes to cut the roll at the current position. The paper will be fed, if
necessary, so that the sheet is at least 10 cm (39.4 in) long after the cut. The
paper will not be cut if there is not enough paper left to feed the paper this much.
Specify Printhead cleaning options. (→P.610)
Choose Head Cleaning A if printing is faint, oddly colored, or contains foreign
substances.
Choose Head Cleaning B if no ink is printed at all, or if printing is not improved
by Head Cleaning A.
Specify the type and size of paper. (→P.55)
Specify detailed paper-related settings, including the ink drying time and
borderless printing options. (→P.53)
Specify settings for HP-GL/2 printing. (→P.55)
Adjust the Printhead alignment or amount of feed by printing a test pattern.
(→P.56)
Congure the network settings. (→P.57)
Replace the Printhead, prepare to transfer the printer, and clean the Pick Up
Roller. (→P.58)
Specify the printer system settings, including the date format and display
language. (→P.58)
Choose Yes in Status Print to print information about the printer.
Choose Yes in Media Details to print the paper settings as specied in
Med.Detail Set..
Choose Yes in Print Job Log to print a record of print jobs, including the paper
type and size, amount of ink used, and so on.
Choose Yes in Menu Map to print a list of the main menu options.
Choose Yes in Nozzle Check to print a test pattern for checking the nozzles.
If you have selected a leading edge margin of 20mm in Nr End Sht Mrgn in the
printer menu, the test print sheet may not be printed completely.
Displays the information about the printer and history of print jobs. (→P.60)
