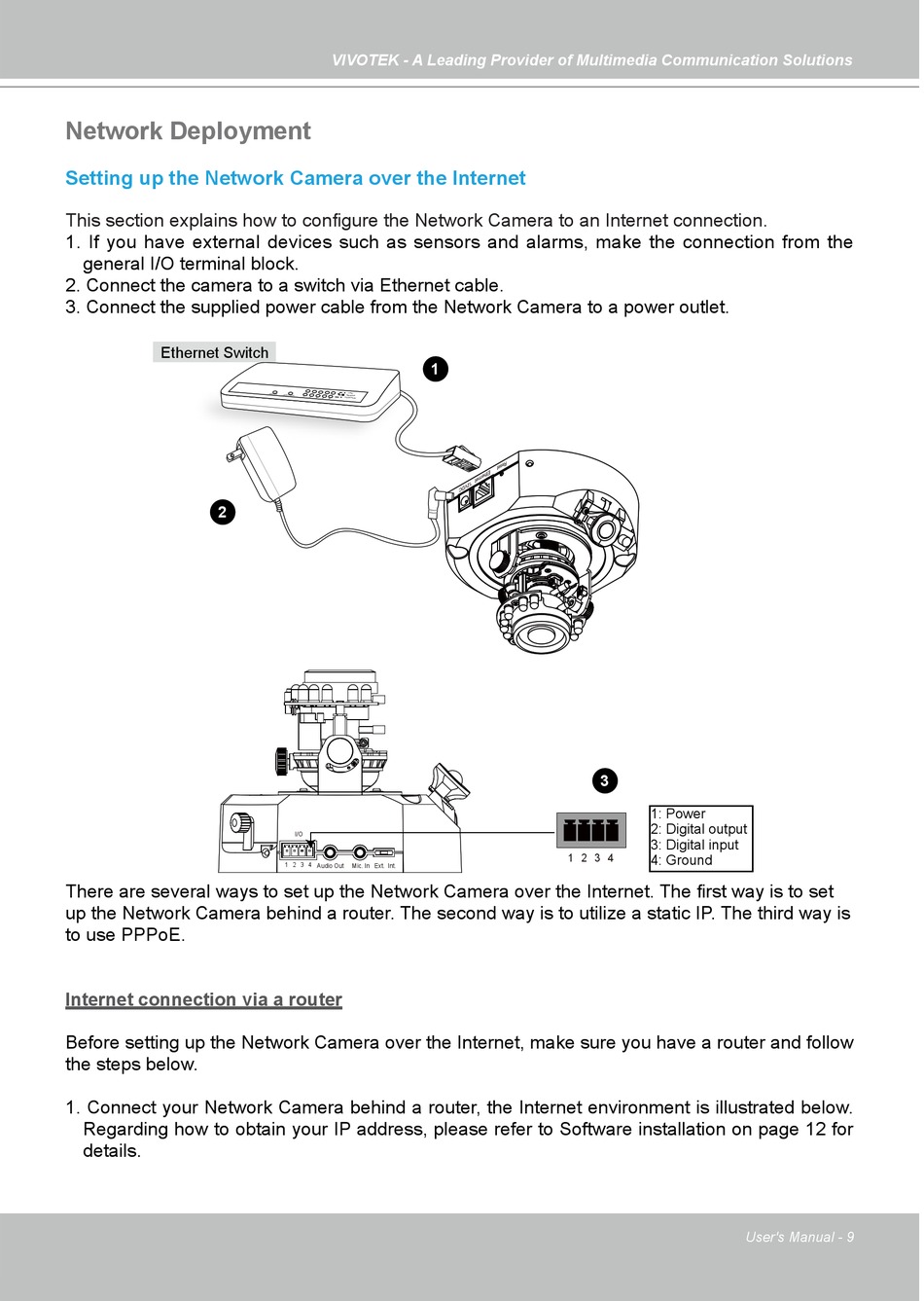

Network Deployment

Setting up the Network Camera over the Internet
This section explains how to configure the Network Camera to an Internet connection.
1� If you have external devices such as sensors and alarms, make the connection from the
general I/O terminal block�
2� Connect the camera to a switch via Ethernet cable�
3� Connect the supplied power cable from the Network Camera to a power outlet�
Ethernet Switch
2
There are several ways to set up the Network Camera over the Internet. The first way is to set
up the Network Camera behind a router. The second way is to utilize a static IP. The third way is
to use PPPoE�
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�
1� Connect your Network Camera behind a router, the Internet environment is illustrated below�
Regarding how to obtain your IP address, please refer to Software installation on page 12 for
details�
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
1
I/O
1 2 3 4
Audio Out Mic. In Ext. Int.
3
1: Power
2: Digital output
3: Digital input
1 2 3 4 4: Ground
