Install Guide: Installing the Hardware

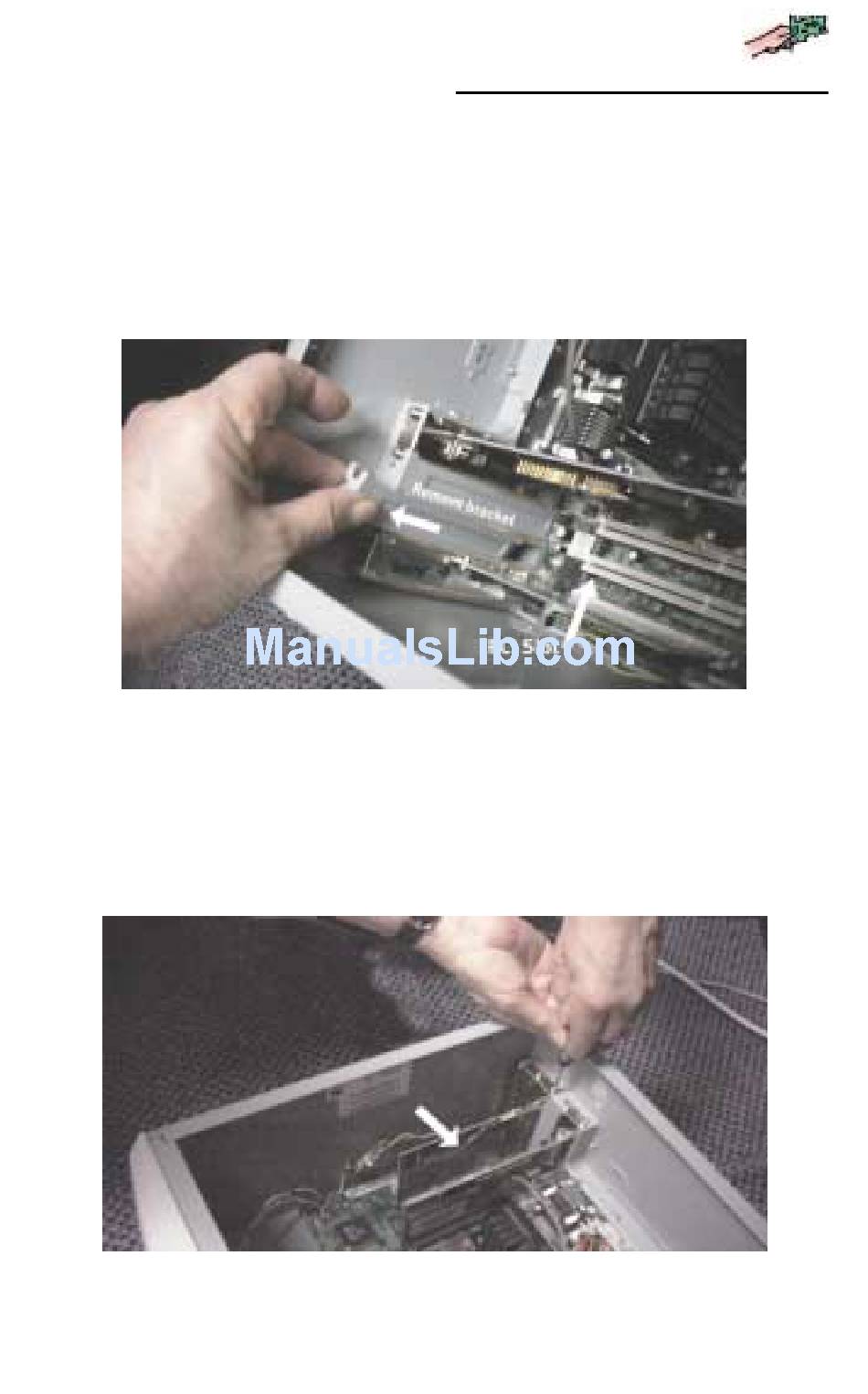

Using a screwdriver, remove the metal bracket on the rear of the
computer corresponding to the vacant PCI slot you just identified.
To loosen the screw, turn it counter-clockwise. Once the screw
has been removed you should be able to lift the bracket out by
pulling up on it (see following photo). This will expose a long
narrow rectangular opening in the back of your computer perpen-
dicular to the vacant slot.
Insert your 3Com ADSL Modem PCI into the slot where you just
removed the bracket. Do not touch any of the electronics on the
board. Hold the modem from the edge and firmly press it straight
down. Do not force the modem into the slot. Make sure it is fully
seated in the slot. Then, screw it into place using the screw you
removed from the bracket.
Inserting your Modem into a PCI Slot
21
