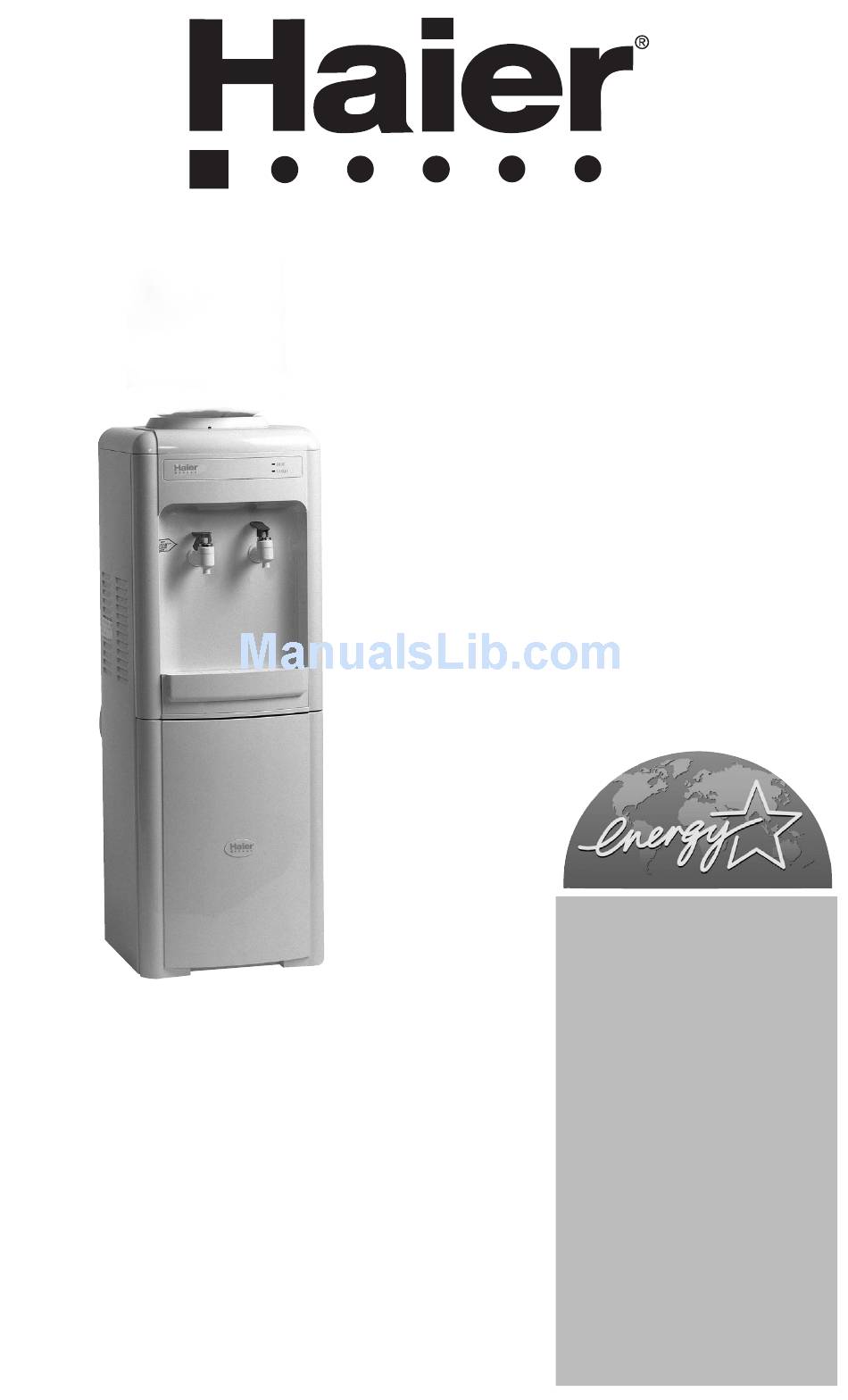

- Page 1 Water Dispenser Fontaine d'eau Réfrigérée Dispenser de agua WDQS055 WDQS045 Installation WDQS005 Instructions- Model # WDQS015 WDQT005 Instructions WDQT015 d’installation- Modèle # WDQT165 WDQSC145 Instrucciones de instalación- Modelo # WDQSC245...
-
Page 2: Safety Precautions
Note: If for any reason this product requires service, we strongly recommend that a certified technician perform the service. 6. This water dispenser should not be recessed or built into an enclosed cabinet. It is designed for freestanding installation only. -
Page 3: Table Of Contents
Using the Refrigerator Compartment ............17 Using the Storage Compartment ..............17 Replacing the Fuse..................17 Removable Drip Tray ..................18 PROPER CARE AND CLEANING ............18-19 General ....................18 Cleaning the Condenser Coils ..............19 For Long Vacations or Absences / Moving ..........19 TROUBLESHOOTING GUIDE ............20-21 WARRANTY....................22... -
Page 4: Unpacking
English Unpacking 1. Remove all packing materials. This includes the foam base and all adhesive tape holding the accessories inside and outside. 2. Inspect and remove any remaining packaging, tape and printed materials before turning on the water dispenser. Note: Allow the water dispenser to stand in an upright position for at least... -
Page 5: Parts And Features
English Parts and Features Model: WDQS055 Water Dispenser with Refrigerator Front View Rear View 1. Dust Cover (save for cleaning 1. Hot Water On/Off Power Switch purposes) (red) 2. Water Bottle Guard 2. Cold Water On/Off Power Switch 3. Hot Water Faucet (red) (green) 4. -
Page 6: Side View
English Parts and Features Model: WDQS015 Water Dispenser with Clear Window Storage Compartment Side View Front View 1. Dust Cover (save for cleaning 1. Hot Water On/Off Power Switch purposes) (red) 2. Water Bottle Guard 2. Cold Water On/Off Power Switch (green) 3. -
Page 7: Front View
English Parts and Features Model: WDQS045 Water Dispenser with Storage Compartment (Without Clear Window) Front View Rear View 1. Dust Cover (save for cleaning 1. Hot Water On/Off Power Switch purposes) (red) 2. Water Bottle Guard 2. Cold Water On/Off Power Switch 3. - Page 8 English Parts and Features Model: WDQS005 Water Dispenser Rear View Front View 1. Dust Cover (save for cleaning 1. Power Cord (115Volt / 60Hz) purposes) 2. Fuse Holder (15Amp) 2. Water Bottle Guard 3. Drain 3. Hot Water Faucet (red) 4.
- Page 9 2. Cold Water Power Switch (black) 2. Water Bottle Guard 3. Power Cord (115Volt / 60Hz) 3. Handles (right and left sides) 4. Drain (not shown - located under 4. Hot Water Faucet (red) the unit) 5. Removable Drip Tray 6.
- Page 10 English Parts and Features Model: WDQT015 Desktop Water Dispenser Front View Rear View 1. Dust Cover (save for cleaning 1. Hot Water Power Switch (red) purposes) 2. Cold Water Power Switch (green) 2. Water Bottle Guard 3. Drain 3. Hot Water Faucet (red) 4.
- Page 11 2. Hot Water Power Switch (red) 2. Water Bottle Guard 3. Power Cord (115Volt / 60Hz) 3. Cup Storage 4. Drain (not shown - located under 4. Hot Water Faucet (red) the unit) 5. Removable Drip Tray 6. Cold Water Faucet (blue) 7.
- Page 12 Combo Desktop/Free Standing Water Dispenser Rear View Front View Full View 1. Dust Cover(save for cleaning 1. Hot Water Power Switch (red) purposes) 2. Cold Water Power Switch (green) 2. Water Bottle Guard 3. Drain 3. Hot Water Faucet (red) 4.
-
Page 13: Proper Location
"Spill-Proof" bottles are easy to install since cap removal is not necessary. Contact your local water distributor for more information. 3. Check that water flows out by pressing both the red and blue faucets one at a time. 4. Plug the power cord into an 115Volt / 60Hz outlet. - Page 14 6) Install the top door hinge with 2 screws. 7) Put the inner shelf in place. 8) Align the feet of the water cooler with the groves on the top cover of the stand. (fig. E) Fig. A Fig. B Fig.
-
Page 15: Electrical Connections
This appliance is equipped with a cord containing a grounding wire and a grounded plug. The plug must be inserted into an outlet that is properly installed and grounded. -
Page 16: Operating Your Water Dispenser
English Operating Your Water Dispenser This water dispenser maintains instant hot and cold water for your cooking and drinking needs. It accepts 2, 3 or 5-gallon water bottles. Cold (blue) / Hot (red) Water Faucets • Press the tap lever down to release the water flow. -
Page 17: Using The Refrigerator Compartment
Follow the instructions below to replace a blown fuse. 1. First, unplug the unit. 2. Use a small flathead screwdriver to open the fuse holder on the back of the unit by turning the knob in a counter-clockwise direction. The fuse holder will pop out. -
Page 18: Removable Drip Tray
General • Before cleaning, place the dust cover on top of the water guard to prevent dust and debris from going into the dispenser while cleaning. • Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. -
Page 19: Cleaning The Condenser Coils
(Not in all models) • We recommend that you move the dispenser away from the wall and vacuum or brush the coils on the rear of the unit at least 4 times a year. Some operating environments may require more frequent cleaning. -
Page 20: Troubleshooting Guide
The unit does not operate. • Check if your water dispenser is plugged in. • Check the circuit breaker and the fuse to make sure there is power at the outlet. The unit is plugged in but the indicator lights are not illuminated. - Page 21 What happens if the water dispenser is running dry (without the water)? • You must never let the water dispenser run dry as this may cause damage to the unit and create a fire. DO NOT let the dispenser run without water.
-
Page 22: Warranty
1. The mechanical and electrical parts, WARRANTIES OF MERCHANTABILITY which serve as a functional purpose AND FITNESS FOR A PARTICULAR of this appliance, for a period of 12 PURPOSE. months. This includes all parts except finish, and trim. The remedy provided in this warranty is... - Page 23 IMPORTANTE No regrese este producto a la tienda Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A). NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA...
