Insignia NS-R2001 Quick Setup Manual

NS-R2001_10-1257_QSG_V2_EN.eps NS-R2001_10-1257_QSG_V2_EN.eps 1 1 2/16/2011 2/16/2011
Congratulations on your purchase of a high-quality Insignia
product. Your NS-R2001 represents the state of the art in
stereo receiver design and is designed for reliable and
trouble-free performance.
Package contents
• Receiver • AM and FM antennas
• Remote control • User Guide
• AAA batteries (2) • Quick Setup Guide
Installing the batteries
1 Remove the cover.
2 Insert two AAA batteries into the compartment
matching the polarity indicated.
3 Replace the cover.
CAUTION: Do not use Ni-Cd rechargeable batteries in this remote
control.
Remove the batteries if they are not to be used for an extended
period of time.
Setting up your receiver
V2
5:05:33 PM 5:05:33 PM
FINAL
FOR PRINT

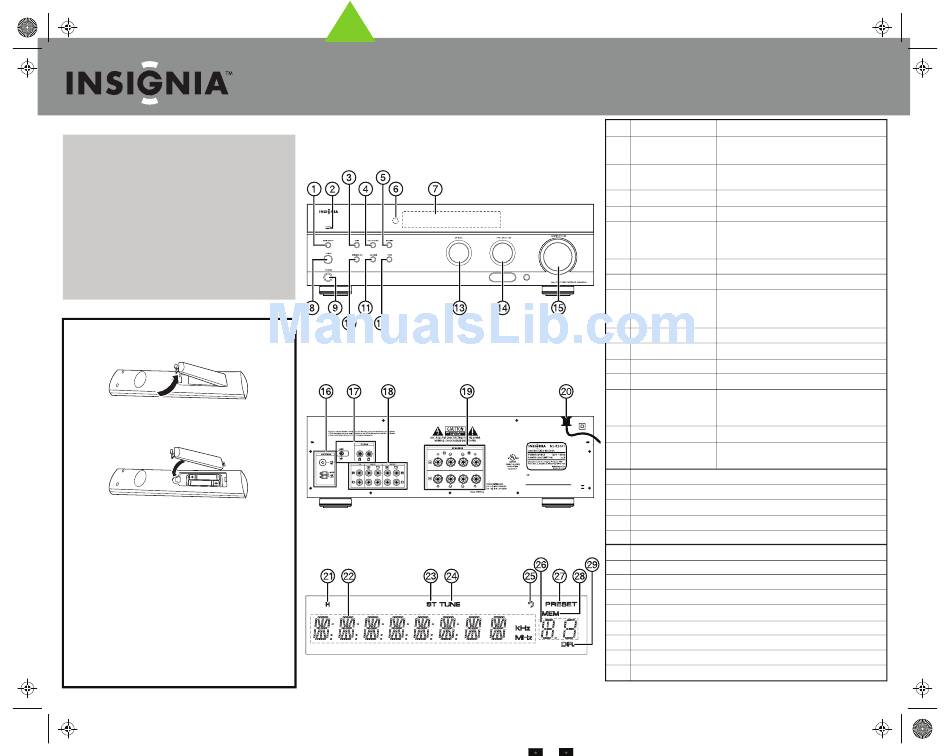

Features
Front controls
Back view
Fluorescent display
Actual product may vary from image shown.
Connecting speakers
NS-R2001 AM/FM Stereo Receiver
Item Description
1 ON/STANDBY button
2 STANDBY indicator
3 BAND button
4 TUNING/PRESET button Press to toggle between tune and preset mode.
5 MEMORY button
6 Remote sensor
7 Display
8 POWER button
9 HEADPHONE jack
10 SPEAKER A/B button
11 BALANCE button
12 TONE button
13 UP/DOWN knob
14 INPUT SELECTOR knob
15 MASTER VOLUME
control knob
16 AM and FM antenna jacks
17 PHONO jacks
18 Audio input jacks
19 Speaker terminals
20 AC power cord
21 Headphone indicator
22 Input, frequency, volume level, operating information
23 Stereo indicator
24 TUNE indicator
25 Sleep indicator
26 Preset number, sleep time display
27 PRESET indicator
28 MEM indicator
29 Tone direct indicator
Speaker A
3 To listen to the speakers, press the SPEAKER A or SPEAKER B button on the
Quick Setup Guide
Function
Press to turn on your stereo receiver. Press again to
put the stereo receiver in standby mode
Lights blue when your stereo receiver is
in standby mode.
Press to toggle between AM and FM.
Press to save a station preset.
Press and hold to automatically search for FM
stations and store them in memory.
Receives the signal from the remote control.
Provides information about the receiver.
Press to power on the stereo receiver putting it into
standby mode. Press again to power down the
stereo receiver.
Plug stereo headphones into this jack.
Press to toggle between speakers: A, B, A&B, Off.
Press to turn the balance mode on.
Press to turn the tone mode on.
Turn to tune the radio frequency up or down, or to
adjust such as tone or balance, depending on the
receiver mode.
Turn to cycle through the available receiver inputs.
Turn to increase or decrease the volume.
