Insignia NS-R2001 Quick Setup Manual

Congratulations on your purchase of a high-quality Insignia
product. Your NS-R2001 represents the state of the art in
stereo receiver design and is designed for reliable and
trouble-free performance.

Package contents

• Receiver • AM and FM antennas
• Remote control • User Guide
• AAA batteries (2)

• Quick Setup Guide

Installing the batteries
1 Remove the cover.
2 Insert two AAA batteries into the compartment
matching the polarity indicated.
3 Replace the cover.
CAUTION: Do not use Ni-Cd rechargeable batteries in this remote
control.
Remove the batteries if they are not to be used for an extended
period of time.

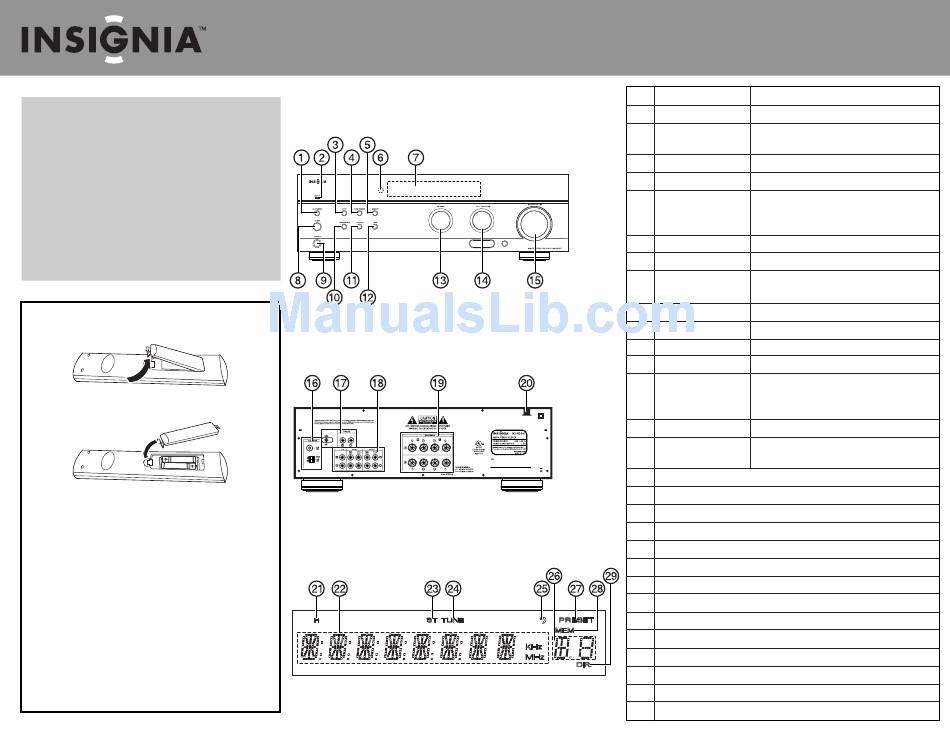

Features
Front controls
Back view
Fluorescent display
Actual product may vary from image shown.
Quick Setup Guide
NS-R2001 AM/FM Stereo Receiver
Item Description Function
1 ON/STANDBY button Press to turn on your stereo receiver.
2 STANDBY indicator Lights blue when your stereo receiver is
in standby mode.
3 BAND button Press to toggle between AM and FM.
4 TUNING/PRESET button Press to toggle between tune and preset mode.
5 MEMORY button Press to save a station preset.
Press and hold to automatically search for FM
stations and store them in memory.
6 Remote sensor Receives the signal from the remote control.
7 Display Provides information about the receiver.
8 POWER button Press to turn the power on to your stereo receiver
and put it into standby mode.
9 HEADPHONE jack Plug stereo headphones into this jack.
10 SPEAKER A/B button Press to toggle between speaker A and speaker B.
11 BALANCE button Press to turn the balance mode on.
12 TONE button Press to turn the tone mode on.
13 UP/DOWN knob Turn to tune the radio up or down, or to adjust
such as tone or balance, depending on the
receiver mode.
14 INPUT SELECTOR knob Turn to cycle through the available receiver inputs.
15 MASTER VOLUME Turn to increase or decrease the volume.
control knob
16 AM and FM antenna jacks
17 PHONO jacks
18 Audio input jacks
19 Speaker terminals
20 AC power cord
21 Headphone indicator
22 Input, frequency, volume level, operating information
23 Stereo indicator
24 TUNE indicator
25 Sleep indicator
26 Preset number, sleep time display
27 PRESET indicator
28 MEM indicator
29 Tone direct indicator
