D-Link DSL-524T User Manual page 83

To perform the following tests, choose the PVC (Private Virtual Connection) that you wish to test and
click Apply. Test results will either be displayed as Pass or Fail. The following tasks will be
performed:
Testing Ethernet
LAN Connection
Testing ADSL
Synchronization
Testing ATM
OAM segment
ping
Testing ATM
OAM end to end
ping
Ping Primary
DSL-524T ADSL Router Manual

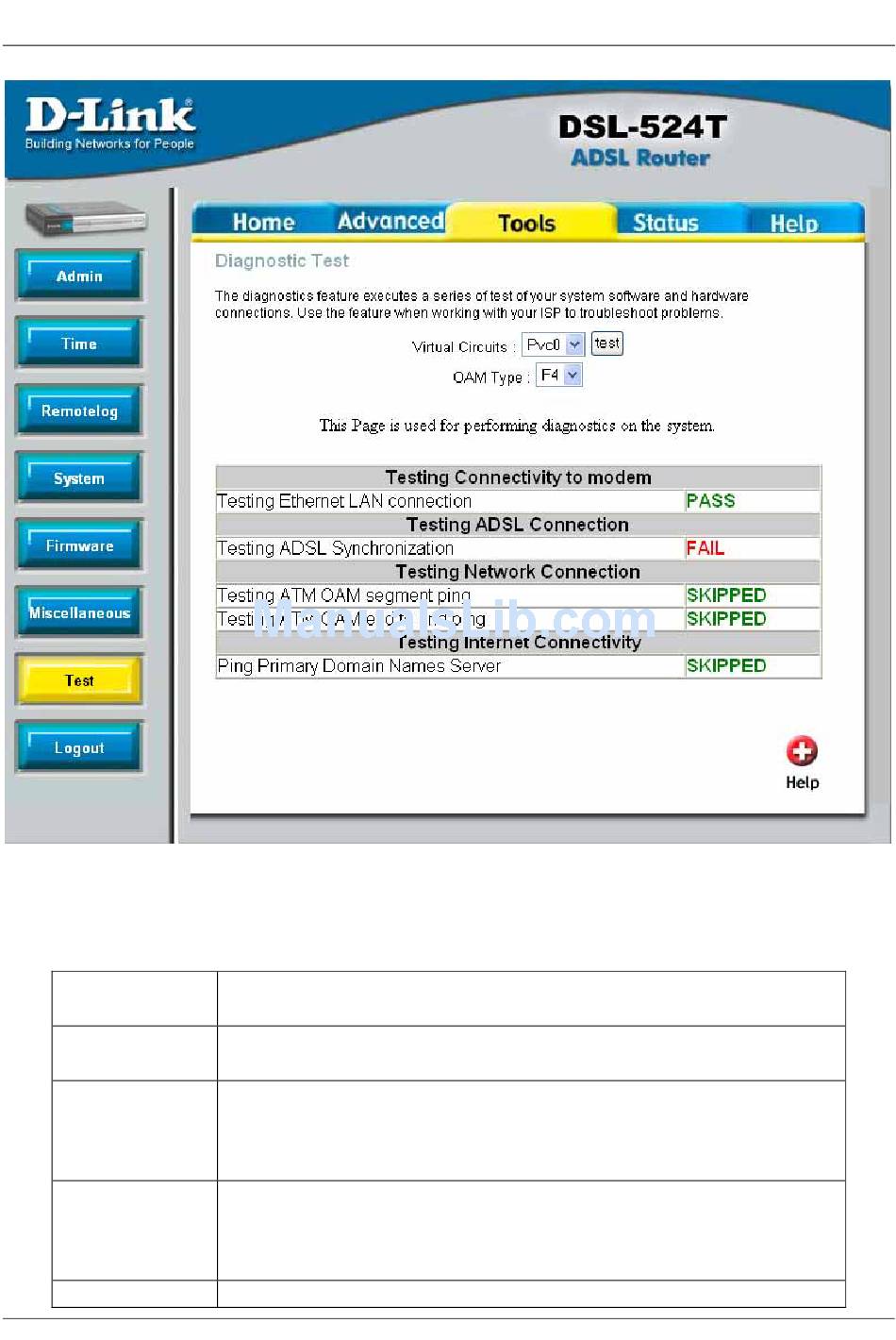

Figure 6- 7. Diagnostics window
This test will check the Ethernet connection of your Router.
This test will check the ADSL line connected to your Router.
This test will check the PVC connectivitiy by sending out an OAM
(Operation Administration Management) packet. If the remote device
on this segment returns the ping packet, the PVC has passed the test
and a Pass result will appear.
This test will check the PVC connectivitiy by sending out an OAM
(Operation Administration Management) packet. If the remote device
returns the ping packet, the PVC has passed the test and a Pass result
will appear.
This test will check to see if the Primary DNS is accessible from the
83
