Summary of Contents for Omron Z300

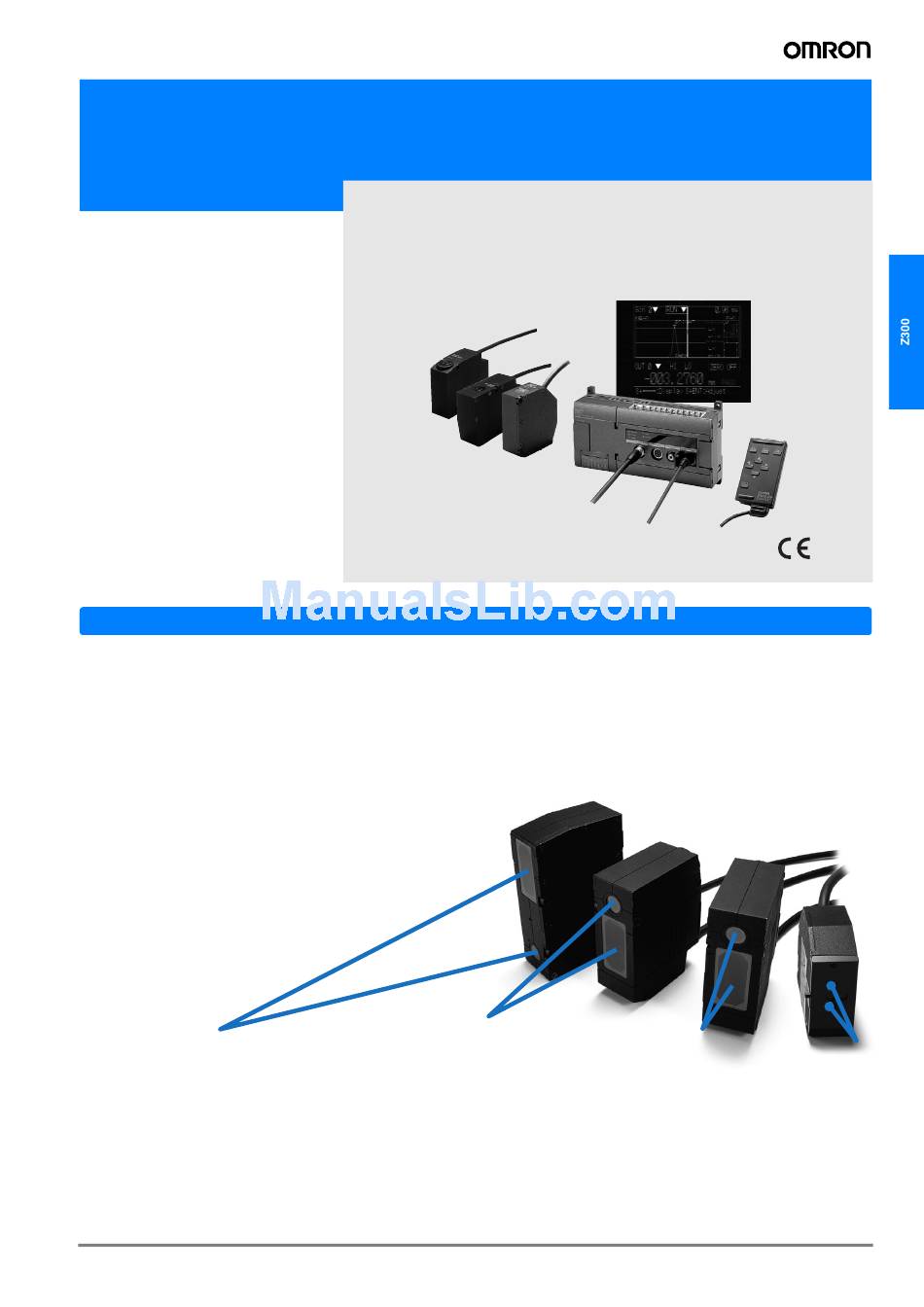

Page 1
The latest algorithm employed by the Z300 enables optimal sensitivity even if there is a big difference between the amount of reflected light from the surface and that from the bottom of a glass.
Page 2
The innovative 2-dimensional CCD (S-CCD) is the key to the sensing performance. The 2-dimensional CCD enables stable, high-speed CCD makes a difference in measurement of a measurement. transparent object. A conventional displacement sensor using a 1-dimensional PSD sensor CCD cannot deal with flutter influence to the output. There-...
Page 3
Measurement data can be recorded and played back. Easy-to-see color display is another great feature of the Z300 (when connected to a color monitor). Monitoring at each key stage including test and adjustment, operation, or maintenance greatly facilitates efficient, error-free measurement.
Page 4
Expert menu is available for more advanced measurement. Detailed setting conditions can be conveniently programmed using the menu. Enhanced hold functions widen the scope of application. With discrete hold functions equipped within the controller, the Z300 provides a variety of trigger (measurement timing) functions, making otherwise difficult applications a reality — with ease. Hold functions...
Page 5
Application Measuring the thickness of transparent film Measurement of electrode position in the display module Measuring the thickness of sheet Measurement of warping in transparent plastic Inspecting the surface uniformity of a hard disk Shape measurement for welding robot control...
Z300-KP Liquid Crystal Monitor F150-M05L Sensor Extension Cable Z309-SC1R (See note) Cable length: 1.5 m, 3 m, 6 m, 8 m, 13 m or 18 m Monitor Cable F150-VM Note: Specify the required cable length when ordering. B-36 Displacement sensors / Width-measuring Sensors...
Page 7
Note: 1 . Defined at 1/e (13.5 %) of the density at the light center. Light may, however, be present outside this range and if the reflection factor of the light around the workpiece is high compared to the workpiece, measurement may be affected.
Page 8
In magnetic fields, it may not be possible to maintain resolution performance characteristics. 6 . These figures are for when the Sensor is connected to the Z300-VC10EV3/VC15EV3, the average number of measurements is 256, and M command RS- 232C output is used.
Page 9
The full scale for output can be divided into a maximum of 40000 gradations. resolution Resolution (See note.) * 0.25 mV (±5 V), 0.4 µA (4 to 20 mA) Note: For measurement at an average number of times of 64 with an OMRON K3AS Linear Sensor Controller connected. Z300 B-39...
Page 10
Supply voltage Current consumption Approx. 700 mA Operating: 0 ° C to +50 ° C, Storage: -25 ° C to +65 ° C (with no icing or condensation) Ambient temperature Ambient humidity Operating and storage: 35 to 85 %RH (with no condensation) Weight (including packaging) Approx.
Note: Europe: Class 2 and Class 3B of EN60825-1: 1994 = IEC60825-1: 1993 If the Unit must be used without terminating the laser beam U.S.A.: Class II and Class IIIB of FDA (21 CFR1040.10)
Page 13
1.6 to 4.8 (46 max.) Mounting bracket POWER SYNC TRIG (100) (5.5) Monitor cable (F150-VM) Tolerance: ±1 mm SHIFT The dimensions in parentheses are reference values. Z300-KP CONSOLE Panel opening dimensions 2000 +0.5 mm 133.5 +0.5 mm 175.5 Z300 B-43...
Page 14
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. Q01E-EN-02 In the interest of product improvement, specifications are subject to change without notice. B-44 Displacement sensors / Width-measuring Sensors...
