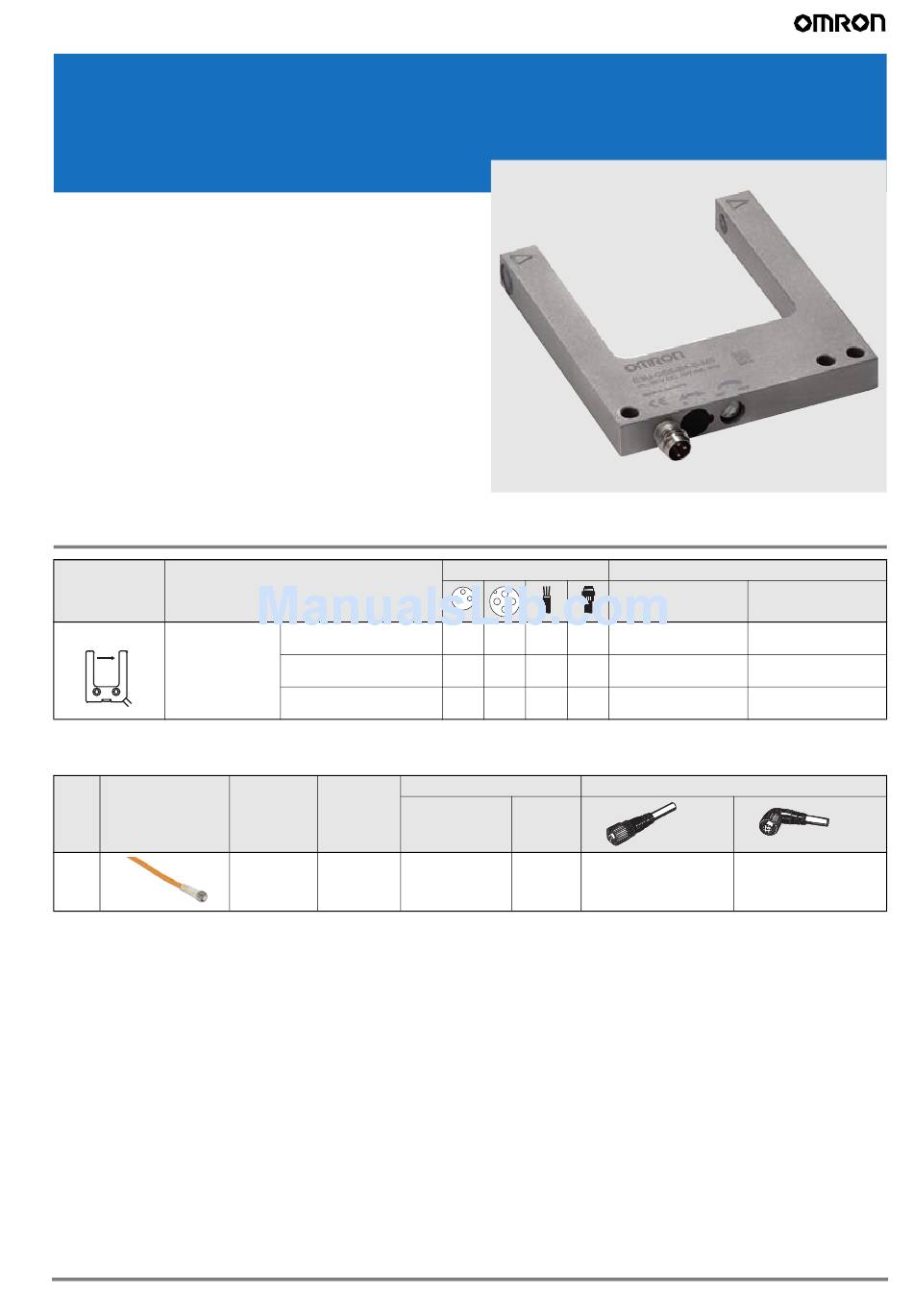

Photoelectric sensors in stainless steel fork shape housing
E3U-GS_-S
The fork shape of the E3U-GS photoelectric sensors provides
simple installation, positioning and alignment for the detection
of objects. The detergent resistant stainless steel (SUS 316L)
housing makes this sensor ideal for usage in frequently
cleaned areas.
• Detergent resistant stainless steel (SUS 316L) housing
• Slot sizes from 50 to 120 mm
• Visible red LED for simple and precise positioning
• Easy adjustment by potentiometer and L-on/D-on switch
Ordering Information
Sensor type
Sensing distance
Through-beam
Red light
Accessories
Sensor I/O connectors
Size
Shape
M8
Note: For the complete list of sensor I/O connectors refer to E26E Accessories datasheet.
E3U-GS_-S
50 mm slot width
80 mm slot width
120 mm slot width
Type
Features
Material
Nut
Detergent
3 pin
Stainless steel
resistant
Connection method
Order Code
NPN output
E3U-GS5-C4-S-M5
–
–
–
E3U-GS8-C4-S-M5
–
–
–
E3U-GS12-C4-S-M5 E3U-GS12-B4-S-M5
–
–
–
Order code
Cable
PVC 2 m Y92E-S08PVC3S2M-L Y92E-S08PVC3A2M-L
PNP output
E3U-GS5-B4-S-M5
E3U-GS8-B4-S-M5
1
