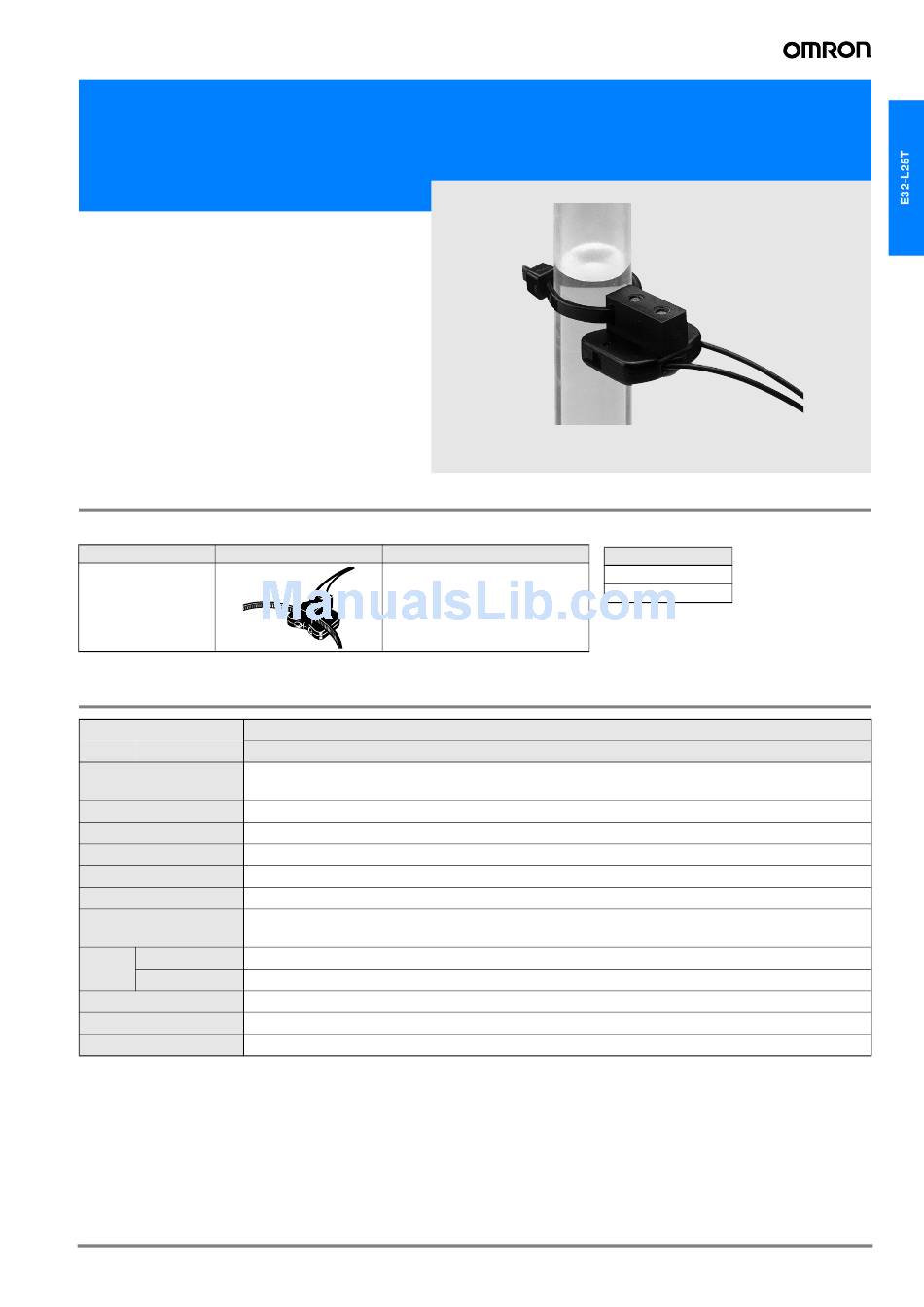

Omron E32-L25T Datasheet

Fluid level sensor (fiber pipe type)
E32-L25T
For installation of thin pipe (thick-
ness of 10 mm) that can be used
even in combustible atmospheres
● Easy post-installation on unit or pipe using band.
● Affordable pricing makes a big contribution to cost
reduction when upgrading equipment.
● Thin pipe of thickness = 10 mm. Contact mounting is
possible to enable detection of level differences to a
minimum of 4 mm.
● Can also be used in combustible atmospheres.*
* Plastic is used in the lens, unit case, and fiber coating. Avoid contact
with solvents as these will cause corrosion and deterioration (cloud-
ing).
Ordering Information
Fiber Units
Sensor type
Reflective model
Rating/performance
Sensing method
Item Model
Clamping pipe
Transparent pipe, 8 mm to 10 mm dia. (6 mm to 8 mm inner diameter)*1
(outer diameter)
Applicable pipe material Transparent pipe (FEP or with equivalent transparency)
Sensing object Fluid *2
Repetition precision 1 mm max.
Ambient temperature Operating/storage: -40 to +70°C (no ice formation or condensation)
Ambient humidity Operating: 35% to 85% RH, Storage: 35% to 95% RH (with no icing or condensation)
Permissible bending
10 mm min.
radius
Sensors Polycarbonate
Material
Fiber Plastic (polyethylene coating)
Protective structure IEC 60529 IP50
Weight (Packed state) Approx. 10 g
Accessories Band, anti-reflection sheet, fiber cutter
*1. The E32-L25T6 for a 6 mm dia. transparent pipe is also available. The model type is E32-L25T6.
*2. When using an opaque fluid, test detection with the unit before using.
E32-L25T
Shape
Applicable amplifier unit
Model
E3X-DA-N
E3X-NA
E32-L25T
Reflective model
E32-L25T
Model
A-365
