SENNHEISER FREEPORT - 08-08 Instructions For Use Manual

Instructions for use

   Related Manuals for SENNHEISER FREEPORT - 08-08

   Summary of Contents for SENNHEISER FREEPORT - 08-08

  • Page 1

    Instructions for use...

  • Page 2: Table Of Contents

    Statements regarding the FCC and Industry Canada rules 14 Thank you for choosing Sennheiser! We have designed this product to give you reliable operation over many years. Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field.

  • Page 3: Important Safety Instructions

    Clean the device and the mains unit only with a dry cloth. Refer all servicing to qualified service personnel. Servicing is required if the device or the mains unit has been damaged in any way, liquid has been spilled, objects have fallen inside, the device or the mains unit has been exposed to rain or moisture, does not operate properly or has been dropped.

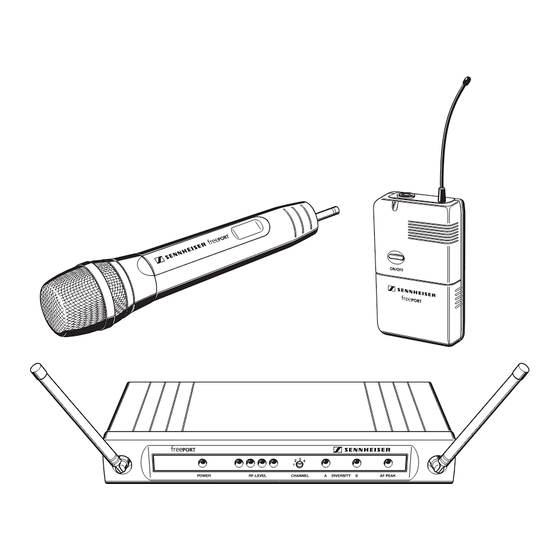

  • Page 4: The Freeport Systems

    863 to 865 MHz Notes: Use of A, B and C frequency ranges must be licensed. Most EU countries do not require licensing for use of frequency range E. Frequency range B (691 to 693 MHz) is intended for use solely in the USA and Canada.

  • Page 5: Delivery Includes, Em 1 Receiver

    DC socket for connection of mains unit Diversity indication, yellow LED ¾ (DC 11–18 V IN, 100 mA) (lights up if antenna is active) ¶ AF Type plate PEAK, red LED (lights up if the audio level is too high) Serial number...

  • Page 6

    The adjusted audio output level is common for both sockets. If the level is adjusted too high, the audio signal will be distorted. If, on the other hand, the level is adjusted too low, this will result in an audio signal with high background noise.

  • Page 7: Sk 2 Bodypack Transmitter

    Inserting/replacing the battery We recommend powering the bodypack transmitter by a 9 V PP3 alkaline battery (IEC 6 LR 61). If powered by a rechargeable 9 V battery, the operating time will be drastically reduced. Open the battery compartment by first sliding the battery compartment cover in the direction of the arrow.

  • Page 8

    Connecting the microphone/instrument cable The audio input is designed for the connection of both the ME 2 clip-on microphone and instruments (e.g. guitars). Connect the 3.5 mm jack plug from the microphone/instrument cable to the 3.5 mm jack socket ».

  • Page 9: Skm 3 Radio Microphone

    The microphone head of the radio microphone cannot be changed. Inserting/replacing the battery We recommend powering the radio microphone by a 9 V PP3 alkaline battery (IEC 6 LR 61). If powered by a rechargeable 9 V battery, the operating time will be drastically reduced. ·...

  • Page 10: Setting Up The System

    RF signal. With the transmitter, walk up and down the transmission area and check if the received RF signal is sufficient everywhere. Reception is good if all four LEDs light up. Please observe the following: Transmission range depends to a large extent on location and can be up to 100 m.

  • Page 11: Care And Maintenance

    AF PEAK on the EM 1 receiver does not light up. Care and maintenance Use a slightly damp cloth to clean the units from time to time. Note: Do not use any cleansing agents or solvents. To clean the SKM 3’s sound inlet basket: ³...

  • Page 12: If Problems Occur, Accessories And Variants

    Wind- and popshield for SKM 3 76670 MZQ 1 Microphone clamp for SKM 3 05018 ME 2 Clip-on microphone for SK 2, pre-polarized condenser microphone, omni- directional 05019 ME 3 Headmic for SK 2, pre-polarized condenser microphone, super-cardioid 05020 ME 4...

  • Page 13: Specifications Of The Freeport Systems

    (691.00 – 691.40 – 692.35 – 692.90 MHz) Range C : 742.5 to 744.5 MHz (742.65 – 743.35 – 743.85 – 744.45 MHz) Range E: 863 to 865 MHz (863.10 – 863.70 – 864.10 – 864.90 MHz) Switching bandwidth 2 MHz > 95 dB(A) Signal-to-noise ratio <...

  • Page 14: Connector Assignment

    Transmitters that operate in the frequency range E (863 – 865 MHz) can be used licence-free in the following countries: AT, BA, BE, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LI, LT, LU, ME, MK, MT, NL, NO, PL, PT, RO, RS, RU, SE, SI, SK, TR, UA.

  • Page 15: Manufacturer Declarations, Warranty, Ce Declaration Of Conformity, Batteries Or Rechargeable Batteries, Weee Declaration

    If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.

  • Page 16

    Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark, Germany www.sennheiser.com Printed in Taiwan Publ. 08/08 514013/ A05...
