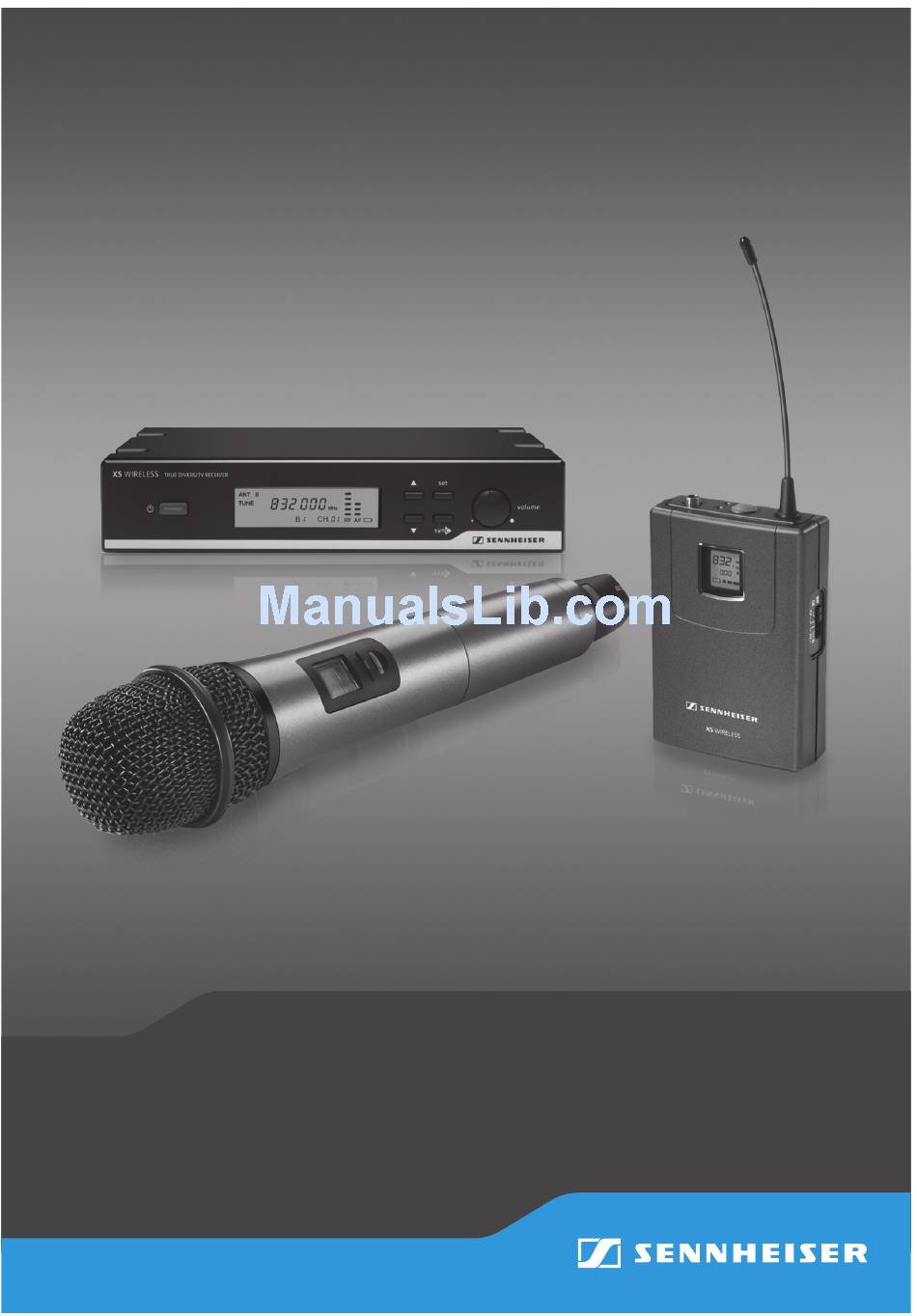

- Page 1 XS WIRELESS Instruction manual...
- Page 2 XS WIRELESS TRUE DIVERSITY RECEIVER volume sync BALANCED ANT B ANT A AUDIO OUT UNBALANCED DC 12V 300mA LINE Typenschild ANT AB 615.375 TUNE PRESET SCAN SYNC B.2 CH.12 RF AF...
- Page 3 615. 0 dB – 10 – 20 – 30 615. V AA PUSH OPEN...
- Page 4 Aperçu des fréquences et puissances d’émission spécifiques Panoramica di frequenze e prestazioni di trasmissione Relación de frecuencias y potencias de transmisión Overzicht van landspecifieke frequenties en zendvermogens Vista geral das frequências e da potência de transmissão Обзор частот и мощностей передачи 频率和发射功率总览 European Nations and her Frequency range max.
-
Page 5: Table Of Contents
Selecting and changing a receiver channel ..............10 Synchronizing a transmitter with the receiver ............... 11 Adjusting the squelch threshold ..................11 Cleaning and maintaining the XS WIRELESS systems ............12 If a problem occurs ........................12 Specifications ..........................13 Manufacturer Declarations ...................... -
Page 6: Important Safety Instructions
• WARNING: To reduce the risk of fire or electric shock, do not use the products near water and do not expose them to rain or moisture. - Page 7 Important safety instructions Bodypack transmitter and radio microphone • Do not place the products near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat. • WARNING: These products should be protected against the ingress of liquids (eg: water, sweat, etc.) as this can cause malfunctions due to shortages or corrosion, etc.
-
Page 8: The Xs Wireless Systems
The XS WIRELESS systems are available in five UHF frequency ranges with 960 frequencies per frequency range (except range E = 520 frequencies). Each frequency range (A, GB, B, C, E) offers 8 frequency banks with up to 12 channels each. The frequency banks contain factory-preset frequencies (frequency presets). -
Page 9: Delivery Includes
XSW 12 Instrument Set XSW 72 Headset Set XSW 52 A list of accessories can be found on the XS WIRELESS product page at www.sen- nheiser.com. For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com > “Service & Support“. -
Page 10: Product Overview
Product overview Product overview An overview of the products is given on the inside front cover of this instruction manual. EM 10 receiver Standby button Audio output (AUDIO OUT UNBALANCED) ¼” (6.3 mm) jack socket, unbalanced Display panel LINE/MIC slide switch... -
Page 11: Putting The Xs Wireless Systems Into Operation
Putting the XS WIRELESS systems into operation Putting the receiver into operation You can set up the receiver as a single device or mount it into a 19” rack. For information on rack mounting and optional accessories (e.g. rack mount “ears” and remote antennas), visit the XS WIRELESS product page at www.sennheiser.com. -
Page 12: Putting The Bodypack Transmitter Into Operation
Attaching the clip-on microphone Use the microphone clip to attach the ME 2-2 clip-on microphone to clothing. Conduct the cable so that noise due to friction is avoided and that the microphone cable and the antenna do not cross. Putting on the headmic Adjust the ME 3 headmic so that a comfortable and secure fit is ensured. -
Page 13: Using The Xs Wireless Systems
Check the RF signal level “RF” on the receiver’s display panel. – The RF signal level is not displayed: The receiver frequency is unused. You can put your transmitter into operation. – The RF signal level is displayed: The receiver frequency is already used. Read the chapter “Selecting and changing a receiver channel”. -
Page 14: Muting The Transmitters
Selecting and changing a receiver channel Make sure that all receivers are set to the same frequency bank in order to prevent inter- ference and intermodulation to the transmitter. Selecting a menu item and activating it... -
Page 15: Synchronizing A Transmitter With The Receiver
If the receiver still receives a signal, use the rotary switch for squelch threshold “SQ” to increase the squelch threshold so that the signal will no longer be received. If the signal cannot be eliminated in this way, set the transmitter and the receiver to a dif- ferent channel. -
Page 16: Cleaning And Maintaining The Xs Wireless Systems
Cleaning and maintaining the XS WIRELESS systems CAUTION Liquids can damage the electronics of the products! Liquids entering the housing of the products can cause a short-circuit and damage the electronics. Keep all liquids away from the products. Do not use any solvents or cleansing agents. -
Page 17: Specifications
E: 821-832 MHz and 863-865 MHz Switching bandwidth 24 MHz (range E: 13 MHz) Frequencies 960 (range E: 520), tuneable in steps of 25 kHz 8 frequency banks, each with up to 12 factory-preset channels ≥ 103 dBa Signal-to-noise ratio ≤... - Page 18 1.5 V 1.5 V 1.5 V Operating time approx. 10 hrs approx. 10 hrs approx. 10 hrs Dimensions 66 x 96 x 24 mm 250 x 54 mm 250 x 54 mm Weight 95 g 240 g 240 g Microphone type...
-
Page 19: Connector Assignment
Specifications In compliance with (EM, SK and SKM) Europe: EN 301489-1/-3/-9 Radio EN 300422-1/-2, EN 301440, EN 301357 Safety EN 60065, EN 62311 (SAR) Approved by (SK) Canada: Industry Canada RSS 123 (210), IC 2099A-XSWSK FCC-Part 74, FCC-ID: DMO XSWSK... -
Page 20: Manufacturer Declarations
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. - Page 21 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Taiwan, Publ. 01/12, 542696/A03...
