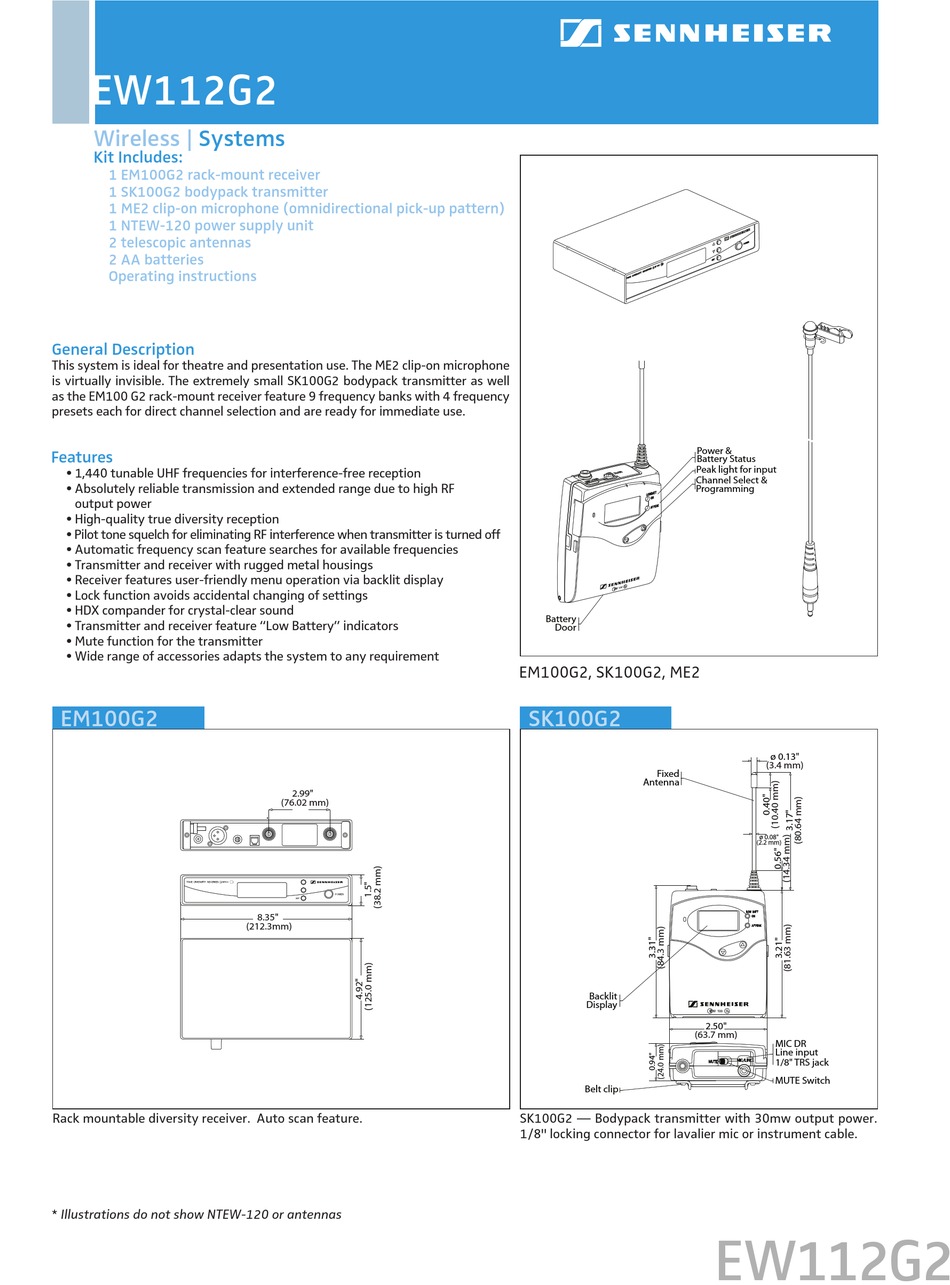

EW112G2
Wireless |
Systems
Kit Includes:
1 EM100G2 rack-mount receiver
1 SK100G2 bodypack transmitter
1 ME2 clip-on microphone (omnidirectional pick-up pattern)
1 NTEW-120 power supply unit
2 telescopic antennas
2 AA batteries
Operating instructions
General Description
This system is ideal for theatre and presentation use. The ME2 clip-on microphone
is virtually invisible. The extremely small SK100G2 bodypack transmitter as well
as the EM100 G2 rack-mount receiver feature 9 frequency banks with 4 frequency
presets each for direct channel selection and are ready for immediate use.
Features
• 1,440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF
output power
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Transmitter and receiver with rugged metal housings
• Receiver features user-friendly menu operation via backlit display
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter and receiver feature "Low Battery" indicators
• Mute function for the transmitter
• Wide range of accessories adapts the system to any requirement
EM100G2
Battery
Door
Rack mountable diversity receiver. Auto scan feature.
* Illustrations do not show NTEW-120 or antennas
63.000"
(1600.20 mm)
1/8" TRS Connector
2.99"
(76.02 mm)
Power &
Battery Status
Peak light for input
8.35"
Channel Select &
(212.3mm)
Programming
Power &
1.000"
Battery Status
(25.40 mm)
Peak light for input
Channel Select &
Programming
Battery
Door
EM100G2, SK100G2, ME2
SK100G2
Fixed
Antenna
Backlit
Display
(63.7 mm)
Belt clip
SK100G2 — Bodypack transmitter with 30mw output power.
1/8" locking connector for lavalier mic or instrument cable.
2.99"
(76.02 mm)
8.35"
(212.3mm)
ø
0.13"
(3.4 mm)
ø
0.08"
(2.2 mm)
2.50"
MIC DR
Line input
1/8"
TRS jack
MUTE Switch
EW112G2
Backlit
Display
Belt clip
