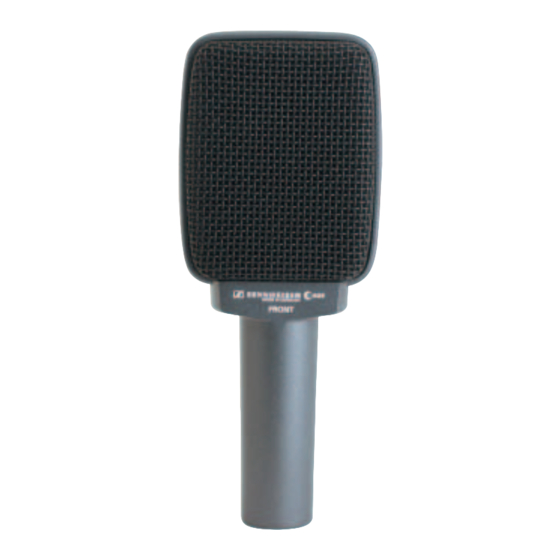

Sennheiser Evolution E 609 Product Sheet

Microphones |
General Description
The e 609 has an excellent transient response. Its laterally mounted
capsule has been specially developed for miking guitar cabs face on and
extremely close to the signal source. The e 609 is also suitable for drum
miking, particularly toms, where the microphone's profile allows the cap-
sule to be positioned close to the drum skin.
Features
Exceptional full-size sound quality
Very high sound pressure handling capability
Super-cardioid pick-up pattern provides isolation from
other on-stage signals
Hum compensating coil
Delivery includes: 1 e 609
1 microphone clip
1 pouch
Dynamic Microphone
Technical Data
Pick-up pattern ...........................................................super-cardioid
Frequency response ................................................. 40 – 18,000 Hz
Sensitivity (free field, no load, 1 kHz)...........................1.5 mV/Pa
Nominal impedance ................................................................. 350 Ω
Min. terminating impedance ..................................................... 1 kΩ
Dimensions ...........................................................55 x 34 x 134 mm
Weight ........................................................................................ 180 g
Profile
Super-cardioid instrument microphone, hum compensating
coil, frequency response 40 – 18,000 Hz, sensitivity (free field,
no load) 1.5 mV/Pa at 1 kHz, nominal impedance 350 Ω, min.
terminating impedance 1 kΩ, dimensions 55 x 34 x 134 mm,
weight 180 g.
Cat. No. 004522
