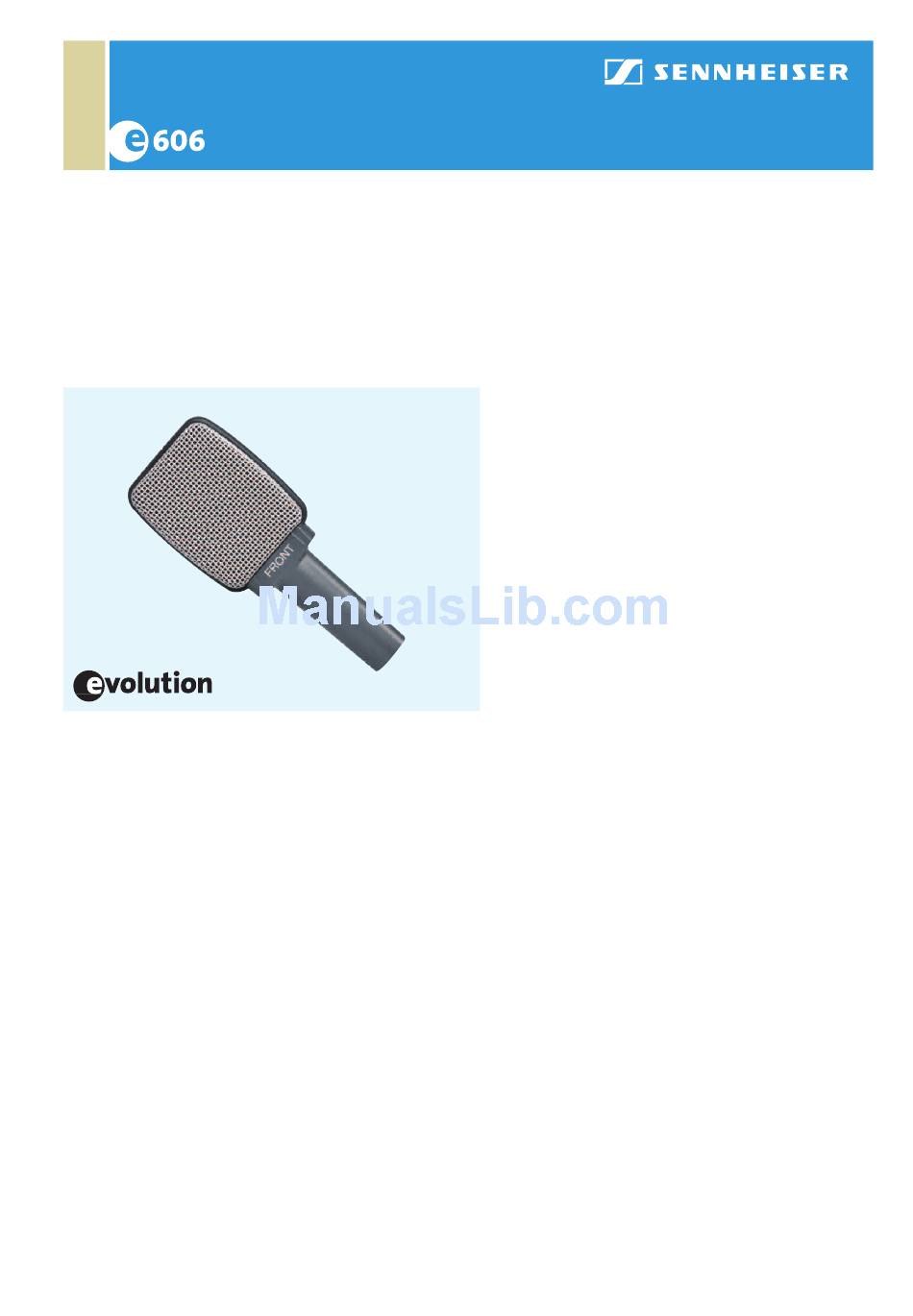

Sennheiser E 606 Datasheet

Microphones |
General Description
The super-cardioid e 606 instrument microphone has been specially
developed for miking guitar cabs face on and extremely close to the signal
source.
Features
Rugged metal body
Advanced shock-mount design
Super-cardioid pick-up pattern
Hum compensating coil
Dynamic Microphone
Technical Data
Pick-up pattern ...........................................................super-cardioid
Frequency response ................................................. 40 – 15,000 Hz
Sensitivity (free field, no load, 1 kHz)...........................1.5 mV/Pa
Nominal impedance ................................................................. 350 Ω
Min. terminating impedance ..................................................... 1 kΩ
Dimensions ........................................................ 55 x 134 x 134 mm
Weight ........................................................................................ 180 g
Profile
Super-cardioid instrument microphone, hum compensating coil,
frequency response 40 – 15,000 Hz, sensitivity (free field, no
load) 1.5 mV/Pa at 1 kHz, nominal impedance 350 Ω, min. ter-
minating impedance 1 kΩ, dimensions 55 x 134 x 134 mm,
weight 180 g.
Cat. No. 009874
