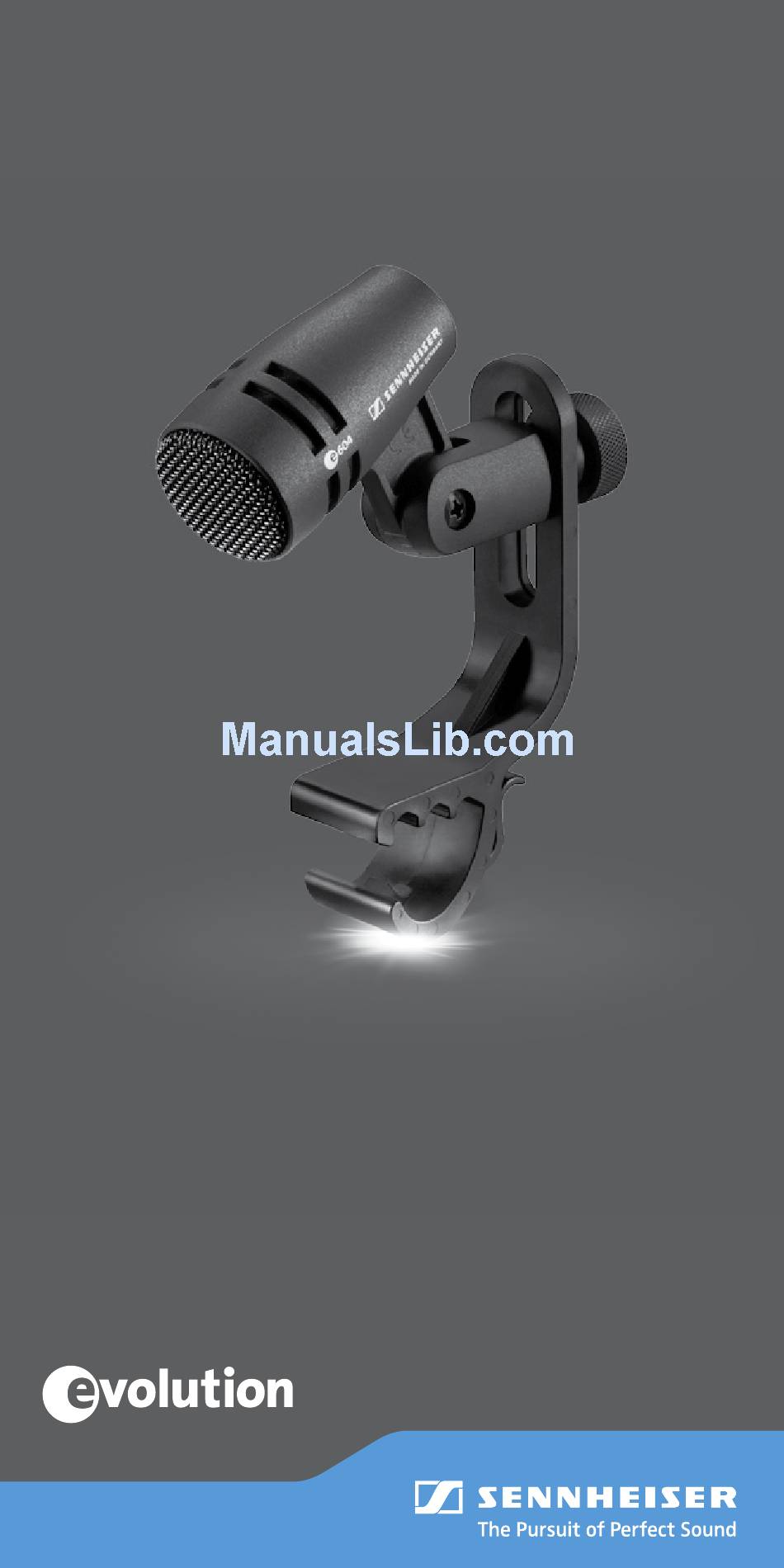

- Page 1 e 604 Instruction manual Stage Microphones...
- Page 3 0° 0° 30° 30° 125 Hz 60° 60° 250 Hz 500 Hz 1,000 Hz 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m 0°, 5 cm...
-
Page 4: Important Safety Information
• Only use attachments, accessories or spare parts specified by Sennheiser. During operation • Liquids entering the product can short-circuit the electronics or damage the mechanics. Keep all liquids away from the product. -
Page 5: Package Contents
The e 604 A clip-on classic with character Character instead of mainstream. Close to the attack, robust, easy to handle: the e 604 has long been a classic on the rims of tom-toms and snares the world over. Thanks to the practical clip-on microphone clamp, the microphone can be mounted in seconds and positioned however you choose. -
Page 6: Using The Microphone
Using the microphone Positioning the microphone on a drum B Use the microphone clamp to attach the e 604 to the rim of the drum. Pos. Resulting sound Commentary • More fundamental Position on the drum: • Little overtones 3 to 5 cm above the drumskin The fundamental to overtones ratio •... -
Page 7: Specifications
Specifications Transducer principle dynamic Frequency response 40 ... 18,000 Hz Pick-up pattern cardioid Sensitivity (free field, no load at 1 kHz) 1,8 mV/Pa 350 Ω Nominal impedance (at 1 kHz) Min. terminating impedance 1 kΩ Connector XLR-3 Dimensions Ø 33 x L 59 mm Weight 60 g The polar diagram and the frequency response curve... -
Page 8: Manufacturer Declarations
Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 11 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Publ. 08/15, 511650/A03...
