Mitel 6930 Installation Manual
Hide thumbs
Also See for 6930:
- User manual (247 pages) ,
- Quick reference manual (22 pages) ,
- Installation manual (10 pages)
Advertisement
Available languages
Available languages
Quick Links
INSTALLATION GUIDE
INSTALLATION GUIDE
MITEL 6930/6930w SIP PHONE
A

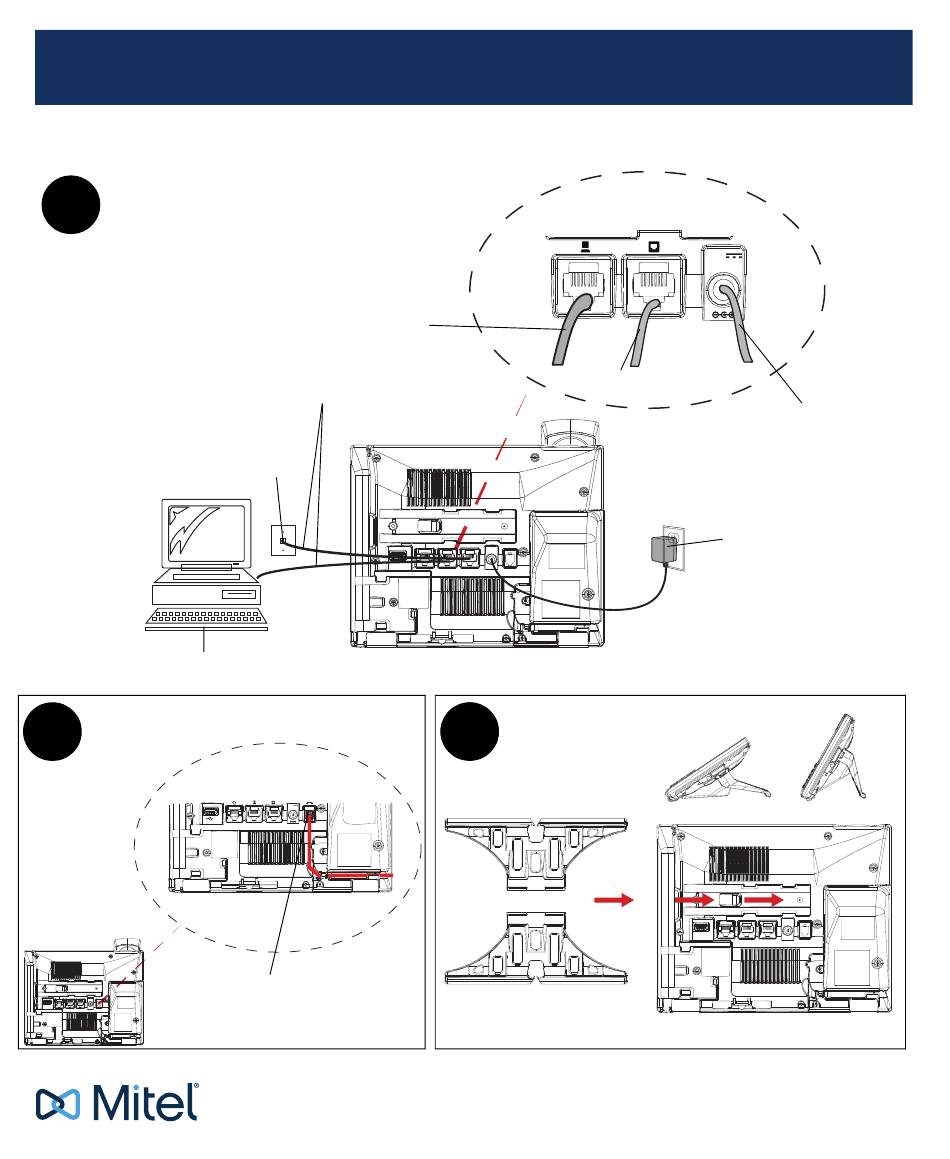

Setup
Network Jack
(if inline power provided,
do not install the power adapter)
Other Network Devices
B
Handset Connection
(Optional) To Other
Network Device
Ethernet Cables
48V
0.54A
To Handset
The Mitel word and logo are trademarks of Mitel Networks Corporation.
Any reference to third party trademarks are for reference only and Mitel makes no representation of the ownership of these marks.
Mitel's Power over Ethernet (PoE) Powered Device (PD) products are covered by one or more of the U.S. patents (and any foreign patent
counterparts thereto) identified at Mitel's website: www.mitel.com/patents.
For more information on the PD patents that are licensed, please refer to www.cmspatents.com.
© Copyright 2024, Mitel Networks Corporation. All Rights Reserved.
To Network
C
Stand Attachment
30°
60°
48V
0.54A
Power Adapter
Connection
Power Adapter
60°
30°
