- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
Contents 1. Safety and operating instructions __________________________ 28 2. Installation and hook-up _________________________________ 30 2.1 Water supply connection _____________________________________________________ 30 2.2 Electrical connection ________________________________________________________ 31 3. Description of the controls _______________________________ 32 3.1 Front panel ________________________________________________________________ 32 3.2 Information display__________________________________________________________ 32 3.3 Washing programs__________________________________________________________ 35 4. -
Page 3: Safety And Operating Instructions
1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. -
Page 4: Safety Instructions
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN. THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. -
Page 5: Installation And Hook-Up
Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 6: Electrical Connection
Installation instructions DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. -
Page 7: Description Of The Controls

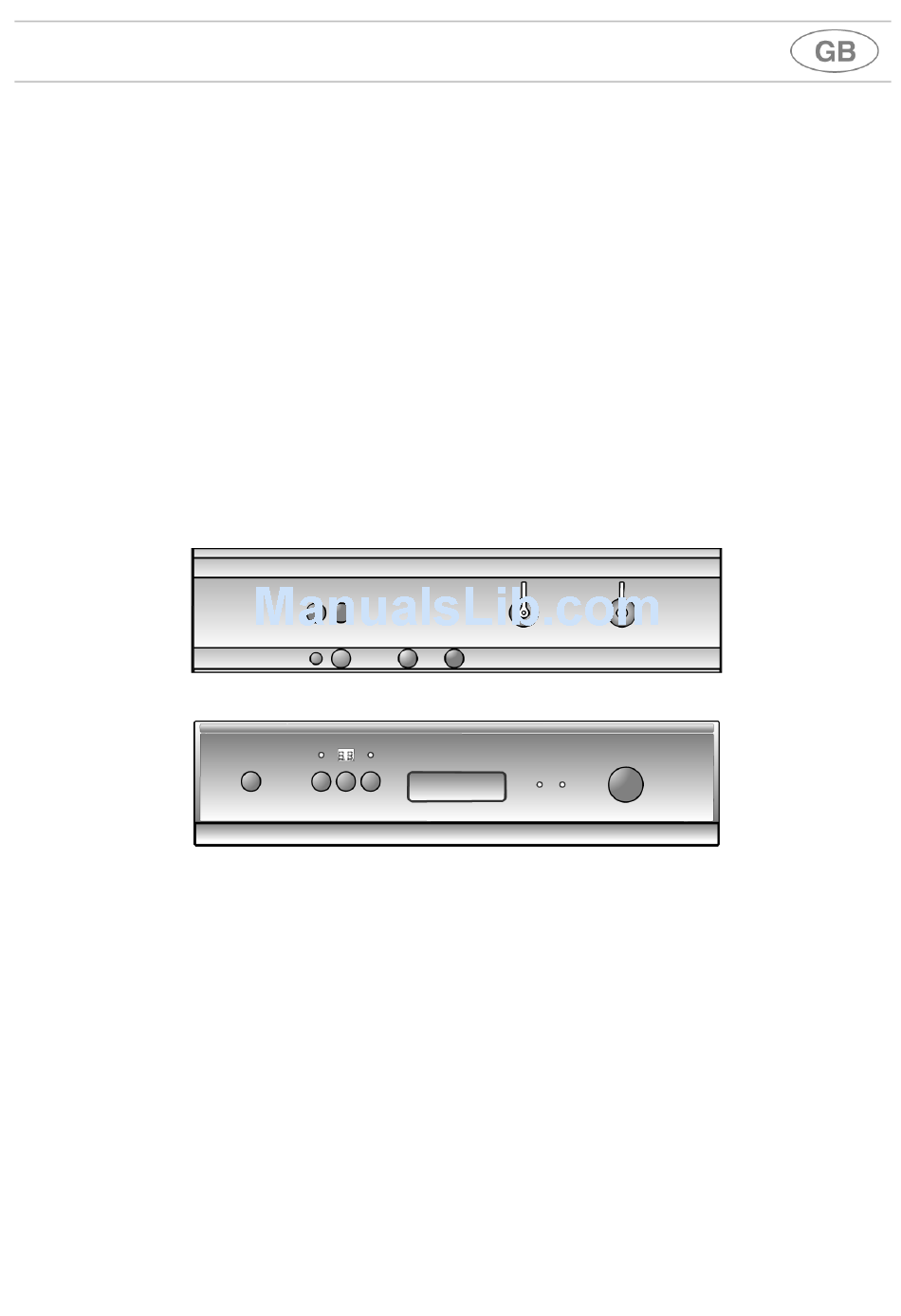

3. Description of the controls Front panel All the dishwasher's controls and indicators are located on the front panel, with layout varying depending on the models. Check whether your panel is Type "A" or "B" and then identify the control and monitoring devices in the key below. WASHING PROGRAM SELECTOR ON/OFF AND DELAYED START SELECTOR ON/OFF BUTTON... - Page 8 DISHE TYPE PROGRAM PROGRAM INFORMATION AND DEGREE SELECTOR DISPLAY OF SOILING HEAVIL Y SOILED DISHES, POTS AND PANS SUPER WITH DRIED-ON RESIDUE NORMALLY SOILED DISHES, (*) ECO POTS AND PANS EN 50242 WITH DRIED-ON RESIDUE SLIGHTLY SOILED DISHES, POTS AND PANS WITH DRIED-ON RESIDUE NORMALLY...
- Page 9 POWER SWITCH-ON (T In order to switch on the appliance just turn the ON/OFF selector (2) till it corresponds with the letter I. POWER SWITCH-ON (T To switch on the dishwasher press the ON/OFF button (3) to start the program. The PILOT light (4) will come on.
-
Page 10: Washing Programs
User instructions To re-enable the acoustic device repeat the following procedure: press down the HALF LOAD (6) button for a few seconds until the bN symbol appears on the • INFORMATION DISPLAY (7); press the HALF LOAD (6) button again to enable to acoustic device (the symbol bS appears); •... - Page 11 DELAYED START The start of the program can be delayed by 1, 2, 4, 6, 8 or 12 hours. In this way, it is possible to run the dishwasher when most convenient. Turn the DELAYED START selector (2 - 11) until it is aligned with the number of hours of delay required before the program start.
- Page 12 User instructions If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay before the program can be resumed. After correctly closing the door, press the START/STOP (5) button again . This operation may negatively affective the progress of the washing cycle. END OF CYCLE The end of the washing cycle is signalled by a brief sounding of an acoustic device and by the blinking of the selected program on the INFORMATION DISPLAY (7).
-
Page 13: Operating Instructions
4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. • Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which tend to become dull over time. - Page 14 User instructions ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an electronic device for adjusting the water softening setting according to the hardness of the water. To adjust the water softening setting, proceed as follows: "A" Press down the HALF LOAD (6) button for a few seconds until the bS symbol appears on the •...
-
Page 15: Using The Rinse Aid And Detergent Dispensers
Using the rinse aid and detergent dispensers The detergent and rinse aid dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right. With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser . -
Page 16: Adding The Detergent
User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically. When a SUPER program is selected, in addition to the normal dose of detergent, it is •... -
Page 17: General Warnings And Recommendations
General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading . There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. -
Page 18: Using The Baskets
User instructions Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom. - Page 19 User instructions CUTLERY BASKET This varies in shape according to the model and features either a single compartment or separate compartments. The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 20 User instructions LOADING THE UPPER BASKET Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels.
-
Page 21: Cleaning And Maintenance
5. Cleaning and maintenance Before carrying out any work, always disconnect the appliance from the electrical power supply. General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. -
Page 22: Cleaning The Filter Unit
User instructions CLEANING THE FILTER UNIT It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove • the filter, grip the tabs, turn them anticlockwise and lift upwards; push the centre filter D from the underside to remove it from the micro-filter: •... -
Page 23: Troubleshooting Minor Problems
TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; • there is no power failure; •... -
Page 24: Troubleshooting
6. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. In the event of a fault or malfunction, before calling the After-sales service centre, we suggest that you first consult the troubleshooting guide below. If the problem persists even after implementing the recommended solutions, call the After-sales service centre after having carried out the following: making a note of the message displayed by the self-diagnostics system;... - Page 25 TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics User instructions 597 ÷ 599 mm Free standing: 600 mm from 850 mm to 870 mm Standard place settings min.
- Page 26 Solosualcunimodelli Certainmodelsonly Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing...
- Page 27 SUPERFICIEINTERNA SURFACEINTERNE INNERSURFACE INNENFLACHE LATOSUPERIORE BORDSUPERIEURE UPPEREDGE OBERKANTE...
- Page 28 Solosualcunimodelli-Certainmodelsonly Seulementsurcertainsmodèles-nurbeieinigeModellen Sóloenalgunosmodelos-alleenindienvantoepassing Regolazionevitetensionemolle(12)-Coperturafotocontappoindotazione(13) DoorspringAdjustementdevice(12)-Coveringofholeusingcapprovided(13) Réglagedesressortsdelaporte(12)-Couverturedutrouaveclebouchonfourni(13) VorrichtungfürdieEinstellungderSpannungderTürfedem(12)- AbdeckendesLochsmitdemmitgeliefertenStopfen(13)
