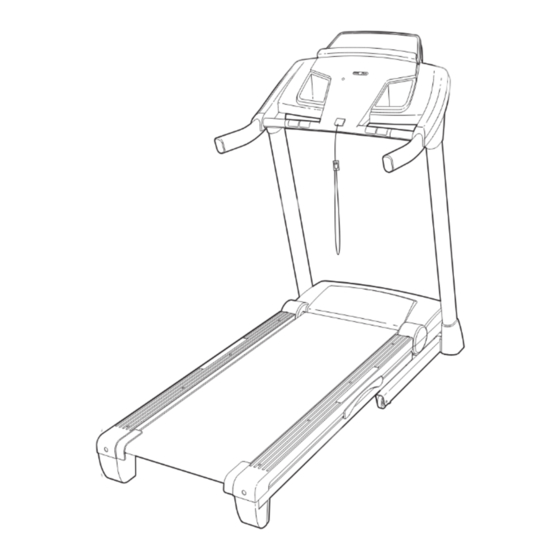

USERʼS MANUAL
Model No. NTL60010.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-800-TO-BE-FIT
CALL TOLL-FREE:
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Advertisement
Table of Contents
Related Manuals for NordicTrack NTL60010.2
Summary of Contents for NordicTrack NTL60010.2
- Page 1 All manuals and user guides at all-guides.com www.nordictrack.com USERʼS MANUAL Model No. NTL60010.2 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CON- TACT THE STORE;...
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decals may not be shown at actual size. NordicTrack is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
14. To purchase a surge suppressor, see informed of all warnings and precautions. your local NordicTrack dealer or call the tele- phone number on the front cover of this man- 3. Use the treadmill only as described. - Page 4 All manuals and user guides at all-guides.com 20. Never leave the treadmill unattended while it 24. Inspect and properly tighten all parts of the is running. Always remove the key, unplug treadmill regularly. DANGER: the power cord, and press the power switch into the off position when the treadmill is not Always unplug the power in use.
-
Page 5: Before You Begin
All manuals and user guides at all-guides.com BEFORE YOU BEGIN Thank you for selecting the revolutionary NordicTrack ing this manual, please see the front cover of this man- ® T5.3 treadmill. The T5.3 treadmill offers an impressive ual. To help us assist you, please note the product selection of features designed to make your workouts model number and serial number before contacting us. -
Page 6: Assembly
All manuals and user guides at all-guides.com ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 All manuals and user guides at all-guides.com 1. Make sure that the power cord is unplugged. Hole With the help of a second person, carefully tip the treadmill onto its left side. Partially fold the Frame (55) so that the treadmill is more stable; do not fully fold the Frame yet.
- Page 8 All manuals and user guides at all-guides.com 3. Identify the Right Upright (85), which is marked with a “Right” sticker. Hold the Right Upright near the Base (95) as shown. See the inset drawing. Tie the wire tie in the Right Upright (85) securely around the end of the Upright Wire (87).
- Page 9 All manuals and user guides at all-guides.com 5. With the help of a second person, carefully tip the treadmill onto its right side. Partially fold the Frame (55) so that the treadmill is more stable; do not fully fold the Frame yet. Attach a Wheel (96) to the Base (95) with a 3/8"...
- Page 10 All manuals and user guides at all-guides.com 8. Identify the Left Upright Cover (80). Slide the Left Upright Cover onto the Left Upright (84). Identify the Left Handrail (82). Remove the tie from the 5/16" Cage Nut (38). If necessary, press the Cage Nut back into place.
- Page 11 All manuals and user guides at all-guides.com 11. IMPORTANT: To avoid damaging the Crossbar (107), do not use power tools and First do not overtighten the #10 x 3/4" Screws (2). Orient the Crossbar (107) as shown. Attach the Crossbar to the Handrails (82, 83) with four #10 x 3/4"...
- Page 12 All manuals and user guides at all-guides.com 13. Set the console assembly on the Left and Right Handrails (82, 83). Be careful not to pinch any Console wires. Insert the excess Upright Wire (87) into Assembly the Right Handrail. Attach the console assembly to the Crossbar (107) with six #8 x 3/4"...
- Page 13 All manuals and user guides at all-guides.com 15. If necessary, press the Left Tray (103) and the Right Tray (104) into the console assembly. Console Assembly 16. Raise the Frame (55) to the position shown. Have a second person hold the Frame until this step is completed.
-
Page 14: Operation And Adjustment
All manuals and user guides at all-guides.com OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT dance with all local codes and ordinances. IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets and may not be compatible Your treadmill features a walking belt coated with high- performance lubricant. - Page 15 All manuals and user guides at all-guides.com CONSOLE DIAGRAM FEATURES OF THE CONSOLE trol the treadmill. iFit cards are available separately. To purchase iFit cards at any time, go to www.iFit.com or call the telephone number on the front cover of The treadmill console offers an impressive array of this manual.
- Page 16 All manuals and user guides at all-guides.com HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power.
- Page 17 All manuals and user guides at all-guides.com 4. Change the incline of the treadmill as desired. Speed display—This display shows the speed To change the incline of of the walking belt. the treadmill, press the Incline increase and de- crease buttons or one of the numbered incline To reset the displays, press the Stop button, re- buttons.
- Page 18 All manuals and user guides at all-guides.com HOW TO USE A PRESET WORKOUT grammed for the next segment, the speed or in- cline setting will flash in the display to alert you. 1. Insert the key into the console. The treadmill will then automatically adjust to the speed and incline settings for the next segment.
- Page 19 All manuals and user guides at all-guides.com HOW TO USE AN IFIT WORKOUT 3. Start the walking belt. To purchase iFit cards at any time, go to www.iFit.com Press the Go button or the Speed increase button or call the telephone number on the front cover of this to start the workout.
- Page 20 All manuals and user guides at all-guides.com THE INFORMATION MODE HOW TO USE THE STEREO SOUND SYSTEM The console features an information mode that keeps To play music or audio books through the consoleʼs track of the total number of hours that the treadmill has stereo speakers, you must connect your MP3 player, been used and the total distance that the walking belt CD player, or other personal audio player to the con-...
-
Page 21: How To Fold And Move The Treadmill
All manuals and user guides at all-guides.com HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. -
Page 22: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 23 All manuals and user guides at all-guides.com Remove the three #8 x 3/4" Screws (1) and carefully pivot the Motor Hood (62) off. Locate the Reed Switch (73) and the Magnet (47) on the left side of the Pulley (48). Turn the Pulley until the Magnet is aligned with the Reed Switch.
- Page 24 All manuals and user guides at all-guides.com PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
-
Page 25: Exercise Guidelines
All manuals and user guides at all-guides.com EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy. -
Page 26: Part List
All manuals and user guides at all-guides.com PART LIST Model No. NTL60010.2 R1210A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description #8 x 3/4" Screw Storage Latch #10 x 3/4"... - Page 27 All manuals and user guides at all-guides.com Key No. Qty. Description Key No. Qty. Description Console Console Base Console Frame Crossbar Left Tray Access Door Right Tray – Userʼs Manual Console Clamp Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.
-
Page 28: Exploded Drawing
All manuals and user guides at all-guides.com EXPLODED DRAWING A Model No. NTL60010.2 R1210A... - Page 29 All manuals and user guides at all-guides.com EXPLODED DRAWING B Model No. NTL60010.2 R1210A...
- Page 30 All manuals and user guides at all-guides.com EXPLODED DRAWING C Model No. NTL60010.2 R1210A...
- Page 31 All manuals and user guides at all-guides.com EXPLODED DRAWING D Model No. NTL60010.2 R1210A...
-
Page 32: Ordering Replacement Parts
All manuals and user guides at all-guides.com ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
