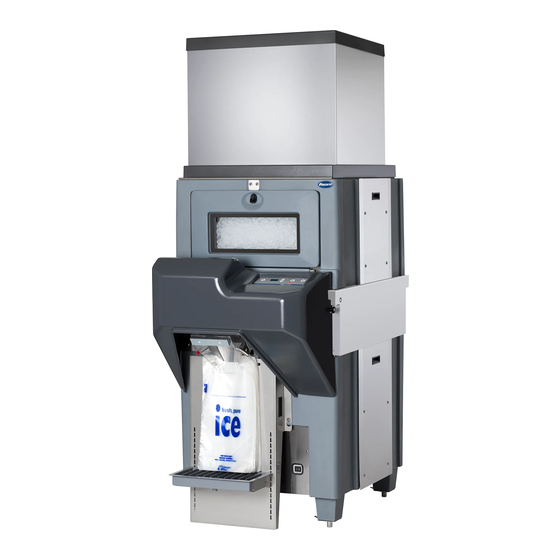

Ice Pro
DB650, EDB650 Automatic
™
Ice Bagging and Dispensing System
Installation, Operation and Service Manual
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
00913509R04
220V 60Hz
230V 50Hz
models only
models only
Advertisement
Table of Contents
Related Manuals for Follett Ice Pro EDB650
Summary of Contents for Follett Ice Pro EDB650
- Page 1 Ice Pro DB650, EDB650 Automatic ™ Ice Bagging and Dispensing System Installation, Operation and Service Manual Order parts online www.follettice.com Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 www.follettice.com 00913509R04 220V 60Hz...
-
Page 2: Table Of Contents
Contents Welcome to Follett..... 3 Replacement parts & accessories ..19 Before you begin ......3 Accessories . -
Page 3: Welcome To Follett
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper i mmediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary. -
Page 4: Specifications
Service clearance – A minimum of 12" (305 mm) to right of unit is necessary for service. Ice type Dispenser can accommodate most cube/cubelet ice up to 1" square as well as Follett Horizon™ Chewblet ice. Crushed, flake, or other manufacturers nugget ice cannot be used. Use of these ice types can jam dispenser and will void warranty. -
Page 5: Dimensions And Clearances
19.88" 8.63" (505 mm) (220 mm) 34.25" (870 mm) 1" FPT drain 1" FPT drain Notes Follett Horizon icemakers and other icemakers less than 30" wide require a top that adds 2" to standard unit height. -
Page 6: Installation
Installation Fig. 1 Bottom view Location A minimum of 12" (305 mm) to the right of the unit must be available for service clearance (see dimensions and clearances - page 5). Allow access to front of unit for bagging operation and dispensing. Leveling Leveling the unit is important for the proper operation of any top mounted icemaker. -
Page 7: Bag Pin Installation
Bag pin installation Fig. 2 1. Position plastic bag pin nuts onto the rear slots of the bag stand (Fig. 2). 2. Thread in and tighten bag pins. Foot pedal accessory Fig. 3 The optional foot pedal accessory allows dispensing of ice while keeping your hands free. - Page 8 2. Adjust bag pin width to match that of the bag wicket Fig. 5 (Fig. 5). Center bag pins evenly. 3. Remove rubber keepers from wicket and insert wicket wires Fig. 6 into bag pins. Transfer bags from wicket to bag pins. Slide 15 to 20 bags onto pins at a time until pins are full (Fig.
-
Page 9: Adjusting Drain Pan
Adjusting drain pan Fig. 8 The drain pan may be raised or lowered to accommodate different bag sizes and helps to support the bag while filling (Fig. 8). The bottom of bags should rest on the tray when adjustment is correct. 1. -
Page 10: Filling Other Containers
Filling other containers Fig. 11 1. Ensure blower is off. 2. Move chute lever to up position (Fig. 11). 3. Adjust drain pan as needed. 4. Containers up to 28.75" (731 mm) tall may be used by removing drip tray (Fig. 12). Fig. -
Page 11: Operation
Operation How the dispenser works Follett’s Ice Pro bagging and dispensing system can operate in manual or semi-automatic ice dispensing and bagging configurations. The Ice Pro dispenser features a blower to open bags for high volume, hands-free dispensing, bag holder pins for use with wicketed bags, and a programmable dispense timer. -
Page 12: Control Functions
Control functions 1. Open bag 2. Adjust time 3. Dispense ice Press to turn on blower. Press +/– to change Press Timed once to Automatically blows timed dispense duration dispense automatically. Hold Manual to top off open one bag at a time in seconds - maximum Press again to turn time: 30 seconds... -
Page 13: Cleaning And Sanitizing
Cleaning and sanitizing Fig. 13 Note: Do not clean with water jet. 13.2 Exterior care A mild detergent cleaner may be used to clean the exterior plastic sides of the bin. Stainless steel portions of the bin can be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner &... -
Page 14: Db650 Wiring Diagram, Upper Control Box
DB650 wiring diagram (with AC Tech drives), upper control box (220V, 60Hz) Before S/N L55687... -
Page 15: Db650 Wiring Diagram, Lower Control Box
DB650 wiring diagram (with AC Tech drives), lower control box (220V, 60Hz) Before S/N L55687 Note: Both upper and lower agitator motors turn counter clockwise. Drive rotation 00938738R00... - Page 16 DB650 wiring diagram (with KB drives), upper control box (220V, 60Hz) After S/N L55686 OPERATOR CONTROL PANEL TIMED MODE INCREASE PB3 - TIMED MODE LED TIME DISPLAY BAG OPEN START/STOP START/STOP LED1 BLOWER MOTOR MANUAL ON INDICATOR TIMED MODE START/STOP DECREASE PB2 - TIMED MODE STOP...
- Page 17 (X) BLU DB650 wiring diagram (with KB drives), lower control box (220V, 60Hz) (V) RED (U) BLK After S/N L55686 AUGER BLOWER FOOT SWITCH WINDOW MOTOR MOTOR (OPTIONAL) SWITCH LOWER CONTROL ENCLOSURE LOWER AGITATOR UPPER AGITATOR MOTOR CONTROL MOTOR CONTROL L1 L2 L1 L2 MAIN...
-
Page 18: Edb650 Wiring Diagram, Upper Control Box
EDB650 wiring diagram, upper control box (230V, 50Hz) OPERATOR CONTROL PANEL TIMED MODE INCREASE PB3 - TIMED MODE LED TIME DISPLAY BAG OPEN START/STOP START/STOP LED1 BLOWER MOTOR MANUAL ON INDICATOR TIMED MODE START/STOP DECREASE PB2 - TIMED MODE STOP 13 15 14 12 52 09 05 06... -
Page 19: Edb650 Wiring Diagram, Lower Control Box
EDB650 wiring diagram, lower control box (230V, 50Hz) LOWER CONTROL ENCLOSURE LOWER AGITATOR UPPER AGITATOR MOTOR CONTROL MOTOR CONTROL LINE LINE LINE REACTOR REACTOR FILTER L1 L2 L1 L2 MAIN POWER FERRITE RINGS LOWER AGITATOR UPPER AGITATOR MOTOR MOTOR 2 3 4 2 3 4 L3 T3 T9 L3 T3 T9... -
Page 20: Before Calling For Service
4. Adjust bag pins so bags are centered under chute. 5. Wet bags. 5. Install new wicket of bags. If problems persist after following this basic troubleshooting guide, call Follett’s technical service department at (877) 612-5086 or +1 (610) 252-7301. -
Page 21: Replacement Parts & Accessories
Aluminum Blunt End C Rings (box of 2500) 00137729 Foot Pedal Control Accessory 00115055 Follett Totes™ Ice Carrier 206950 Follett SmartCart™ 75 ice cart 00112771 Follett SmartCart™ 125 ice cart LSC125 Follett SmartCart 240™ ice cart 00122770 Ice Bin Paddle... -
Page 22: Upper Chassis
Upper chassis Reference # Description Part # Cover, Upper Motor (with handle) 00924100 Guard, Drip Assy 00924118 Box, Upper Agitator Motor (with plates) 00924126 Catch, Upper Housing (one) 00924134 Brush Bracket 00924142 Motor, Upper Agitator (with cable) 00924209 Shaft, Upper Drive (with key) 00924217 Key, Upper Drive Shaft 00924225... -
Page 23: Lower Chassis
Lower chassis Reference # Description Part # Knobs, Front Cover (two) 00925008 Clip, Blower Duct (with knurled nut) 00925016 Drain, Bin Assy 00925057 Frame, Bag Stand (with bag pins and handles) 00925115 Cover, Lower Control Box 00925156 Cover, Lower Cable 00925164 Blower Motor (with cable) 00925248... -
Page 24: Lower Chassis (Cont.)
Lower chassis (cont.) Reference # Description Part # Cover, Lower Motor (with handle) 00925107 Box, Lower Agitator Motor (with plates) 00925123 Latch, Draw (one) 00925131 Plate, Guide (one) 00925149 Leg, Adjustable (one) 00925172 Motor, Lower Agitator (with cable) 00925206 Shaft, Lower Drive (with key) 00925214 Key, Lower Drive Shaft 00925222... -
Page 25: Dispense Auger
Dispense auger Reference # Description Part # Clamp, Auger Tube Assy (with knob) 00925024 Pivot, Rear Chute Assy 00925032 Pivot, Front Chute Assy 00925040 Knob, Auger Clamp 00925065 Chute, Rear Stainless 00925180 Motor, Auger (with cable) 00925255 Coupling, Auger Drive Assy 00925263 Auger, DB650 00925347... -
Page 26: Electrical System, Upper Box
Electrical system, upper box DB650 and EDB650 Reference # Description Part # Control Panel (mounted on cover) 00924621 Circuit Board 00924639 Circuit Breaker 00924647 Electrical system, lower box L55687 DB650 only (AC Tech drives) - Before S/N L55687 DB650 only (AC Tech drives) - Before S/N Reference # Description Part #... - Page 27 Electrical system, lower box DB650 only (KB drives) - After S/N L55686 DB650 only (KB drives) - After S/N L55686 Reference # Description Part # VFD KB Motor Controller, Upper and Lower Agitator, DB650 00925651 Fuse Block 00925610 Fuse, Kit (4 10-amp, 2 5-amp) 00925628 Switch, Rocker 00925636...
