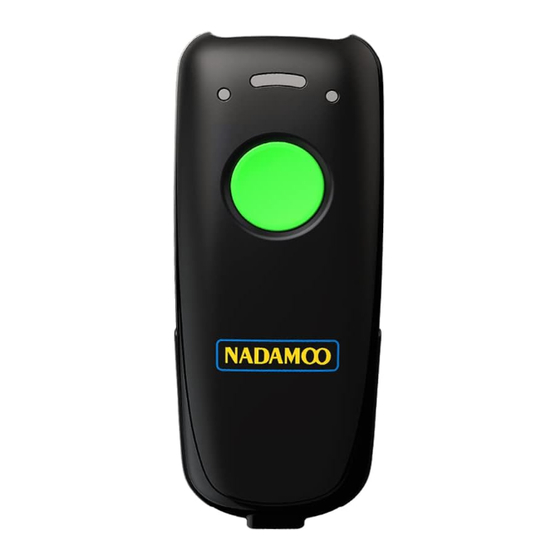

- Page 1 Bur3076 1D Barcode Scanner User Manual Tech Support: Server@nadamoo.cn nadamoo@126.com V3.1-3...
- Page 3 Please keep this instruction for future reference . If you have any question or concern about the operation of the scanner, please contact us at following Email: server@nadamoo.cn nadamoo@126.com You are suggested to write down the model & the specific...
-
Page 4: Table Of Contents
Contents Technical Parameter ......Packing List ......Light Indicator Description ......Quick Start Guide ......1. Bluetooth Mode ......2. 2.4G Wireless Mode ......3. Wired Mode ......FAQs ......Optional Function settings ......1. Upload Mode Setting ......2. Scanning Mode Setting ...... -
Page 5: Technical Parameter
Technical Parameter Model-Number Bur3076 Connection Bluetooth + 2.4GHz Wireless + wired Distance ≤50m （Bluetooth），≤100m （Wireless） Memory 16M = 100000 barcodes Battery capacity 1200mAh Sensor CCD Image Sensor Working current 4.1V Charging power 5V-400mA Printing Contract >25% Decoding accuracy ≥3.3mil@PCS90% CODE39... -
Page 6: Packing List
Packing List Barcode Scanner * 1 Mini USB receiver * 1 USB Cable * 1 User Manual * 1 Light Indicator Description Dimensions：120X48x23mm LED1:Decoder indicator When the reading is successful,the green light flashes once. LED2: Bluetooth status indicator * When the scanner enters into bluetooth pairing, the blue LED 2 and green LED 3 will flicker alternately . -
Page 7: Quick Start Guide
Quick Start Guide The scanner support 3 connections: Bluetooth mode + wireless mode + wired mode. It is suggested to use 2.4GHz wireless mode & wired mode on the computer, use bluetooth mode on the smartphone, tablets. 1. Bluetooth Mode Quick Start Guide --To use the scanner on Android / iOS device Step1. - Page 8 Instant Upload Mode Step 5. Test the scanner using notepad, put cursor to the blank, scan a barcode to see if it can be uploaded. Note 1: Once the pairing is complete, the keyboard of your device will disappear. ** To show or hide iOS keyboard. Method 1: S can the following code, it will activate the soft keypad;...
- Page 9 ** To show Android keyboard, it needs to install the “CILICO Bluetooth barcode input method” APP. Please contact us （server@nadamoo.cn） for the app and tutorial. Note 2 ：If scanner leaves out character，please slow down speed . High Speed* Medium Speed...
-
Page 10: Wireless Mode
2. 2.4GHz Wireless Mode Quick Start Guide --To use the scanner on computer Step 1. Scan the code “2.4GHz wireless mode" to set the scanner 2.4GHz wireless mode. The green LED 3 flashes. 2.4G Wireless Mode Step 2. Scan the code “ Match", the green LED 3 flashes. Match Step 3. -
Page 11: Wired Mode
Note 2: If you want to set the scanner back to bluetooth mode, please press and hold the button for 8 seconds or scan the code “bluetooth mode””Match”. When the blue LED 2 turns on, it means the scanner successfully changes mode to bluetooth mode. 3. -
Page 12: Faqs
FAQs: Q1. If i scan a product barcode, will it include the name of the producin the file automatically? The scanner works like a keyboard. The scanner does not interpret what the barcode is, it just "types" out a string of alphabet numeric characters that the barcode represents. - Page 13 Please set the scanner to instantly upload data by scanning the code “Instant upload mode”on page 10. Q4. Some barcodes can not be read, why? A. Incomplete and unclear barcodes might not be read. B. It is possible that the setting is off by default for some barcode types which are not commonly used.
-
Page 14: Optional Function Settings
Optional Function Settings Settings of the barcode scanner can be changed by scanning the setup barcodes included in this manua 1.Upload Mode Setting Three kinds of upload mode are supported under Bluetooth mode and 2.4GHz wireless mode. A.Instant upload mode: Scanning barcode and real-time upload the barcode straight to the file you have open. - Page 15 ** To upload data from memory, open the notepad, put the cursor in the blank, and then scan the ʻUpload Dataʼ barcode, it will upload all the stored barcode at a time. Upload data ** To show total number of stored barcode, put the cursor in the blank, and then scan the “Show total storage”barcode.
-
Page 16: Scanning Mode Setting
2.Scanning Mode Setting Three kind of scanning modes are supported. 2.1. Manual Trigger Mode （default） In this Manual Trigger Mode , the barcode reader starts reading after pressing the button, and the barcode reader stops reading after successfully reading or unlocking the trigger button. ** Scan the following codes to set the scanner to Manual trigger mode. -
Page 17: Beep Setting
** To set the scanner to auto-sensing mode, scan code“Manual Trigger Mode” first, then scan code”Auto-sensing Mode-On”. Auto-sensing Mode-On Auto-sensing Mode-Off 3.Beep Setting Scanning Beep（Module）- Off Scanning Beep（Module）- On Low Tone High Tone To turn off the shutdown sound and the startup sound, please read “Scanning Beep（Module）... -
Page 18: Standby Setting
5. Stand-by Setting By default, the scanner will start standby mode if there is no operation on it over 5 mins. Short press on the button can wake it up. To change the sleeping time interval, scan one of the following barcode to set the time interval, when it's idle exceeding the time interval you set, the scanner will enter into stanyby mode. -
Page 19: Terminator Setting
7. Terminator Setting To add Tab after barcode , scan the code “Tab” To add Enter after barcode , scan the code “Carriage Return ” To set no-termination, scan the code “None” Carriage Return （ENTER）* None 8. Lower & Upper Case Setting The scanner can change the letter case of barcode into uppercase or lowercase. -
Page 20: Keyboard Language Setting
9. Keyboard Language Setting The scanner support 10 international keyboards. You are suggested to set the keyboard language of the scanner to be in agreement with that in real use by scanning the correspondent barcode listed below. English German French Spanish Italian Japanese... -
Page 21: Restore Defualt
10.Restore Default You are most likely to use these bar code in the following situations： 1、You have forgotten what settings were made for the barcode reader before, and you do not want to use the previous settings。 2、Accidentally scan to other function settings code, which led to the scanning function can not be used normally. -
Page 22: Barcode Type On / Off
11.Barcode On & Off Reverse 1D barcode （white1d barcode on black background） Reverse 1D barcode-Off* Reverse 1D barcode-On EAN & UPC EAN 8 EAN8- Off EAN8-On* EAN8 Check Digit-Off EAN8 Check Digit-On* EAN13 EAN13-Off EAN13-On* EAN13 Check Digit-On* EAN13-Check Digit-Off EAN13 To ISBN-On EAN13 To ISBN-Off*... - Page 23 EAN13 To ISSN-On EAN13 To ISSN-Off* UPCE UPCE-Off UPCE-On* UPCE Check Digit-On* UPCE Check Digit-Off The UPCE barcode contains 8 digits. The 8th digit is the check digit. It is used to verify the accuracy of the bar code. The scanner outputs check digit by default. UPCE System Digit-Off UPCE System Digit-On* ystem digit...
- Page 24 UPCA Check Digit - Off UPCA Check Digit - On* The UPCA barcode contains 12 digits. The 12th digit is the check digit. It is used to verify the accuracy of the bar code. The scanner outputs check digit by default. UPCA System Digit - Off UPCA System Digit - On* The first digit is the system digit, which identifies the commodity category.
- Page 25 Code39 Code39-On* Code39-Off Start / Stop Digit-On Start / Stop Digit-Off* Code 39 Full ASCII-Off Code 39 Full ASCII-On* Code 93 Code 93-Off Code 93-On* Code 11 Code 11-Off Code 11-On* Interleaved 2 of 5 Interleaved 2 / 5 - On* Interleaved 2/ 5 - Off...
- Page 26 Industrial 2 of 5 Industrial 2 of 5 - On* Industrial 2 of 5 - Off Standard 2 of 5 ( IATA ) Standard 2 of 5 - On* Standard 2 of 5 - Off China Post China Post - Off* China Post - On Codebar ( NW7 ) Codebar - On*...
- Page 27 MSI Plessy - Off* MSI Plessy - On Rss Limited Rss Limited - On Rss Limited - Off* GS1 DataBar Omnidirectional（RSS Omnidirectional） GS1 DataBar Omnidirectional - On GS1 DataBar Omnidirectional -Off* Code128 Code128-Off Code128-On* Matrix 2 of 5 Matrix 2 of 5-On* Matrix 2 of 5-Off...
-
Page 28: Insert And Delete Character
12. Insert and Delete Character The barcode scanners permit special characters to be added / deleted at the beginning (prefix) or end (suffix) of the scanned barcode. During setup, please do not scan other unrelated barcodes, otherwise the scanner will exit the character addition settings. - Page 29 12.2. Insert Character After Barcode Step1： Scan the code below to enter setting mode. Insert character after barcode Step2. Scan the character code. (character tablet is on page 28） E.g. To add prefix C,d, scan the character code one by one. After that，...
- Page 30 12.3 Hide character From Start Position Step1： Scan the code below. Hide character from start position Step 2： Scan desired code to hide the corresponding character. 1 character 2 character 3 character 4 character 5 character 6 character 7 character 8 character 9 character 10 character...
- Page 31 Example: For barcode 123456789, if you want to limit the result characters to 3456789 ("12" in the barcode is hidden), you can scan these codes below. “Hide character from start position" >”2 character” Note 1： To reinstate hidden leading character，scan code below. Reinstate leading character...
- Page 32 12.4 Hide character From End Position Step1： Scan the code below. Hide character from end position Step 2： Scan desired code to hide the corresponding character. 1 character 2 character 3 character 4 character 5 character 6 character 7 character 8 character 9 character 10 character...
- Page 33 Example: For barcode 123456789, if you want to limit the result characters to 123456 ("789" in the barcode is hidden), you can scan these codes below. Hide character from end position “ " >”3 character” Note 1： To reinstate hidden ending character，scan code below. Reinstate ending character...
-
Page 34: Ascii Table
ASCII Table Backspace... - Page 35 ！ " & Space...
- Page 36 < >...
