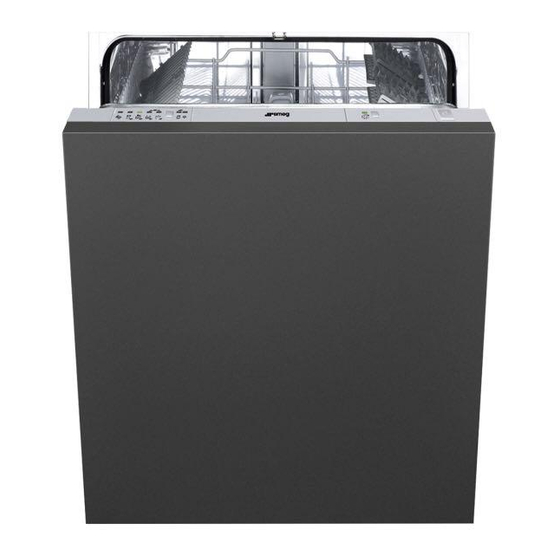

- Page 1 INSTRUCTION MANUAL GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS...
-
Page 3: Table Of Contents
Contents Safety and operating instructions ___________________________ 2 Installation and hook-up___________________________________ 5 Description of the controls _________________________________ 9 Operating instructions ___________________________________ 19 Cleaning and maintenance _______________________________ 31 Troubleshooting ________________________________________ 35 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher. -
Page 4: Safety And Operating Instructions
Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. -
Page 5: Safety Instructions
Safety instructions OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, ETC.). THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE). - Page 6 LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK. NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER IT. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.
-
Page 7: Installation And Hook-Up
Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 8: Installation Instructions
Installation instructions CONNECTING TO THE WATER SUPPLY Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied with the dishwasher. Take care to screw the hose firmly into place with your hands and then complete by tightening about ¼... - Page 9 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
- Page 10 Installation instructions FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.
-
Page 11: Description Of The Controls
User instructions 3. Description of the controls 3.1 Upper panel All the dishwasher controls are grouped on the upper panel. Switch-on, programming, switch-off, etc. procedures are only possible when the door is open. The panel shown is only a guideline example: the form of the lights and buttons may vary depending on the model. -
Page 12: User Instructions
Depending on the model, this zone may contain one or more of the following options, identified by the relative symbols and described in more detail in the relevant sections of the manual. It is not possible to select any options when the soak program is being used. - Page 13 User instructions PROGRAMS TABLE The manual contains the programs table for several models. To find the table for your dishwasher, compare the program symbols at the top of the table with those on your control panel. SETTING THE WASHING PROGRAM AND SWITCHING ON After identifying the most suitable program with the aid of the programs table: •...
- Page 14 PROGRAMME LOAD CROCKERY AND NUMBER CUTLERY & SYMBOL 1 SOAK Pans and dishes awaiting completion of the load 2 LIGHT Delicate dishes with light 3 ECO (*) Dishes with normal dirt, even with dried-on residues EN 50242 4 NORMAL Dishes with normal dirt, even with dried-on residues IEC/DIN...
- Page 15 PROGRAMME LOAD CROCKERY AND NUMBER CUTLERY & SYMBOL 1 SOAK Pans and dishes awaiting completion of the load 2 LIGHT Delicate dishes with light dirt 3 ECO (*) Dishes with normal dirt, even with dried-on residues EN 50242 4 NORMAL Dishes with normal dirt, even with dried-on residues...
- Page 16 PROGRAMME LOAD CROCKERY AND NUMBER CUTLERY & SYMBOL 1 SOAK Pans and dishes awaiting completion of the load 2 LIGHT Delicate dishes with light 3 ECO (*) Dishes with normal dirt, even with dried-on residues EN 50242 4 HALF LOAD Half load of dishes with normal dirt, washed immediately after use.
- Page 17 User instructions 3.2 Washing programs Before starting a washing program make sure that: • The water supply tap is open. • The softener container contains regenerating salt. • The correct amount of detergent has been added to the dispenser. • The baskets have been correctly loaded.
- Page 18 User instructions Flexi Tabs Ideal for multi-function detergents, this option allows washing to be optimised, with full benefits from the combined-action tablets. When this option is activated, any salt and rinse aid in the relative containers will not be used. If the option is not provided, we recommend the use of conventional products (separate detergent, salt and rinse aid), because with conventional washing cycles, combined products might create problems...
- Page 19 User instructions PROGRAM DELAY The start of the program can be delayed by 3, 6 or 9 hours. This allows you to set the dishwasher to work at the times of day most convenient to you. After setting the program, press the button to select the delay you require;...
- Page 20 TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT • Always use the dishwasher with a full load. • Do not wash the dishes in running water. • Use the washing program that is most appropriate for each type of load.
-
Page 21: Operating Instructions
User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: • Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. 4.1 Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which... - Page 22 • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion.
- Page 23 User instructions WATER HARDNESS TABLE WATER HARDNESS German French degrees (°dH) Degrees (°dF) 0 - 4 0 - 7 5 - 15 8 - 25 16 - 23 26 - 40 24 - 31 41 - 60 32 - 47 61 - 80 48 - 58 81 - 100...
- Page 24 ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. To add rinse aid: •...
- Page 25 User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically. • When a program with hot prewash is selected (see program table), extra detergent must be placed in the cavity G/H (depending on models).
- Page 26 The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.
- Page 27 User instructions WARNING! • Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle. • Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump.
- Page 28 User instructions 4.4 Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
- Page 29 User instructions LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them. Loading examples: CUTLERY BASKET The basket has removable top grids into which items of cutlery can be...
- Page 30 User instructions UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
- Page 31 User instructions Depending on the models, the basket may be equipped with some or all of the following accessories: Supports for cups or long objects (ladles, spoons…), on the left; can be tipped to the vertical position when not in use. Long-stemmed glass holder, on the left;...
- Page 32 ADJUSTING THE UPPER BASKET The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket. The adjustment procedure may be type A or B, depending on the dishwasher model purchased. Version A: pull-out with adjustment in two positions.
-
Page 33: Cleaning And Maintenance
User instructions 5. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device. 5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. - Page 34 CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...
- Page 35 User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. •...
- Page 36 If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
-
Page 37: Troubleshooting
6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT User instructions DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks. - Page 38 FAULT Light off If an alarm occurs the appliance interrupts the program in progress and signals a fault. • Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program immediately. • The E5, E6 alarms interrupts the running program once the cause is resolved, it will bring bach the execution of the program.
- Page 39 TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height (depending on models) Capacity Water supply pressure Electrical characteristics User instructions 597 ÷ 599 mm 550 mm Free standing: from 850 mm to 890 mm from 890 mm to 930 mm Semi-integrated: from 820 mm to 890 mm 12 Standard place settings...
- Page 40 Allineare al bordo superiore del pannello porta. Align with the top edge of the door panel. Aligner au bord supérieur du panneau de la porte. Mit der Oberkante der Dekorplatte fluchten. ATTENZIONE: Quota Alinhar com o rebordo superior do painel da porta. ACHTUNG: Maß...
