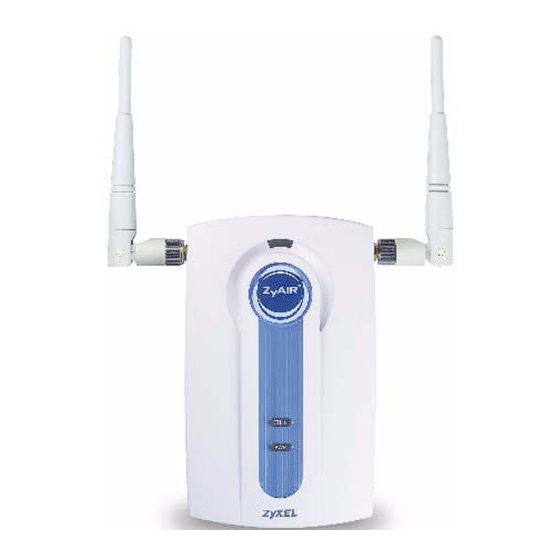

ZyXEL Communications G-1000 V2 Quick Start Manual

Wireless-11g access point
Hide thumbs Also See for G-1000 V2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

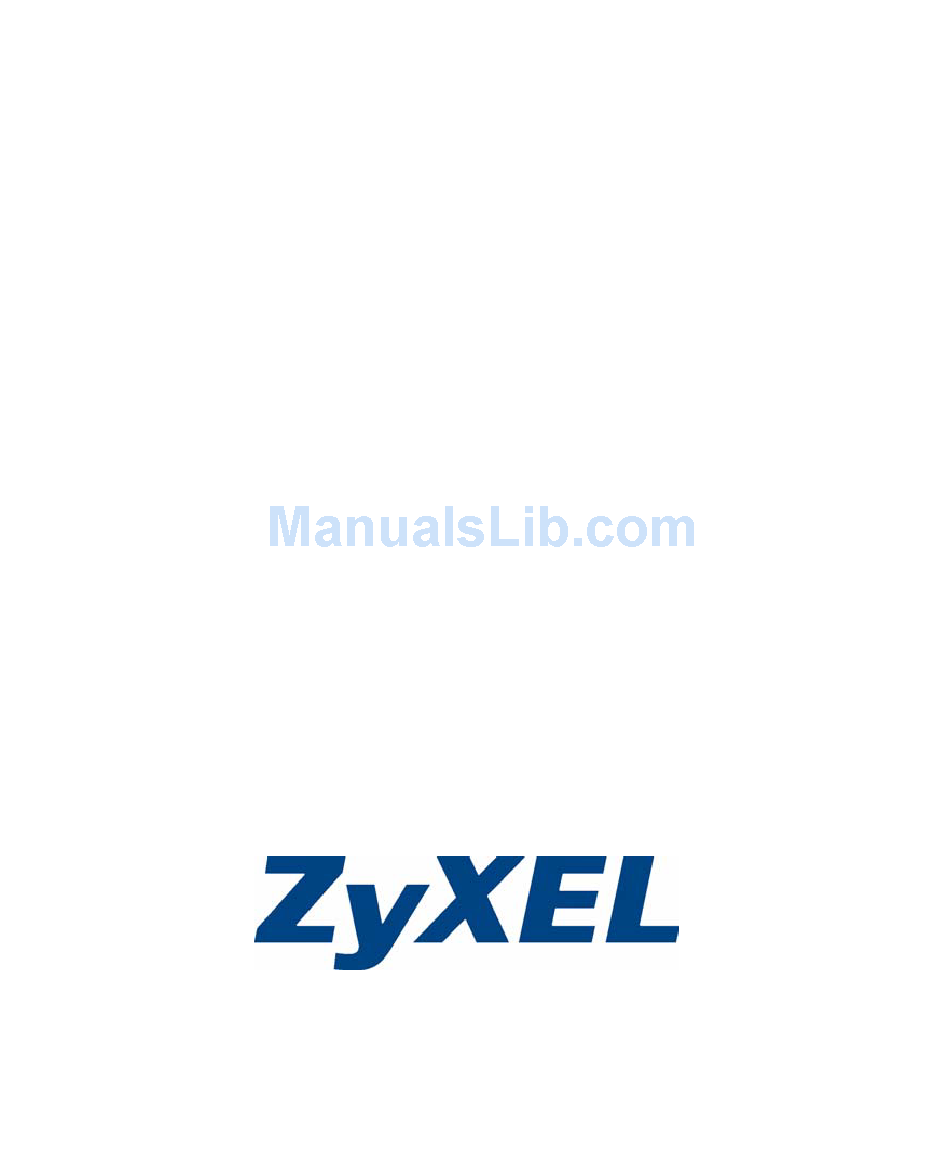

ZyXEL G-1000 v2
Wireless-11g Access Point

Quick Start Guide

Version 3.6
Edition 1
2/2006

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications G-1000 V2

Summary of Contents for ZyXEL Communications G-1000 V2

  • Page 1: Quick Start Guide

    ZyXEL G-1000 v2 Wireless-11g Access Point Quick Start Guide Version 3.6 Edition 1 2/2006...

  • Page 2: Hardware Installation

    1 Hardware Installation Follow the steps below to connect the supplied antennas. 1 Locate the antenna connectors on the sides of your G-1000 v2. 2 Screw the antennas clockwise onto the antenna connectors. The antennas should be perpendicular to the ground and parallel to each other.

  • Page 3: Accessing The Web Configurator

    3 Accessing the Web Configurator. The default IP address of the G-1000 v2 is 192.168.1.2. Before directly entering the G-1000 v2 IP address into your web browser, you must make sure that your computer and the G-1000 v2 are in the same subnet. This section shows you how to set your Windows NT/2000/XP computer to have an IP address in the same subnet as the G- 1000 v2.

  • Page 4: Web Configurator: Login

    (the General tab in Windows XP). 6 Select Use the following IP address and enter an IP address from 192.168.1.1 to 192.168.1.254 excluding 192.168.1.2 (the G-1000 v2) and any other IP addresses in the range already being used by a device on your network.

  • Page 5: Wizard Setup

    5 Wizard Setup The wizard is divided into three parts. Follow the directions in the wizard to setup: • System information • Wireless LAN • IP address assignment 1 Click Next to begin the wizard. ZyXEL G-1000 v2 Quick Start Guide...
  • Page 6 3 Use the second wizard screen to set up the wireless LAN. Name(SSID) is a unique name to identify the G-1000 v2 in a wireless LAN. Enter a descriptive name. The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a channel.
  • Page 7 Note: If you do not enable any wireless security on your G-1000 v2, your network is accessible to any wireless networking device that is within range. 4 If you chose Basic(WEP) security in the previous screen to setup WEP encryption parameters:...
  • Page 8 IP address or typing “http://zyxelXXXX” (where XXXX are the last four digits of your devices MAC address) in your browser. The MAC address can be found on the back label of your G-1000 v2. ZyXEL G-1000 v2 Quick Start Guide...

  • Page 9: Hardware Mounting

    2 Connect an Ethernet cable from your G-1000 v2 to a LAN port on your router, switch or hub. 3 Connect the power adaptor to your G-1000 v2 and plug the power adaptor in to the power outlet. The PWR, SYS, ETHN and ZyAIR lights should light up.
  • Page 10 ZyXEL G-1000 v2 Quick Start Guide 4 Align the holes on the back of the G-1000 v2 with the screws on the wall. Hang the G-1000 v2 on the screws.

  • Page 11: Troubleshooting

    Viewing Your Product’s Certifications 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page. ZyXEL G-1000 v2 Quick Start Guide...
