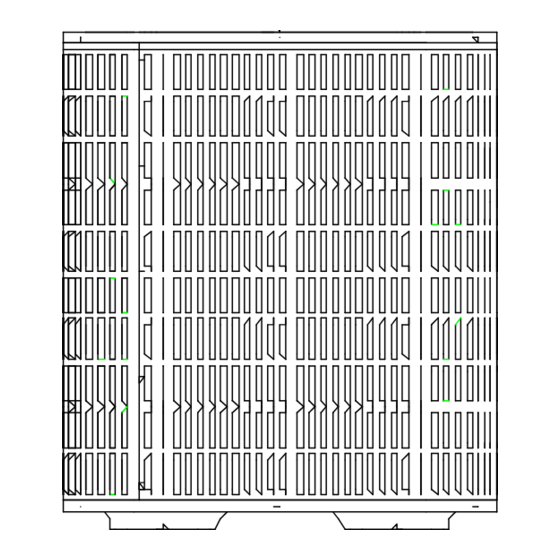

DX11TA SERIES
CONDENSING UNIT
AIR CONDITIONING
INSTALLATION & SERVICE REFERENCE
Important Safety Instructions
The following symbols and labels are used throughout this
manual to indicate immediate or potential safety hazards. It is
the owner's and installer's responsibility to read and comply with
all safety information and instructions accompanying these sym-
bols. Failure to heed safety information increases the risk of
personal injury, property damage, and/or product damage.
HIGH VOLTAGE!
Disconnect ALL power before servicing. Multiple
power sources may be present. Failure to do so may
cause property damage, personal injury or death.
Only personnel that have been trained to install, adjust, service or
(hereinafter, "service") the equipment specified in this
repair
manual should service the equipment. The manufacturer will not
be responsible for any injury or property damage arising from
improper service or service procedures. If you service this unit,
you assume responsibility for any injury or property damage which
may result. In addition, in jurisdictions that require one or more
licenses to service the equipment specified in this manual, only
licensed personnel should service the equipment. Improper
installation, adjustment, servicing or repair of the equipment
specified in this manual, or attempting to install, adjust, service or
repair the equipment specified in this manual without proper
training may result in product damage, property damage, personal
injury or death.
Shipping Inspection
Always keep the unit upright; laying the unit on its side or top
may cause equipment damage. Shipping damage, and subsequent
investigation is the responsibility of the carrier. Verify the model
number, specifications, electrical characteristics, and accesso-
ries are correct prior to installation. The distributor or manufac-
turer will not accept claims from dealers for transportation dam-
age or installation of incorrectly shipped units.
IOD-4031
4/2018
Our continuing commitment to quality products may mean a change in specifications without notice.
© 2018
5151 San Felipe St., Suite 500, Houston, TX 77056
www.daikinac.com
INSTALLATION INSTRUCTIONS
Codes & Regulations
This product is designed and manufactured to comply with na-
tional codes. Installation in accordance with such codes and/or
prevailing local codes/regulations is the responsibility of the in-
staller. The manufacturer assumes no responsibility for equip-
ment installed in violation of any codes or regulations. Rated
performance is achieved after 20 hours of operation. Rated per-
formance is delivered at the specified airflow. See outdoor unit
specification sheet for split system models or product specifica-
tion sheet for packaged and light commercial models. Specifica-
tion sheets can be found at
products. Within the website, please select the residential or com-
mercial products menu and then select the submenu for the type
of product to be installed, such as air conditioners or heat pumps,
to access a list of product pages that each contain links to that
model's specification sheet.
The United States Environmental Protection Agency (EPA) has
issued various regulations regarding the introduction and dis-
posal of refrigerants. Failure to follow these regulations may
harm the environment and can lead to the imposition of sub-
stantial fines. Should you have any questions please contact the
local office of the EPA.
If replacing a condensing unit or air handler, the system must be
manufacturer approved and Air Conditioning, Heating, and Re-
frigeration Institute (AHRI) matched. NOTE: Installation of un-
matched systems is strongly discouraged.
Refer to the unit Specification Sheet for the recommended in-
door model selection. NOTE: This unit must be used with a pur-
chased two stage room thermostat with 24 VAC control circuitry.
Outdoor units are approved for operation above 55°F in cooling
mode. Operation below 55°F requires the use of an approved
low ambient kit.
Damage to the unit caused by operating the unit in a structure
that is not complete (either as part of new construction or reno-
vation) is not covered under the warranty.
Installation Clearances
This unit is designed for outdoor installations only. Special con-
sideration must be given to location of the condensing unit(s) in
regard to structures, obstructions, other units, and any/all other
factors that may interfere with air circulation. Where possible,
the top of the unit should be completely unobstructed; how-
ever, if vertical conditions require placement beneath an obstruc-
tion there should be a minimum of 60 inches between the top
of the unit and the obstruction(s). The specified dimensions meet
requirements for air circulation only. Consult all appropriate regu-
latory codes prior to determining final clearances.
www.daikinac.com
for Daikin brand
Advertisement
Table of Contents
Related Manuals for Daikin DX11TA Series
Summary of Contents for Daikin DX11TA Series
- Page 1 INSTALLATION INSTRUCTIONS DX11TA SERIES Codes & Regulations This product is designed and manufactured to comply with na- CONDENSING UNIT tional codes. Installation in accordance with such codes and/or prevailing local codes/regulations is the responsibility of the in- AIR CONDITIONING staller. The manufacturer assumes no responsibility for equip- INSTALLATION &...
-
Page 2: Rooftop Installations
Another important consideration in selecting a location for the unit(s) is the angle to obstructions. Either side adjacent the valves can be placed toward the structure provided the side away from the structure maintains minimum service clearance. Corner in- stallations are strongly discouraged. 12"... - Page 3 4. Refer to the cased coils installation instructions to finish the tubing connections to cased coils. To avoid possible explosion, use only returnable (not disposable) service cylinders when removing refrigerant from a system. • Ensure the cylinder is free of damage which could lead to a leak or explosion.
-
Page 4: Refrigerant Line Connections
Refrigerant Line Connections IMPORTANT: To avoid overheating the service valve, TXV valve, or filter drier while brazing, wrap the component with a wet rag, or use a thermal heat trap compound as recommended by the compound manufacturer. Use a brazing alloy of 2% minimum silver content. -
Page 5: Overcurrent Protection
Example: A 7 ½ Ton unit is to be installed. The distance from the To avoid the risk of fire or equipment damage, use copper building to the unit is 75’. Calculate the minimum wire size conductors. assuming no more than 2% voltage drop. NOTICE MCA for 7 ½... -
Page 6: Troubleshooting
Verify proper rotation for three phase compressors by ensuring CAUTION the suction pressure drops and discharge pressure rises when the compressor is energized. NOTE: When operated in reverse, a three phase scroll compressors is noisier and its current draw substantially reduced compared to marked values. To correct, disconnect power and switch any two leads at the NOTICE unit contactor and re-observe. - Page 7 TROUBLESHOOTING ANALYSIS TABLE COMPLAINT PROBABLE CAUSE REMEDY 1. Excessive charge of refrigerant in system. 1. Purge or pump-down excessive charge. 2. Inadequate s upply of air across the 2. Make certain that coil is not fouled in any 1. High Head Pressure condenser coil.
-
Page 8: Wiring Diagram
Wiring Diagram Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
