Daikin DX13SA0181A Series Manual

Up to 14.5 SEER
1½ TO 5 TONS
■
Standard Features
• Single-speed PSC condenser fan motor
• Energy-efficient scroll compressor
• High-density foam
compressor sound blanket
• Advanced Copeland®
CoreSense™ technology
• Factory-installed filter drier
• Copper tube / enhanced aluminum fin coil
• Sweat connection service valves
with easy access to gauge ports
• Contactor with lug connection
• AHRI Certified; ETL Listed
SS-DX13SA

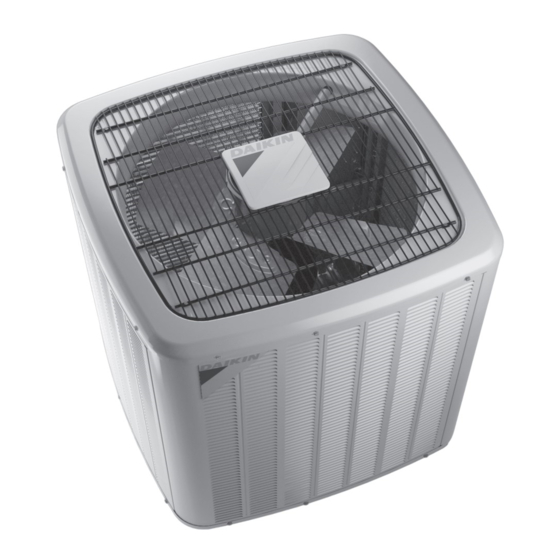

Split System Air Conditioner
■
Cabinet Features
• Heavy-gauge, galvanized-steel cabinet
with grille-style sound control top
• Custom Nickel Gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2017 Florida
Building Code unit integrity requirements for hurri-
cane-type winds (Anchor bracket kits available.)
* Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the 6-Year Unit
Replacement Limited Warranty and 12-Year Parts Limited Warranty, online registration must be completed within
60 days of installation. Additional requirements for annual maintenance are required for the Unit Replacement Limited
Warranty. Online registration and some of the additional requirements are not required in California or Quebec.
www.daikincomfort.com
DX13SA
Energy-Efficient
■
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Expanded Cooling Data ......................... 4
AHRI Ratings (see note) ....................... 20
Wiring Diagram ................................... 21
Dimensions .......................................... 22
Accessories .......................................... 22
09/20
Supersedes 07/20
